Ford Transit Products

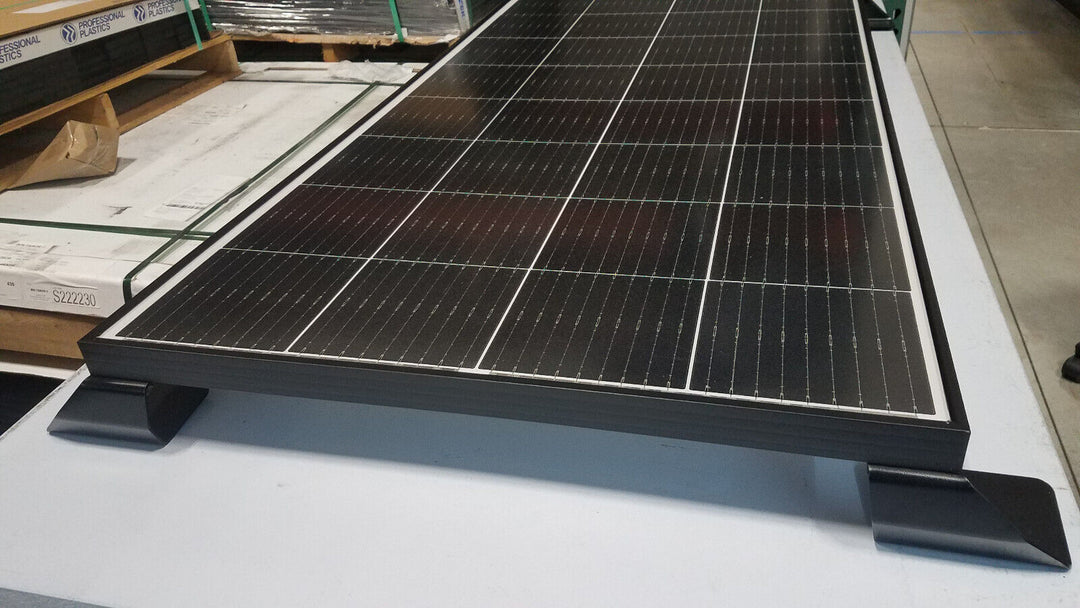

Formed aluminum towers for directly mounting specifically sized solar panels to front and rear positions on Ford Transit vans. No crossbars or other framing needed.
Use solar panel approximately 58.3 x 26.2 like Rich Solar 200 watt model. Other panels with similar dimensions will also work.
Front position utilizes OEM (factory) roof attachment points 1 and 2 (from front) which are present on all length Transit vans (130,148 and 148 extended). Rear position utilizes OEM roof attachment points 3 and 4 which are only available on 148 regular and extended vans. See diagram (148 regular length shown)
Design is patent pending.
All hardware is included. Towers are designed for solar panels only. Some fading can occur due to sun exposure. Load on each tower not to exceed 20lbs
If you have questions about this product you can call Hein at 541-49O-5O98
DISCLAIMER
Failure to follow warnings below may allow rack to come loose from vehicle and cause injuryor death.
1. Do not exceed 20 lbs load on each tower.
2. Do not extend any component more than 4" beyond forward or rearward most towers.
3. Do not exceed total allowable load by vehicle manufacturer.
4. Use all available attachment points on van roof.
5. Do not install roof top deck or climb on rack.
6. Check and tighten all hardware after 100 miles and every 500 miles there-after.
7. Check overall integrity of rack every 500 miles or monthly whichever is more frequent.
If in doubt, please submit rack plans or photos for evaluation prior to final installation or use.
Van owner and/or installer assumes all risk associated with roof top mounted items and/or components. Van owner and/or installer recognizes and agrees that this product, and each of its component parts, is sold “as is” and that seller makes no representation or warranty of merchantability that the product is fit for any particular purpose.Van owner and/or installer assumes all risk associated with roof top mounted items and/or components. Van owner and/or installer recognizes and agrees that this product, and each of its component parts, is sold “as is” and that seller makes no representation or warranty of merchantability that the product is fit for any particular purpose.

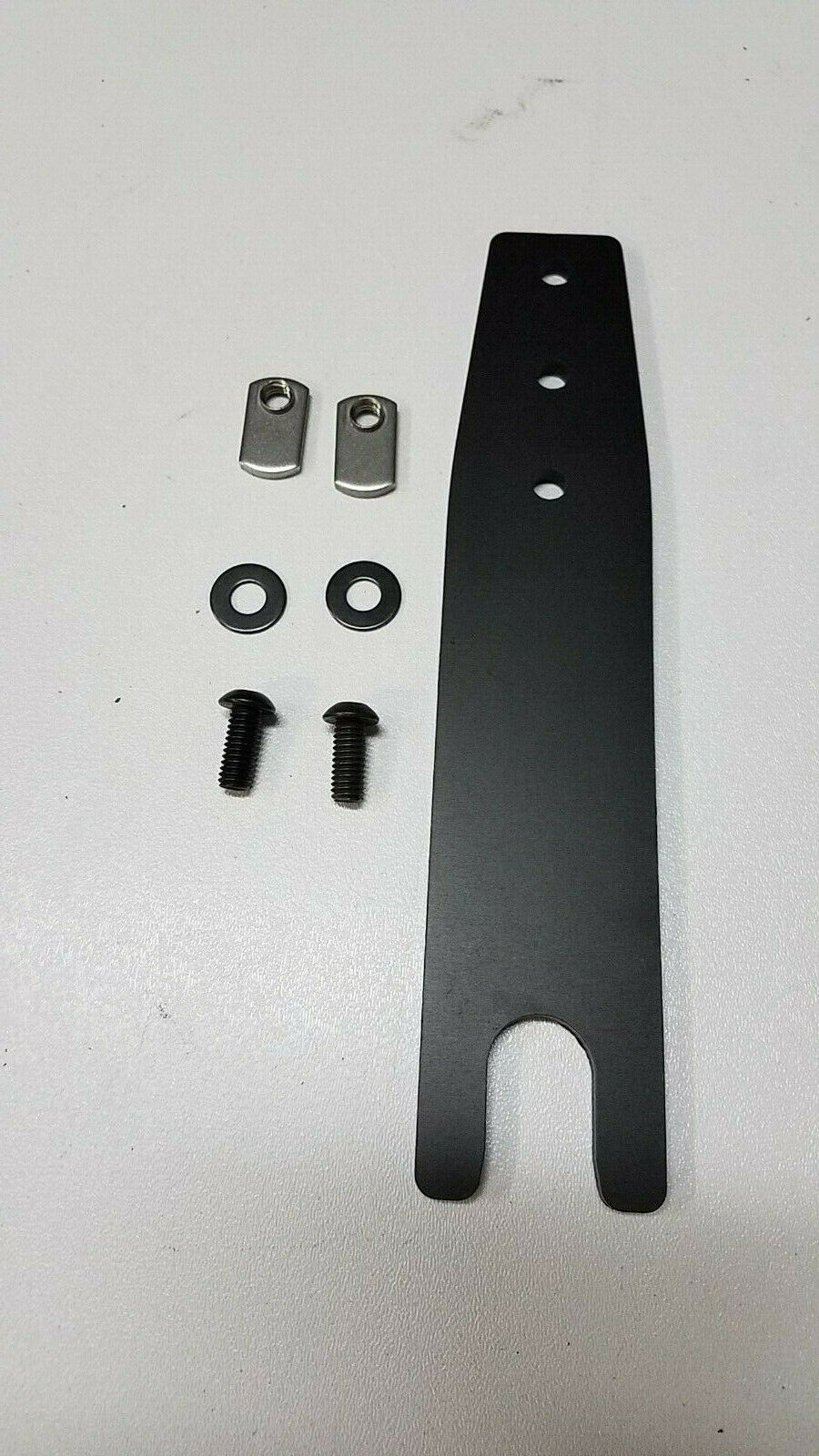

D-Ring lugs for the Ford Transit. Includes hardware.
Made out of aluminum then hard anodized black. Hardware to attach to 8020 included.
8020 bars not included.

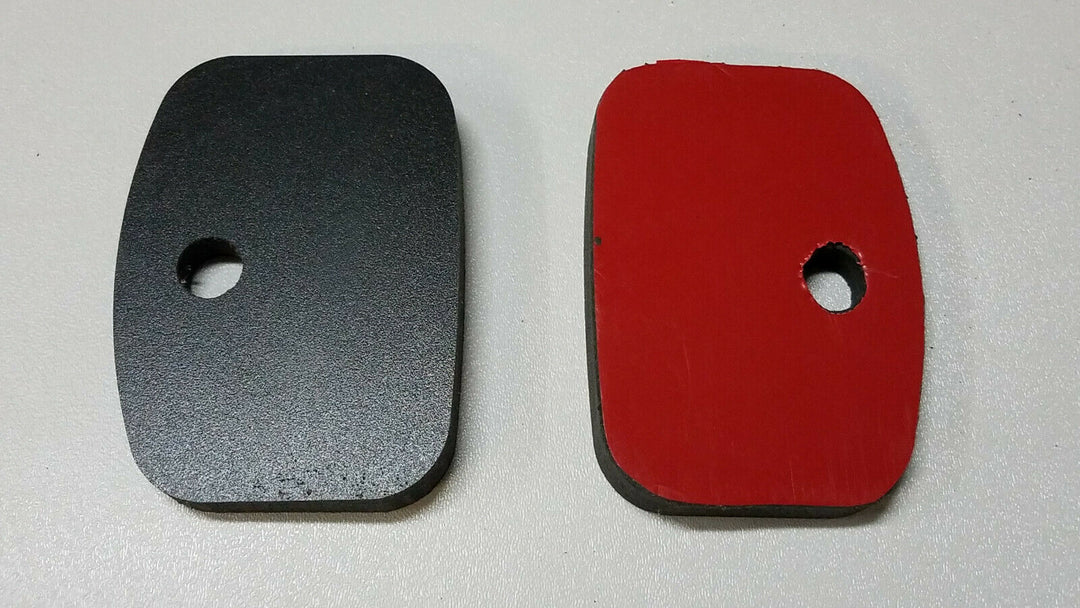

Sold as a pair. The pads come with 3M VHB peel and stick adhesive (more robust, adheres and seals pad to van - more difficult to remove). Do no exceed maximum roof loading as recommended by vehicle. There is a drawing in the images above that will allow you to determine how long the rails need to be for your van. Please call or write for assistance. It is recommended that the rails not extend beyond the front or rear bracket by more than 4".
If you have questions about this product you can call Hein at 541-49O-5O98
WARNING!
Failure to follow warnings below may allow rack to come loose from vehicle and cause injury or death.
- Do not exceed 20 lbs load on each tower.
- Do not extend any component more than 4" beyond forward or rearward most towers.
- Do not exceed total allowable load by vehicle manufacturer.
- Use all available attachment points on van roof.
- Do not install roof top deck or climb on rack.
- Check and tighten all hardware after 100 miles and every 500 miles there-after.
- Check overall integrity of rack every 500 miles or monthly whichever is more frequent.
If in doubt, please submit rack plans or photos for evaluation prior to final installation or use.
Van owner and/or installer assumes all risk associated with roof top mounted items and/or components. Van owner and/or installer recognizes and agrees that this product, and each of its component parts, is sold “as is” and that seller makes no representation or warranty of merchantability that the product is fit for any particular purpose.
Dometic Heki Midi Roof Light. Color of frame and inside shade is off white.
Large Acrylic double-glazed dome light, tinted in grey, can be opened up for ventilation to 45 degree maximum when the vehicle is stationary. Retractable fly screen. Retractable blackout blind. White exterior frame, cream colored inner frame. Manufacture warranty is 1 year.
Specifications:
Assembly on the Roof 24.3" x 33.8"
Cut-out 19.7" x 27.6" (500mm x 700mm)
Weight 17.6 lbs
Operation is Manual Lever
I stock few replacement windows. It is only the plastic tinted cover, Not the inside framing or arms. Part number BG4493, please call to check availability 541 49O 4292.
Disclaimer: Van owner and/or installer assumes all risk associated with roof top mounted items and/or components. Van owner and/or installer recognizes and agrees that this product, and each of its component parts, is sold “as is” and that seller makes no representation or warranty of merchantability that the product is fit for any particular purpose.

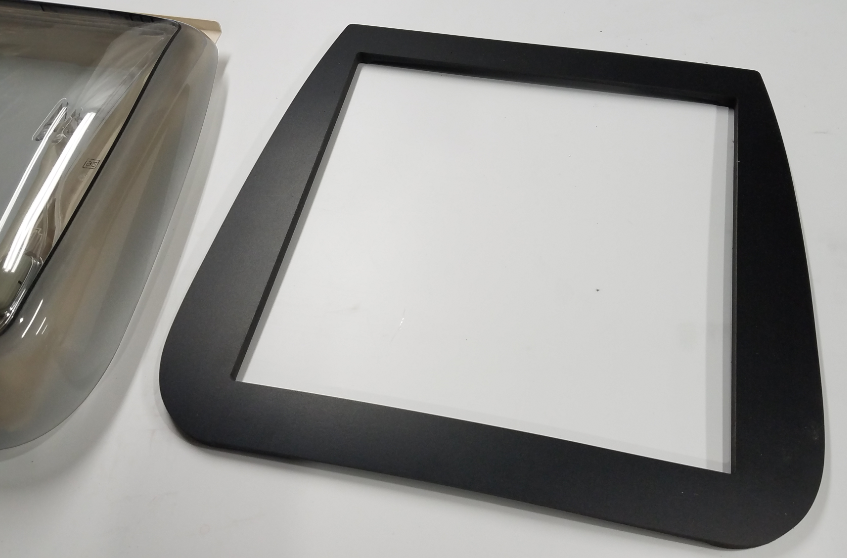

Offset Adapters for the Ford Transit Mid/High Roof, fits a 14" x 14" hole. Please check the hole requirements in the manual.
Pair with our Insulated Vent Fan Cover and Maxxfan Deluxe 7500K or 7000K Electric Lid Opening

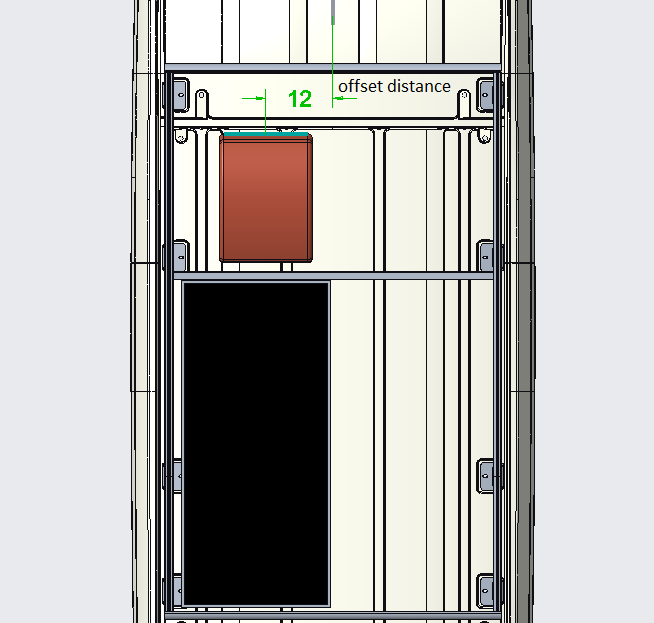

The adapter will work on either the driver side or passenger side of the van. Our measurements are taken from the Center line of the van roof to the center of the 14" x 14" hole.
Patent Pending adapter matches the contour of the OEM roof so a standard RV style vent mounts to a flat surface. Prevents distorting the roof sheet metal or vent flange and can be used as an aid for locating the fan. They are CNC machined out of UV and fire-resistant expanded PVC. The fan mounts to the outside adapter. Fan adapters work with the Maxxfan Deluxe series and the Fan-tastic Vent fans.
CLICK HERE for our Interior Supporting Framing strips.
Fan adapters work with the Maxxfan Deluxe series and the Fan-tastic Vent fans.
The outside adapter will fit anywhere along the cargo part of the roof. Longer screws than came with the vent fan may be needed.
The vent adapter outside dimension is 16 3/4 X 16 3/4. If you are using a Maxxair vent our adapter fits the Maxxfan Deluxe series, other Maxxair vents have a wider flange. You will need a wider adapter. Please call.
Roof Vent Adapter Install Tips
We recommend Sikaflex 221. Locate and cut the 14 x 14 hole. You can use the adapter as a guide to mark the hole. Stay clear of roof support beams.
Make a tape line 1/4" beyond the adapter perimeter.
De-gloss the area with a Scotch-brite pad. No need to scuff, just dull the paint. Clean with isopropyl alcohol and let dry thoroughly. Blow dryer if it's wet and/or cold out.
Apply three 1/8" beads of the Sikaflex on the face of the adapter. Then, press the adapter down onto the roof until the adhesive oozes out the sides. It's not necessary to clamp. If you do, use several lightly set clamps and spread out the clamp force over the whole surface area.
Using the adhesive that oozes out, make a fillet around the adapter with a double gloved finger. Pull the tape within 15 minutes. Cure is fast on outside. Let cure overnight and then proceed with the fan install.
If you purchased our Interior Framing Strips, using the hole that you cut locate where the transverse strips need to be placed on the longitudinal strips. Assemble the interior frame with the 2" screws provided. Once the frame is assembled it will be glued to the interior side of the roof using Sikaflex 221. If the strips ordered are not bay specific, then you may need to cut them to the length of the panel you are installing it in.
We recommend using butyl tape for the fan install. Cover the fan flange with 1" wide tape. Place the flange onto the adapter and press down. Then drill pilot holes through the adapter and into the van roof. You may need the 4 longer screws provided for the corners. Tighten all screws very lightly against the fan flange. Some butyl will ooze out which you can trim off.
Coat the fan flange, adapter and onto the roof about 1/2" with self-leveling Dicor or brush-on Flexseal. Some sealants will melt the fan plastic so you might try it on a portion of the interior bezel first. You will cut a lot of that piece off.
Good idea to check the integrity and reapply the sealant every so often.
**Please note, if you purchased butyl tape with this order and the butyl tape is stuck to the plastic, place it in the freezer for 15 or 20 min. It will release, then let it return to room temperature.
Disclaimer:
Van owner and/or installer assumes all risk associated with roof top mounted items and/or components. Van owner and/or installer recognizes and agrees that this product, and each of its component parts, is sold “as is” and that seller makes no representation or warranty of merchantability that the product is fit for any particular purpose.

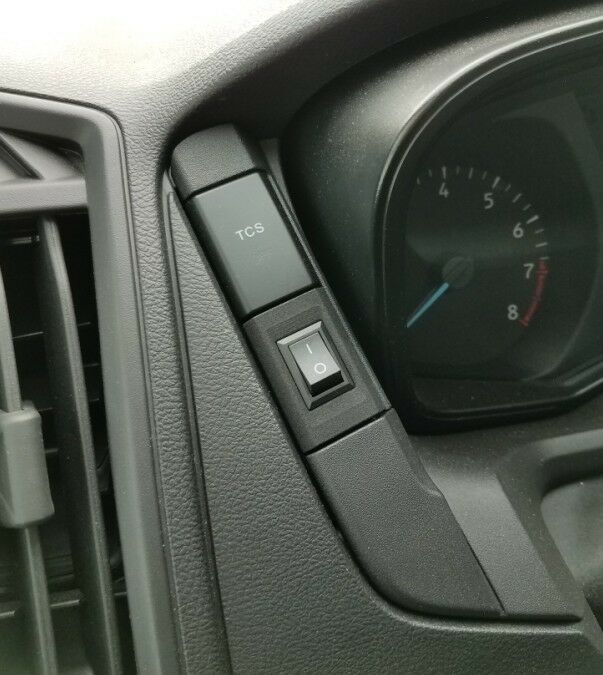

***Prewired Bezel plate or prewired seperate control plate comes with the speed controller w/ reversing switch, do not order it separately. The purchase of the prewired bezel will require a purchase of the LeMans fan with the louvers. We will wire it for you! There is a photo showing what the final product looks like.
Interior closure can be either manually or electrically closed. These vents are different from typical RV vents in that the air closure is on inside. Unique design of fan surround and cowl keeps moisture out. Interior closure is 11.41" diameter and 3/4" thick.
These vents do not include a plenum to bridge the gap (space) between inside of roof and top of ceiling panel. AC foam seal can be used to do this.
Foam seal: https://amzn.to/3DKwPJb
Weight is 4lbs 7oz.
We produce patent pending mounting adapters to fit contour of van roof. They are not included unless you select it "with adapter". Please make note of van make, year and model in notes at purchase. We will contact you to verify position. We highly recommend using our adapter to mount this vent.
Please call Hein 541 49O 5O98 if you have any questions about this product.
DISCLAIMER: Van owner and/or installer assumes all risk associated with roof top mounted items and/or components. Van owner and/or installer recognizes and agrees that this product, and each of its component parts, is sold "as is" and that seller makes no representation or warranty of merchantability that the product is fit for any particular purpose.
We offer hardware to attach the panels to the rails, available to purchase separately. Rail clips with spacers.
Failure to follow warnings below may allow rack to come loose from vehicle and cause injury
or death.
1. Do not exceed total allowable load by vehicle manufacturer.
2. Use all available attachment points on van roof.
3. Do not install roof top deck or climb on rack.
4. Check and tighten all hardware after 100 miles and every 500 miles there-after.
5. Check overall integrity of rack every 500 miles or monthly whichever is more frequent.
If in doubt, please submit rack plans or photos for evaluation prior to final installation or use.
Van owner and/or installer assumes all risk associated with roof top mounted items and/or components. Van owner and/or installer recognizes and agrees that this product, and each of its component parts, is sold as is and that seller makes no representation or warranty of merchantability that the product is fit for any particular purpose.

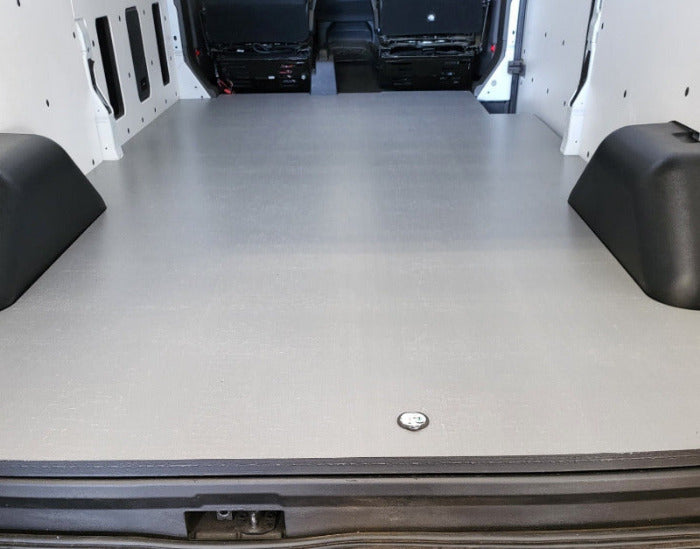

One piece composite flooring. We offer the floor with or without the machined Minicell. We will need to know if you have a dually or not.
We also have an option to add our step well storage. The floor will be machined over the top of them. If you would like us to install the floor and the step well there will be a labor cost of $270.00 due at time of pick up. This can take 1 to 2 hours.
Composite is .44" thick and minicell is .75" thick.
FOR PICKUP ONLY!
Text Hein at 541-490-5098 for details, estimated time and pick up.
* Black Anodizing may fade over time due to sun exposure.

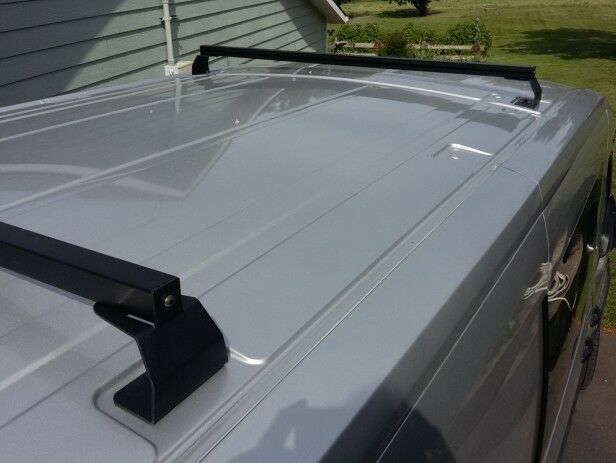

Towers come with hardware to attach to the van. Additional hardware to attach the platform may be required. The towers have rubber pads to seal the roof holes and protect the van finish. Easy to install with hand tools.
If you have questions about this product you can call Hein at 541-49O-5O98
Van owner and/or installer assumes all risk associated with roof top mounted items and/or components. Van owner and/or installer recognizes and agrees that this product, and each of its component parts, is sold ?as is? and that seller makes no representation or warranty of merchantability that the product is fit for any particular purpose.
Please contact Hein at 541 49O 5O98 if you have questions.
We are honored to help you with your van build.
