Best Selling Products
BATTERY BOX MUST BE PAINTED IF NOT POWDER COATED. Wash the tray with soapy water, dry, then paint the tray before installing. Rustoleum truck bed coating spray or equivalent.
Batteries not included.
Copy and paste for installation help with the 2500 http://www.impact3d.com/170_2500_midship_tray.htm
Van owner and/or installer assumes all risk associated with roof top mounted items and/or components. Van owner and/or installer recognizes and agrees that this product, and each of its component parts, is sold "as is" and that seller makes no representation or warranty of merchantability that the product is fit for any particular purpose.
Pair with our Insulated Vent Fan Cover and Maxxair Mini Vent Non Powered
This fits a 14" x 14" opening. The adapters in the listing are centered on the roof line. If you need an offset adapter please fill out our form.
Click here for our custom adapter inquiry form.
Patent Pending adapter matches the contour of the OEM roof so a standard RV style vent mounts to a flat surface. Prevents distorting the roof sheet metal or vent flange and can be used as an aid for locating the fan. They are CNC machined out of UV and fire resistant expanded PVC. The fan mounts to the outside adapter. Fan adapters works with the Maxxair Mini Vent Non Powered Fan.
We make adapters to fit air conditioners and adapters for offset locations. Please contact us so we can verify size and location.
Roof Vent Adapter Install TipsWe recommend Sikaflex 221. Locate and cut the 14 x 14 hole. You can use the adapter as a guide to mark the hole. Stay clear of roof support beams.
Make a tape line 1/4" beyond the adapter perimeter.
De-gloss the area with a Scotch-brite pad. No need to scuff, just dull the paint. Clean with isopropyl alcohol and let dry thoroughly. Blow dryer if it's wet and/or cold out.
Apply three 1/8" beads of the Sikaflex on the face of the adapter. Then, press the adapter down onto the roof until the adhesive oozes out the sides. It's not necessary to clamp. If you do, use several lightly set clamps and spread out the clamp force over the whole surface area.
Using the adhesive that oozes out, make a fillet around the adapter with a double gloved finger. Pull the tape within 15 minutes. Cure is fast on outside. Let cure overnight and then proceed with the fan install.
If you purchased our Interior Framing Strips, using the hole that you cut locate where the transverse strips need to be placed on the longitudinal strips. Assemble the interior frame with the 2" screws provided. Once the frame is assembled it will be glued to the interior side of the roof using Sikaflex 221. If the strips ordered are not bay specific, then you may need to cut them to the length of the panel you are installing it in.
We recommend using butyl tape for the fan install. Cover the fan flange with 1" wide tape. Place the flange onto the adapter and press down. Then drill pilot holes through the adapter and into the van roof. You may need the 4 longer screws provided for the corners. Tighten all screws very lightly against the fan flange. Some butyl will ooze out which you can trim off.
Coat the fan flange, adapter and onto the roof about 1/2" with self-leveling Dicor or brush-on Flexseal. Some sealants will melt the fan plastic so you might try it on a portion of the interior bezel first. You will cut a lot of that piece off.
Good idea to check the integrity and reapply the sealant every so often.
**Please note, if you purchased butyl tape with this order and the butyl tape is stuck to the plastic, place it in the freezer for 15 or 20 min. It will release, then let it return to room temperature.
If you have questions about this product you can call Hein at 541-49O-5O98
Disclaimer
Van owner and/or installer assumes all risk associated with roof top mounted items and/or components. Van owner and/or installer recognizes and agrees that this product, and each of its component parts, is sold “as is” and that seller makes no representation or warranty of merchantability that the product is fit for any particular purpose.
Patent Pending. Made in the USA! Quantity of 1 will include 2 Tower Brackets and hardware. Cross bars sold separately.
Tower brackets for Promasters, laser cut, CNC formed, clear anodized or black anodized tower bracket kits for using with 8020 15 series crossbars to mount solar panels to OEM roof rails found on Sprinter and other vans. Included the attachments.
* Black Anodizing may fade over time due to sun exposure.
These brackets are compatible with the Fiamma Awning. The distance between our Towers is 52.5"
Crossbars can be found here: https://www.ebay.com/itm/144323850607
Do not exceed 20 lbs load per tower. Not intended as a rack for hauling large or heavy items. Do not exceed total roof top weight allowed by vehicle manufacturer. Please contact us with any questions about how to use this product.
select 'square' for use with 15 series square profiles
select 'rounded' for use with 1517 rounded profile
select 'extended' if the crossbar needs to extend beyond the tower. Compatible with both rounded and square profiles. This version does not cap the end of the crossbar so separate caps can be purchased with the 80/20. Maximum extension beyond tower not to exceed 6". Not suitable for mounting heavy awnings not otherwise supported.
Please take a look at our support tabs for mounting solar panels to the cross bars, https://www.ebay.com/itm/141878685652
DISCLAIMER
Failure to follow warnings below may allow rack to
come loose from vehicle and cause injury or death.
If in doubt, please submit rack plans or photos for
evaluation prior to final installation or use.
Van owner and/or installer assumes all risk associated
with roof top mounted items and/or components.
Van owner and/or installer recognizes and agrees that
this product, and each of its component parts, is sold
“as is” and that seller makes no representation or
warranty of merchantability that the product is fit for
any particular purpose.
IMPORTANT SAFETY WARNINGS:
* Do not exceed 20 lbs load on each tower.
* Tower spacing down length of roof not to exceed 30"
* Do not allow solar panels to overhang side of roof.
* Do not extend any component more than 4" beyond forward
or rearward most towers.
* Do not extend crossbar more than 4" beyond slot in tower
* Do not exceed total allowable load by vehicle manufacturer.
* Use all available attachment points on van roof.
* Do not install roof top deck or climb on rack.
* Check and tighten all hardware after 100 miles
and every 500 miles there-after.
* Check overall integrity of rack every 500 miles
or monthly whichever is more frequent.
Assembly:
* Refer to diagram.
* Use all parts and hardware.
* Tab that bridges or passes through slot in tower
must be used. DO NOT OMIT TAB
* Torque 5/16-18 hardware to 8 ft-lbs
* Use Loctite blue on any connection without toplock nut.
Cover for OEM rear heat. Formed powder coated aluminum panel with expanded PVC plastic sides. Comes with edge guard so it won't rattle. Cleat needs to be attached to floor so bottom can be attached to cleat with screws. This is currently a high lead time item. Can take up to 4 weeks before shipment.
DISCLAIMER:
Van owner and/or installer recognizes and agrees that this product, and each of its component parts, is sold “as is” and that seller makes no representation or warranty of merchantability that the product is fit for any particular purpose
Van owner and/or installer assumes all risk associated with roof top mounted items and/or components. Van owner and/or installer recognizes and agrees that this product, and each of its component parts, is sold ?as is? and that seller makes no representation or warranty of merchantability that the product is fit for any particular purpose.
If you have questions about this product you can call Hein at 541-49O-5O98
DISCLAIMER:
Van owner and/or installer assumes all risk associated with roof top mounted items and/or components. Van owner and/or installer recognizes and agrees that this product, and each of its component parts, is sold "as is" and that seller makes no representation or warranty of merchantability that the product is fit for any particular purpose.
Please let us know which battery you are using by leaving a message on your order.
Van owner and/or installer recognizes and agrees that this product, and each of its component parts, is sold "as is" and that seller makes no representation or warranty of merchantability that the product is fit for any particular purpose.
-
Roof vent with fan moves air in and out of your RV, camper, or enclosed trailer
- Vent allows air to circulate while your RV remains locked and secure
-
Integrated rain shield prevents rainwater from entering your RV or trailer
- Allows you to open the vent and operate the fan in any weather
- Eliminates the need to install a separate vent cover
-
12V DC, variable-speed fan has 2 modes of operation
- In manual mode, 10 speed options let you increase or reduce airflow
- In auto mode, fan turns on and off based on preset temperature of thermostat
-
Reversible fan can either bring air in or exhaust air out
- Circulates air like a ceiling fan when the vent is closed
- Flush-mounted keypad on vent lets you to set the thermostat and the fan speed and direction
-
Smoke or White dome (or lid) is made of high-density polyethylene
- Seamless, low-profile appearance when closed
-
Manual lift design has 2 arms to support the dome and keep it open
- Manual knob lets you operate dome
- Bug screen keeps insects out and is easy to remove for cleaning or maintenance
- Fuse-protected, ball bearing motor is sealed to keep out dust, dirt, and moisture
- Rubber weather seal helps prevent leaks when vent is closed
-
Mounting flange is constructed of UV-resistant ABS plastic
- Smooth edges won't cut you during installation
-
White interior trim piece (or garnish), insulated electrical connectors, and hardware are included for installation
- Roof sealant sold separately
-
2-Wire design
- Black wire is power
- White wire is ground
See our vent adapters to make installing the fan easier.
Van owner and/or installer assumes all risk associated with roof top mounted items and/or components. Van owner and/or installer recognizes and agrees that this product, and each of its component parts, is sold “as is” and that seller makes no representation or warranty of merchantability that the product is fit for any particular purpose.
Van owner and/or installer assumes all risk associated with roof top mounted items and/or components. Van owner and/or installer recognizes and agrees that this product, and each of its component parts, is sold ?as is? and that seller makes no representation or warranty of merchantability that the product is fit for any particular purpose.
Van owner and/or installer assumes all risk associated with roof top mounted items and/or components. Van owner and/or installer recognizes and agrees that this product, and each of its component parts, is sold ?as is? and that seller makes no representation or warranty of merchantability that the product is fit for any particular purpose.
Roof fan 12 Volt Winglet
This electric fan from G&C ensures a healthy discharge of air in your automobile.
This roof fan only extracts!
The roof fan is made of ABS. The voltage is 12 Volts and the consumption is 3 Watts.
The noise level is 32 DB. The airflow is 65 M³/H. The fan comes standard with an interior grill, shutter and saw template.
By using the 2-way switch you can turn this fan on and off, not included.
The opening in the roof is 80 mm. Construction height is 64 mm.
The fan is available in black.
* material: high quality ABS
* Function: extract air
* Opening in roof: 80 mm
* Construction height: 64 mm
* air displacement: 65 M³ per hour
Van owner and/or installer assumes all risk associated with roof top mounted items and/or components. Van owner and/or installer recognizes and agrees that this product, and each of its component parts, is sold ?as is? and that seller makes no representation or warranty of merchantability that the product is fit for any particular purpose.

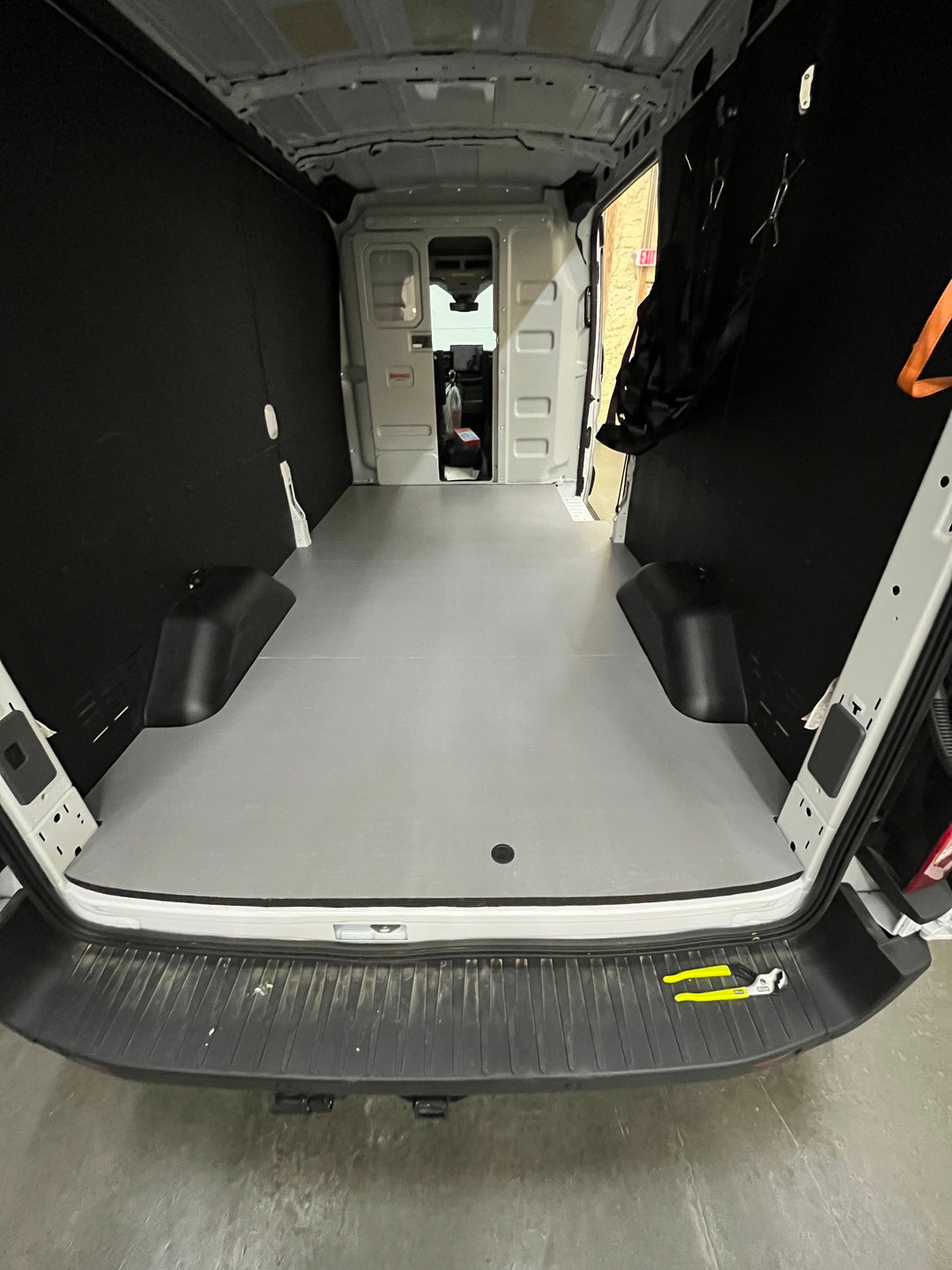

Lower Wall Panels for Ford Transit 148 regular length. Fits High, Mid and Low roof vans. See separate listings for 130 short wheel base or extended van.
Wall panels are precision CNC machined based OEM CAD data. Automotive grade standard removable push pins are included to attach the panels to OEM holes. No drilling or screws or new holes required. Panels can be removed for service. Surface of panel is counter-bored for head of push pin which greatly improves appearance. Very much an OEM look. The push pins are black but could be DIY painted to match panel colors.
Plastic lower wall panels are a great easy install option for your build. Then finish out with your preferred look on the upper panels and headliner. Expanded PVC (Celtec) is light but a bit more prone to scratching. Kydex panels offer maximum durability. Individual panels can be replaced if needed. Longer push pins or alternate attachment method would be needed if upholstery is applied.
Panels are all solid. We can cut openings for our wall insert boxes and sub panels in the forward driver's side panel. Please reach out so we can coordinate which openings are needed. These options are not listed.
Wall Insert Panel with Built in Box
Also available for local pickup. Please call Kim to arrange prior to ordering. 541-49O-4292
If you have questions about this product you can call or text (preferred) Hein at 541-49O-5O98
DISCLAIMER: Van owner and/or installer assumes all risk associated with roof top mounted items and/or components. Van owner and/or installer recognizes and agrees that this product, and each of its component parts, is sold “as is” and that seller makes no representation or warranty of merchantability that the product is fit for any particular purpose.
Shop our Patent Pending AC roof adapters to make the install easier. Sprinter, Transit, Promaster.
Typically ships within 3-4 business days and can take another 5-7 days to arrive via truck freight.
**For LTL Freight deliveries, please inspect the entire package and product before the driver leaves. If you find damage, take pictures and make sure the driver notes the damage on the BOL. If damage is found after the driver leaves, we have no recourse with the carrier, and thus, no path to a credit.**
The Plein-Aircon is an innovative rooftop mounted air conditioning system for RVs and vans. This Indel B rooftop-mounted AC features ground-breaking technology, that makes the air conditioning unit convenient, efficient, powerful, and reliable. The Indel B Plein provides 4100 BTU (1200W) of cooling.
With a built-in power supply, you can use the Plein-Aircon even while stopped, without having to idle the engine. Thanks to the Smart Switch built into the power supply, the Plein can be powered by both 12V DC and 115V AC power.
The cutting-edge 12V Samsung compressor works nearly silently, while using as low as 16 Amps per hour. It reliably cools and dehumidifies the air.
This air conditioning unit comes with multiple comfort features, as well. If you want to schedule the AC to turn on in the morning, or before you go to sleep, you can take advantage of the timer, which lets you schedule ON and OFF times down to the minute. Controlling the Plein-Aircon is made easy and intuitive with the included remote control. Set the temperature, blower speed, and fan mode from anywhere in your cabin.
Technical Specifications of the Indel B Plein-Aircon:
Input Voltage |
12V DC (115-230V AC) |
Maximum Power |
4100 BTU (1.2 KW) |
Power Consumption |
16-42 A/h |
Coolant Type |
R134a |
Fan Operating Modes |
3 speeds + auto mode |
Weight |
55.8 lbs (25.3 kg) |
External Dimensions |
9.7 x 26.4 x 31.5 in (246.4 x 670.5 x 800 mm) |
Internal Dimensions |
2 x 21 x 23.6 in (50.8 x 533.4 x 600 mm) |
Roof cut-out Dimensions |
15.8 x 15.8 in (401 x 401 mm) |
Suitable Roof Thickness |
from 1.2 to 2.75 in (30.5-70 mm) |
Disclaimer: Van owner and/or installer assumes all risk associated with roof top mounted items and/or components. Van owner and/or installer recognizes and agrees that this product, and each of its component parts, is sold “as is” and that seller makes no representation or warranty of merchantability that the product is fit for any particular purpose.
DISCLAIMER
