Panels for Doors, Walls & More
These panels fit in the upper part of the door on all 2007 to present highroof Sprinter vans. They are available in fine textured white, black, or grey Celtec which is a durable PVC based plastic composite board. Thickness is ~1/4" (6mm). The panels mount to the door with black plastic automotive style push pins included. No tools are required. The pins are very secure and won't allow the panel to come out or rattle. The panel is available with or without the small storage pocket shown. The opening of the storage pocket is 11 x 2 5/8" and is 1 1/2" above the bottom of the box. The inside of the box is 12 1/4 x 4 1/2 x 1.875" deep. It is a convenient space suitable for small items.
Right is passenger side.
Left is driver side.
We also have this panel available with a hole cut out for a speaker in our store.
If you have questions about this product you can call Hein at 541-49O-5O98

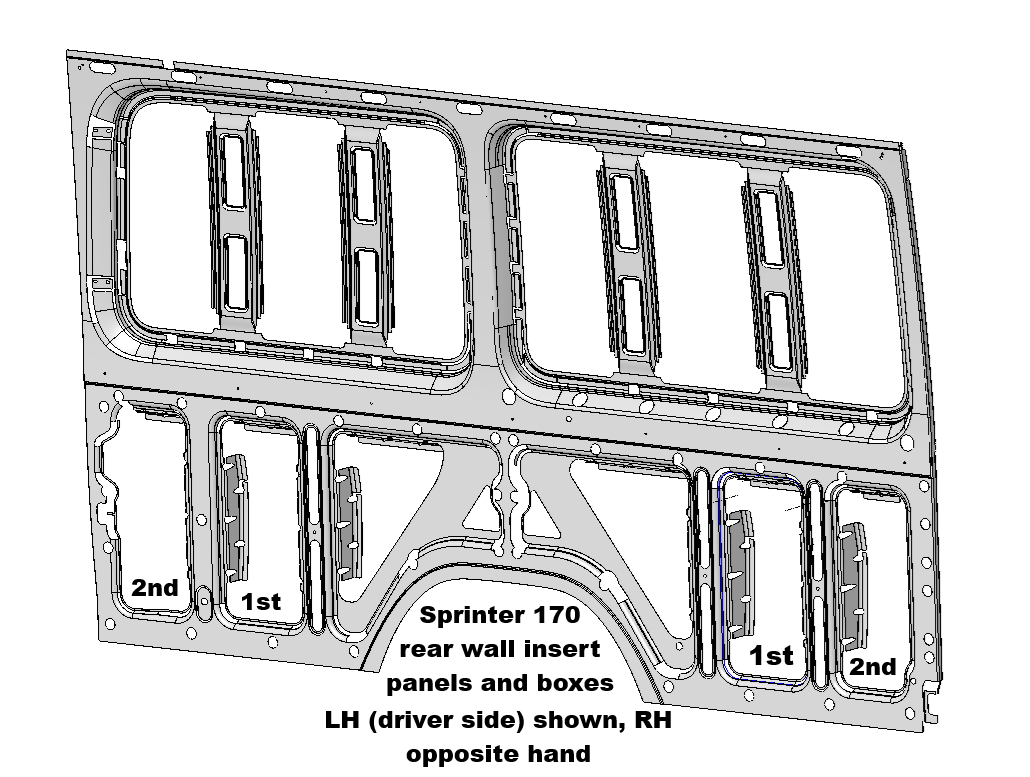

Wall insert mounting panel with built in box. Each item is designed for a precise fit in the lower wall openings behind driver. Attaches by clamping against back side of chassis structure. Does not require holes in sheet metal. The outside surface is flush with the surrounding sheet metal.Material is expanded PVC that does not absorb water. Great for mounting electrical components such as inverters, charge controllers and fuse panels. Cuts easily with traditional wood working tools. Use hole saw to make gauge mounts, holes for wire/cable routing, etc. Holds screws very well and will not conduct electricity.
On the newer van models you may need to move the sensor bracket in the 2nd position.
Forward box
opening size 6.875w x 13h corner radius 1"
box size 7.125w x 13.75h x 3.25 depth
depth is from face of panel. panel is .75 thick
Middle box
opening size 10w x 13h corner radius 1"
box size 10.25w x 13.75h x 3.25 depth
depth is from face of panel. panel is .75 thick
Rear box
opening size 7.5w x 13h corner radius 1"
box size 7.125w x 13.75h x 3.25 depth
depth is from face of panel. panel is .75 thick
Please contact Hein at 541 490 5098 if you have questions.
We are honored to help you with your van build.
Front box 9021713
inside dimensions
height 16" width 11.5" depth 2.75"
opening size
height 15.25 width 11.25" corner radius 1"
Middle box 9021750
inside dimensions
height 16" width 11.45" depth 2.75"
opening size
height 15.25 width 11.2" corner radius 1"
Rear box 9021755
inside dimensions
height 16" width 9" depth 2.75"
opening size
height 15.25 width 8" corner radius 1"
note: depth is from
front face of panel
which is .75 thick
These are great for mounting electronics such as inverters, fuse panels, solar controllers, DC-to-DC chargers, switches, etc. Holes can be cut or drilled into sides of box for cable/wire routing. Thick back panel holds screws well for mounting components. Plastic construction is non conductive for increased electrical safety. There is room for back lighting with LED strip at top inside of box. Fits behind wall panels.
Please contact Hein at 541 49O 5O98 if you have questions.
We are honored to help you with your van build.
Please contact Hein 541 49O 5O98 if you have questions about this product.
Please contact Hein 541 49O 5O98 if you have questions about this product.
Please contact Hein at 541 49O 5O98 if you have questions.
We are honored to help you with your van build.
These panels fit in the upper part of the door on all 2007 to present highroof Sprinter vans. They are available in fine textured white, black, or grey Celtec which is a durable PVC based plastic composite board. Thickness is ~1/4" (6mm).
The panels mount to the door with black plastic automotive style push pins included. No tools are required. The pins are very secure and won't allow the panel to come out or rattle. We have a variety of speaker sizes available for this rear door panel. Our sizes equal the cut out dimension of the speaker.
You can call or message us if you need help determining the size.
Left is driver side.
Please contact Hein at 541 49O 5O98 if you have questions.
We are honored to help you with your van build.
Check out our other items!
Lower Wall Panels for Ford Transit 148 regular length. Fits High, Mid and Low roof vans. See separate listings for 130 short wheel base or extended van.
Wall panels are precision CNC machined based OEM CAD data. Automotive grade standard removable push pins are included to attach the panels to OEM holes. No drilling or screws or new holes required. Panels can be removed for service. Surface of panel is counter-bored for head of push pin which greatly improves appearance. Very much an OEM look. The push pins are black but could be DIY painted to match panel colors.
Plastic lower wall panels are a great easy install option for your build. Then finish out with your preferred look on the upper panels and headliner. Expanded PVC (Celtec) is light but a bit more prone to scratching. ABS and Kydex panels offer maximum durability. Individual panels can be replaced if needed. Longer push pins or alternate attachment method would be needed if upholstery is applied.
Panels are all solid. We can cut openings for our wall insert boxes and sub panels in the forward driver's side panel. Please reach out so we can coordinate which openings are needed. These options are not listed.
Wall Insert Panel with Built in Box
Also available for local pickup. Please call Kim to arrange prior to ordering. 541-49O-4292
If you have questions about this product you can call or text (preferred) Hein at 541-49O-5O98
