Speakers & Speaker Installation
If you have questions or require technical support regarding this or any of our products then please call Hein at 541-49O-5O98
Check out our other items!
Sold as a pair, these adapters are for upgrading the speakers in the the front doors of the Promaster van. The factory door panel and speaker grill is retained for a stealth factory look. This is a crucial step to enjoying better sound quality in your van.
The adapters were designed in 3D CAD and they are machined on a CNC router. The holes in the adapter are perfectly located and countersunk to mount over the factory posts and be secured with the original screws. Then you drill holes in the adapter ring for your speakers and secure them with sheet metal screws. We highly recommend installing 3M Thinsulate(TM) behind the door panel at the same time.
Material for the adapters is 3/4 thick expanded PVC. It won't absorb moisture like MDF or wood and holds screws well without splitting. O.D. is 6.5" (165mm). Thickness is 3/4" (19mm). There are 3 ID sizes to accommodate the cutout diameter needed for the speaker. Please continue reading to learn more about speaker sizing...
While shopping for speakers look for 6 1/2 or 6 3/4 speakers. COAX are the best bang for your buck and component speakers are potentially the best sound but involve replacing the dash tweeters and installing a crossover. Most 6 1/2" speakers require a 5" ID cut out diameter which is the size of hole the speaker will drop into. The corresponds to one of our spacers on the drop down list.
There are also what the industry calls 6 3/4" speakers which allows for a bigger cone and improved base response. These speakers require the 5.62 or 5.75 ID cutout diameter (hole). We have 5.62 and 5.75 ID adapters for these speakers. Do not choose speakers with thick cast aluminum or plastic frames with protruding terminals. These are too large to fit into the smaller hole in the door sheetmetal. It is best to choose a speaker with a thinner formed metal frames and terminals that can be bent slightly should they interfere. Also do not choose a speaker that has a thick frame above the mounting face. This will interfere with the door panel. Overall height of the spacer and speaker should not exceed 1". The door panel can be trimmed to clear a taller speaker. Please contact us if you need help choosing or verifying the fit of a particular speaker.
Here are some specific suggestions of speakers that should fit.
Rockford Fosgate Prime R1675X2 = 5.750 ID
JBL GT7-6 = 5.625 ID
Please note that we are able to make custom sizes.
While you have your door panel removed it is a good idea to put some thinsulate in it? Video is on a Ford Transit but it is the same process.
If you have questions about this product you can call Hein at 541-49O-5O98
Please contact Hein 541 49O 5O98 if you have questions about this product.
Please contact Hein 541 49O 5O98 if you have questions about this product.

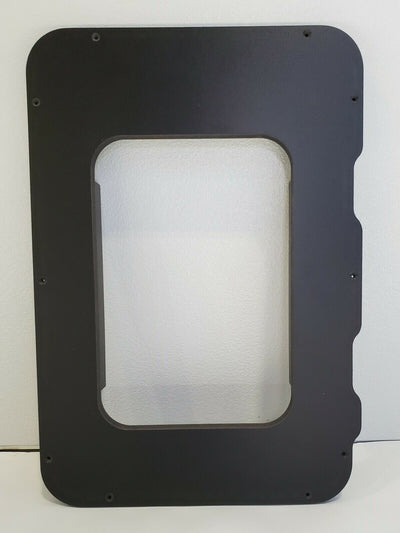

These panels fit in the upper part of the door on all 2007 to present highroof Sprinter vans. They are available in fine textured white, black, or grey Celtec which is a durable PVC based plastic composite board. Thickness is ~1/4" (6mm).
The panels mount to the door with black plastic automotive style push pins included. No tools are required. The pins are very secure and won't allow the panel to come out or rattle. We have a variety of speaker sizes available for this rear door panel. Our sizes equal the cut out dimension of the speaker.
You can call or message us if you need help determining the size.
Left is driver side.
Sold as a pair, these adapters are for upgrading the speakers in the the front doors of 2007 to 2018 NCV3 Sprinter vans. The factory door panel and speaker grill is retained for a stealth factory look. This is a crucial step to enjoying better sound quality in your van.
The adapters were designed in 3D CAD and they are machined on a CNC router. The holes in the adapter are perfectly located and countersunk to mount over the factory posts and be secured with the original screws. Then you drill holes in the adapter ring for your speakers and secure them with sheet metal screws. We highly recommend installing 3M Thinsulate(TM) behind the door panel at the same time.
Material for the adapters is 3/4 thick expanded PVC. It won't absorb moisture like MDF or wood and holds screws well without splitting. O.D. is 6.5" (165mm). Thickness is 3/4" (19mm). There are many ID sizes to accommodate the cutout diameter needed for the speaker. Please continue reading to learn more about speaker sizing...
While shopping for speakers look for 6 1/2 or 6 3/4 speakers. COAX are the best bang for your buck and component speakers are potentially the best sound but involve replacing the dash tweeters and installing a crossover. Most 6 1/2" speakers require a 5" ID cut out diameter which is the size of hole the speaker will drop into. The corresponds to one of our spacers on the drop down list.
There are also what the industry calls 6 3/4" speakers which allows for a bigger cone and improved base response. These speakers require the 5.62 or 5.75 ID cutout diameter (hole). We have 5.62 and 5.75 ID adapters for these speakers. Do not choose speakers with thick cast aluminum or plastic frames with protruding terminals. These are too large to fit into the smaller hole in the door sheetmetal. It is best to choose a speaker with a thinner formed metal frames and terminals that can be bent slightly should they interfere. Also do not choose a speaker that has a thick frame above the mounting face. This will interfere with the door panel. Overall height of the spacer and speaker should not exceed 1". The door panel can be trimmed to clear a taller speaker. Please contact us if you need help choosing or verifying the fit of a particular speaker.
Here are some specific suggestions of speakers that should fit.
Rockford Fosgate Prime R1675x2, these would take the 5.75ID size,
JBL GT7-6, these would take the 5.625 ID size. If you choose the component version you may have to modify the adapters.
Sprinter door speaker wire color code:
Left Front Speaker Positive Wire (+): Brown/Violet
Left Front Speaker Negative Wire (-): Brown/Dark Green
Right Front Speaker Positive Wire (+): Brown/Orange
Right Front Speaker Negative Wire (-): Brown/Dark Blue
Custom sizes are available. Please send the cut out diameter or ID in inches or millimeters.
We are adding an option to include 3 linear feet of Thinsulate (tm) for the driver and passenger doors.
Speaker is not included. Most shallow to low depth 10" speakers will fit. Hole size in plate should match or be slightly larger than top mount diameter of speaker. Please contact us if you don't see the appropriate size listed. We will make it custom.
Please contact Hein at 541 49O 5O98 for assistance in selecting a speaker. We can also assist you in attaching a subwoofer amp to your factory radio.
We also offer a full panel with no holes for mounting electronics.
We are honored to help you with your van build.
Check out our other items!
Sold as a pair, these adapters are for upgrading the speakers in the the front doors of 2015 to present Ford Transit vans. The factory door panel and speaker grill is retained for a stealth factory look. This is a crucial step to enjoying better sound quality in your van.
The adapters were designed in 3D CAD and they are machined on a CNC router. The holes in the adapter are perfectly located and countersunk to mount over the factory posts and be secured with the original screws. Then you drill holes in the adapter ring for your speakers and secure them with sheet metal screws. We highly recommend installing 3M Thinsulate(TM) behind the door panel at the same time.
Material for the adapters is 3/4 thick expanded PVC. It won't absorb moisture like MDF or wood and holds screws well without splitting. O.D. is 6.5" (165mm). Thickness is 3/4" (19mm). There are 3 ID sizes to accommodate the cutout diameter needed for the speaker. Please continue reading to learn more about speaker sizing...
While shopping for speakers look for 6 1/2 or 6 3/4 speakers. COAX are the best bang for your buck and component speakers are potentially the best sound but involve replacing the dash tweeters and installing a crossover. Most 6 1/2" speakers require a 5" ID cut out diameter which is the size of hole the speaker will drop into. The corresponds to one of our spacers on the drop down list.
There are also what the industry calls 6 3/4" speakers which allows for a bigger cone and improved base response. These speakers require the 5.62 or 5.75 ID cutout diameter (hole). We have 5.62 and 5.75 ID adapters for these speakers. Do not choose speakers with thick cast aluminum or plastic frames with protruding terminals. These are too large to fit into the smaller hole in the door sheetmetal. It is best to choose a speaker with a thinner formed metal frames and terminals that can be bent slightly should they interfere. Also do not choose a speaker that has a thick frame above the mounting face. This will interfere with the door panel. Overall height of the spacer and speaker should not exceed 1". The door panel can be trimmed to clear a taller speaker. Please contact us if you need help choosing or verifying the fit of a particular speaker.
Here are some specific suggestions of speakers that should fit.
Rockford Fosgate Prime R1675x2, these would take the 5.75ID size,
JBL GT7-6, these would take the 5.625 ID size.
When connecting the factory wires the negative is striped.
Custom sizes are available. Please send the cut out diameter or ID in inches or millimeters.
We are adding an option to include 4 linear feet of SM400L Thinsulate (tm) for the driver and passenger doors.
If you have questions about this product you can call Hein at 541-490-5098
