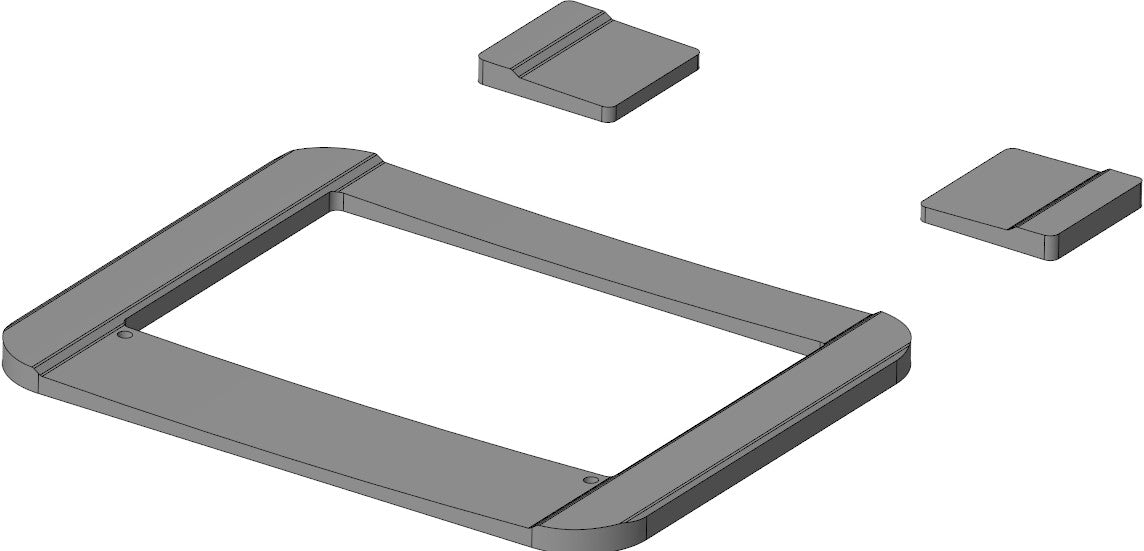

Patent Pending adapter matches the contour of the OEM roof so an air conditioner mounts to a flat surface. Prevents distorting the roof sheet metal and can be used as an aid for locating the AC. They are CNC machined out of UV and fire resistant expanded PVC.
Some of our adapters are made with different size openings than the manuals state. These will be a better fit!
The Nomadic X2/X3 adapter has an opening size of 11.5" L x 14.5" W. This also allows you to put it in Bay 3! If your hole is all ready cut with a 14 x 14 opening then order the Nomadic 2000 option.
The Mabru opening in our adapter is 14.675 L x 20.125 W
The Gree opening in our adapter is 12.125" L x 14.125" W
The Velit opening in our adapter is 11.875" L x 14" W
The Breezonic opening in our adapter is 15 1/4" L x 15 1/4" W
We highly recommend our internal framing support system. The Transit roof becomes very flimsy when the hole is cut, especially in the Front and Mid Bay positions.Framing for Air conditioners
Please note that a 130WB Transit does not use our rear bay strips. It will be either Front bay or Mid bay.
AC Adapter Install procedure: We recommend Sikaflex 221 or 3m Window-weld adhesive. Locate and cut the hole. You can use the adapter as a guide to mark the hole. Stay clear of roof supports, obviously. Make a tape line 1/4" beyond the adapter perimeter. De-gloss the area with a Scotch- brite pad. No need to scuff. Just dull the paint. Clean with isopropyl alcohol and let dry thoroughly. Blow dryer if it's wet and/or cold out. Apply a good amount of the Window-weld on the face of the adapter. Then press the adapter down onto the roof until the adhesive oozes out the sides. It's not necessary to clamp. If you do, use a lot of lightly set clamps and spread out the clamp force over the whole surface area. Using the adhesive that oozes out, make a fillet around the adapter with a double gloved finger. Pull the tape within 15 minutes. Cure is fast on outside. Let cure overnight and then proceed with the AC install per the AC instruction. Seal the adapter and onto the roof about 1/2" with Dicor self leveing sealant or Flexseal from the TV guy works well. Good idea to check the integrity and reapply the sealant every so often.
