Patent pending product. Fiamma F45s Awning Brackets for High Roof Transit. Positions awning lower in more visually appealing, easier to deploy and functional position. Much better than having awning too high on side of a rack. Brackets are secure to OEM roof attachment points and can co-exist with our rack and tower brackets. No drilling in van required. Uses 3M VHB tape to attach to the side of van to aid in supporting and stabilizing the brackets. Load is carried by OEM locations on roof. Please watch video to gain more understanding.

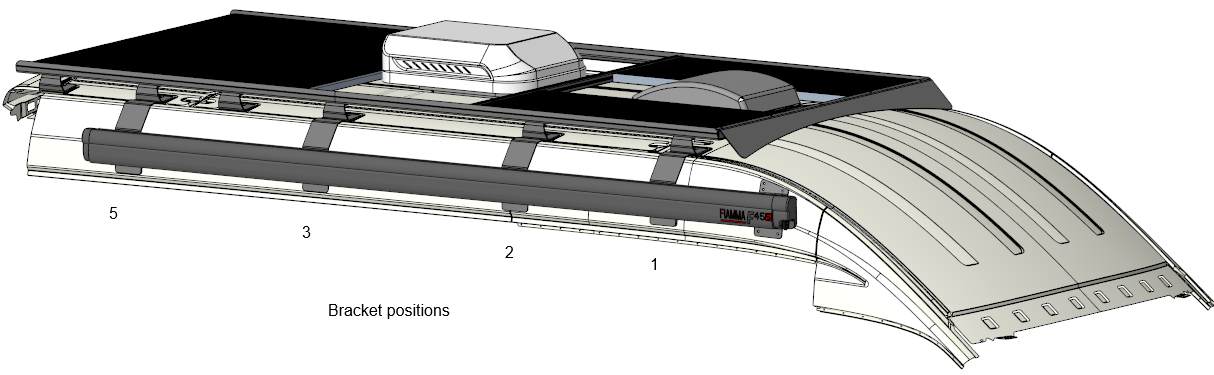

Sold as a set and includes all hardware. The brackets will be numbered for the tower positions starting at the front going towards the back. Fiamma sends 3 mounting brackets with their awning. We will supply the extra mounting brackets needed to go on our brackets.

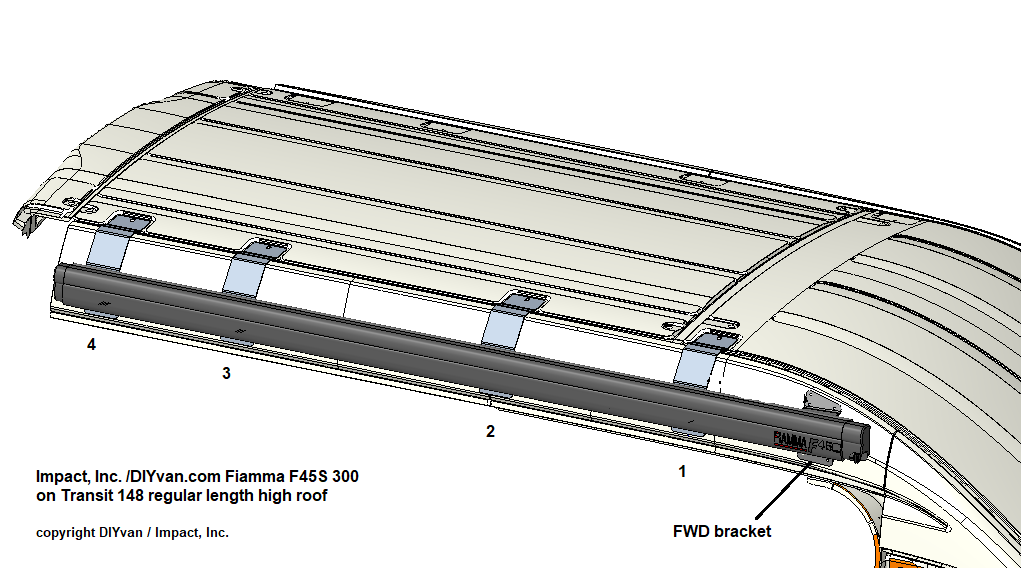

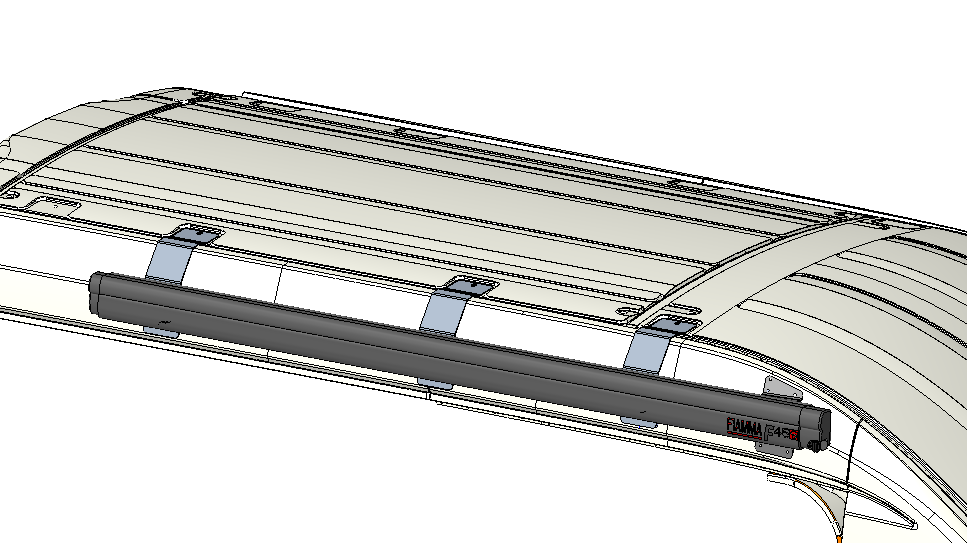

We have setups with a forward bracket. This allows you to move the awning more forward to cover most of the slider door. It may also be necessary if you are using the longer awnings so the front of the awning is supported This bracket is through bolted to the van body. If you have questions about this please text Hein 541-490-5098.

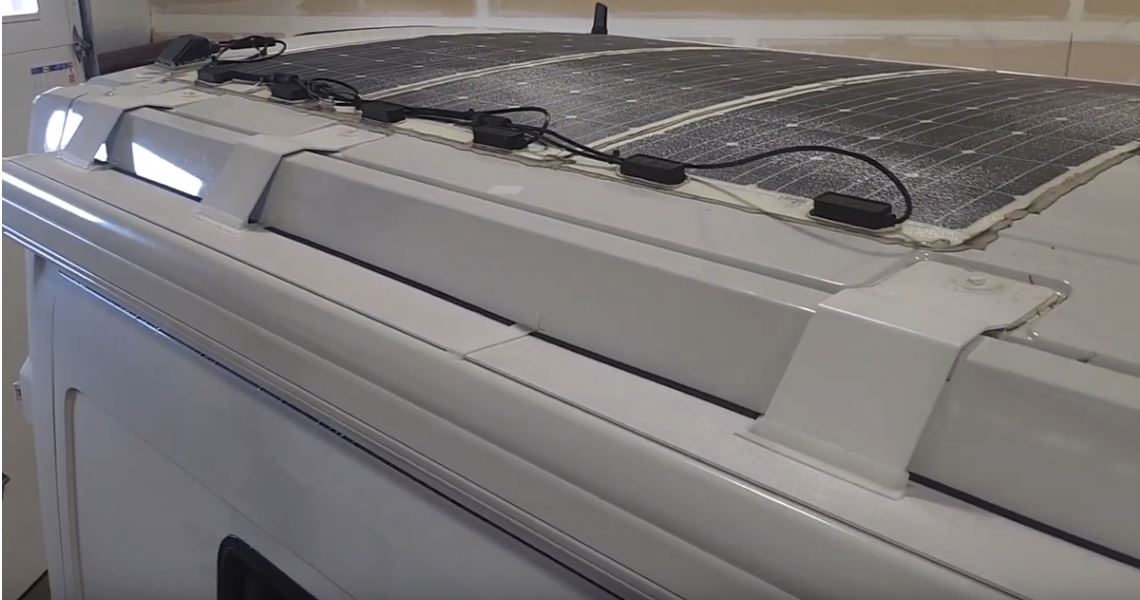

We offer spacers for the non awning side if using our formed roof rail system. They are sold by the each. Please see suggested accessories.
Awning is not included. Note: Wall mount brackets are recommended when you purchase the F45S awning.
Not suitable for medium and low roof vans.
DISCLAIMER: Owner and/or installer assumes all risks associated with products and/or components purchased from DIYvan. Owner and/or installer recognizes and agrees that this product, and any of its component parts, is sold “as is” and that DIYvan makes no representation or warranty of merchantability that the product is fit for any particular purpose.
