Name: Pair of Sprinter Tower Brackets for use with 8020(TM) 15 series crossbars
Availability: InStock

Pair of Sprinter Tower Brackets for use with 8020(TM) 15 series crossbars

$75.00

Shipping calculated at checkout.

Product Type

15 Series Square set of 2

1517 Series Rounded set of 2

15 Series Extended set of 2

Color

Silver

Black

Quantity

Suggested Accesories

46" Crossbars for use with our 8020 Sprinter Tower Brackets

46" 1503 square Black

46" 1503 square Clear

46" 1517 quarter round Black

46" 1517 quarter round Clear

[{"id":43433829761243,"title":"46\" 1503 square Black","option1":"46\" 1503 square Black","option2":null,"option3":null,"sku":"9023540","requires_shipping":true,"taxable":true,"featured_image":{"id":38370567127259,"product_id":7847401554139,"position":1,"created_at":"2022-09-28T22:34:11-07:00","updated_at":"2022-09-28T22:34:11-07:00","alt":null,"width":500,"height":405,"src":"\/\/diyvan.com\/cdn\/shop\/products\/57_ef203473-e1f9-4256-aa74-f1f21c02fb11.png?v=1664429651","variant_ids":[43433829761243]},"available":true,"name":"46\" Crossbars for use with our 8020 Sprinter Tower Brackets - 46\" 1503 square Black","public_title":"46\" 1503 square Black","options":["46\" 1503 square Black"],"price":9500,"weight":1814,"compare_at_price":null,"inventory_management":"shopify","barcode":"","featured_media":{"alt":null,"id":30967977771227,"position":1,"preview_image":{"aspect_ratio":1.235,"height":405,"width":500,"src":"\/\/diyvan.com\/cdn\/shop\/products\/57_ef203473-e1f9-4256-aa74-f1f21c02fb11.png?v=1664429651"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":43433829925083,"title":"46\" 1503 square Clear","option1":"46\" 1503 square Clear","option2":null,"option3":null,"sku":"9023936","requires_shipping":true,"taxable":true,"featured_image":{"id":38370568437979,"product_id":7847401554139,"position":6,"created_at":"2022-09-28T22:34:25-07:00","updated_at":"2022-09-28T22:34:25-07:00","alt":null,"width":500,"height":376,"src":"\/\/diyvan.com\/cdn\/shop\/products\/57_b29e9ceb-567b-4f7b-b878-fe889dbfff15.png?v=1664429665","variant_ids":[43433829925083]},"available":true,"name":"46\" Crossbars for use with our 8020 Sprinter Tower Brackets - 46\" 1503 square Clear","public_title":"46\" 1503 square Clear","options":["46\" 1503 square Clear"],"price":7500,"weight":1814,"compare_at_price":null,"inventory_management":"shopify","barcode":"","featured_media":{"alt":null,"id":30967979081947,"position":6,"preview_image":{"aspect_ratio":1.33,"height":376,"width":500,"src":"\/\/diyvan.com\/cdn\/shop\/products\/57_b29e9ceb-567b-4f7b-b878-fe889dbfff15.png?v=1664429665"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":43433829859547,"title":"46\" 1517 quarter round Black","option1":"46\" 1517 quarter round Black","option2":null,"option3":null,"sku":"9022182","requires_shipping":true,"taxable":true,"featured_image":{"id":38370568143067,"product_id":7847401554139,"position":4,"created_at":"2022-09-28T22:34:19-07:00","updated_at":"2022-09-28T22:34:19-07:00","alt":null,"width":500,"height":693,"src":"\/\/diyvan.com\/cdn\/shop\/products\/57_22a6d4b7-8913-4da9-90ed-40ef7bb87dc8.jpg?v=1664429659","variant_ids":[43433829859547]},"available":true,"name":"46\" Crossbars for use with our 8020 Sprinter Tower Brackets - 46\" 1517 quarter round Black","public_title":"46\" 1517 quarter round Black","options":["46\" 1517 quarter round Black"],"price":9000,"weight":1814,"compare_at_price":null,"inventory_management":"shopify","barcode":"","featured_media":{"alt":null,"id":30967978787035,"position":4,"preview_image":{"aspect_ratio":0.722,"height":693,"width":500,"src":"\/\/diyvan.com\/cdn\/shop\/products\/57_22a6d4b7-8913-4da9-90ed-40ef7bb87dc8.jpg?v=1664429659"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":43433829892315,"title":"46\" 1517 quarter round Clear","option1":"46\" 1517 quarter round Clear","option2":null,"option3":null,"sku":"9022183","requires_shipping":true,"taxable":true,"featured_image":{"id":38370568339675,"product_id":7847401554139,"position":5,"created_at":"2022-09-28T22:34:22-07:00","updated_at":"2022-09-28T22:34:22-07:00","alt":null,"width":500,"height":693,"src":"\/\/diyvan.com\/cdn\/shop\/products\/57_57541526-4c66-4534-b0e4-891b7d75a7e7.jpg?v=1664429662","variant_ids":[43433829892315]},"available":true,"name":"46\" Crossbars for use with our 8020 Sprinter Tower Brackets - 46\" 1517 quarter round Clear","public_title":"46\" 1517 quarter round Clear","options":["46\" 1517 quarter round Clear"],"price":7000,"weight":1814,"compare_at_price":null,"inventory_management":"shopify","barcode":"","featured_media":{"alt":null,"id":30967978983643,"position":5,"preview_image":{"aspect_ratio":0.722,"height":693,"width":500,"src":"\/\/diyvan.com\/cdn\/shop\/products\/57_57541526-4c66-4534-b0e4-891b7d75a7e7.jpg?v=1664429662"}},"requires_selling_plan":false,"selling_plan_allocations":[]}]

Tab to mount solar panel to 8020 (TM) cross bars

2 hole tab / Clear Anodized

3 hole tab / Clear Anodized

2 hole tab / Black Anodized

3 hole tab / Black Anodized

[{"id":33381430657083,"title":"2 hole tab \/ Clear Anodized","option1":"2 hole tab","option2":"Clear Anodized","option3":null,"sku":"9021373","requires_shipping":true,"taxable":true,"featured_image":{"id":15686645022779,"product_id":4810991665211,"position":1,"created_at":"2020-04-17T16:09:04-07:00","updated_at":"2020-04-17T16:09:04-07:00","alt":null,"width":500,"height":310,"src":"\/\/diyvan.com\/cdn\/shop\/products\/57_befbeda2-2b44-4cf6-8f28-f8d5d96e7578.jpg?v=1587164944","variant_ids":[33381430657083,33381430689851,33381430722619,33381430755387]},"available":true,"name":"Tab to mount solar panel to 8020 (TM) cross bars - 2 hole tab \/ Clear Anodized","public_title":"2 hole tab \/ Clear Anodized","options":["2 hole tab","Clear Anodized"],"price":1100,"weight":57,"compare_at_price":null,"inventory_management":"shopify","barcode":"does not apply","featured_media":{"alt":null,"id":7858186256443,"position":1,"preview_image":{"aspect_ratio":1.613,"height":310,"width":500,"src":"\/\/diyvan.com\/cdn\/shop\/products\/57_befbeda2-2b44-4cf6-8f28-f8d5d96e7578.jpg?v=1587164944"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":33381430689851,"title":"3 hole tab \/ Clear Anodized","option1":"3 hole tab","option2":"Clear Anodized","option3":null,"sku":"9021371","requires_shipping":true,"taxable":true,"featured_image":{"id":15686645022779,"product_id":4810991665211,"position":1,"created_at":"2020-04-17T16:09:04-07:00","updated_at":"2020-04-17T16:09:04-07:00","alt":null,"width":500,"height":310,"src":"\/\/diyvan.com\/cdn\/shop\/products\/57_befbeda2-2b44-4cf6-8f28-f8d5d96e7578.jpg?v=1587164944","variant_ids":[33381430657083,33381430689851,33381430722619,33381430755387]},"available":true,"name":"Tab to mount solar panel to 8020 (TM) cross bars - 3 hole tab \/ Clear Anodized","public_title":"3 hole tab \/ Clear Anodized","options":["3 hole tab","Clear Anodized"],"price":1300,"weight":57,"compare_at_price":null,"inventory_management":"shopify","barcode":"does not apply","featured_media":{"alt":null,"id":7858186256443,"position":1,"preview_image":{"aspect_ratio":1.613,"height":310,"width":500,"src":"\/\/diyvan.com\/cdn\/shop\/products\/57_befbeda2-2b44-4cf6-8f28-f8d5d96e7578.jpg?v=1587164944"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":33381430722619,"title":"2 hole tab \/ Black Anodized","option1":"2 hole tab","option2":"Black Anodized","option3":null,"sku":"9021374","requires_shipping":true,"taxable":true,"featured_image":{"id":15686645022779,"product_id":4810991665211,"position":1,"created_at":"2020-04-17T16:09:04-07:00","updated_at":"2020-04-17T16:09:04-07:00","alt":null,"width":500,"height":310,"src":"\/\/diyvan.com\/cdn\/shop\/products\/57_befbeda2-2b44-4cf6-8f28-f8d5d96e7578.jpg?v=1587164944","variant_ids":[33381430657083,33381430689851,33381430722619,33381430755387]},"available":true,"name":"Tab to mount solar panel to 8020 (TM) cross bars - 2 hole tab \/ Black Anodized","public_title":"2 hole tab \/ Black Anodized","options":["2 hole tab","Black Anodized"],"price":1100,"weight":57,"compare_at_price":null,"inventory_management":"shopify","barcode":"Does not apply","featured_media":{"alt":null,"id":7858186256443,"position":1,"preview_image":{"aspect_ratio":1.613,"height":310,"width":500,"src":"\/\/diyvan.com\/cdn\/shop\/products\/57_befbeda2-2b44-4cf6-8f28-f8d5d96e7578.jpg?v=1587164944"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":33381430755387,"title":"3 hole tab \/ Black Anodized","option1":"3 hole tab","option2":"Black Anodized","option3":null,"sku":"9021372","requires_shipping":true,"taxable":true,"featured_image":{"id":15686645022779,"product_id":4810991665211,"position":1,"created_at":"2020-04-17T16:09:04-07:00","updated_at":"2020-04-17T16:09:04-07:00","alt":null,"width":500,"height":310,"src":"\/\/diyvan.com\/cdn\/shop\/products\/57_befbeda2-2b44-4cf6-8f28-f8d5d96e7578.jpg?v=1587164944","variant_ids":[33381430657083,33381430689851,33381430722619,33381430755387]},"available":true,"name":"Tab to mount solar panel to 8020 (TM) cross bars - 3 hole tab \/ Black Anodized","public_title":"3 hole tab \/ Black Anodized","options":["3 hole tab","Black Anodized"],"price":1300,"weight":57,"compare_at_price":null,"inventory_management":"shopify","barcode":"Does not apply","featured_media":{"alt":null,"id":7858186256443,"position":1,"preview_image":{"aspect_ratio":1.613,"height":310,"width":500,"src":"\/\/diyvan.com\/cdn\/shop\/products\/57_befbeda2-2b44-4cf6-8f28-f8d5d96e7578.jpg?v=1587164944"}},"requires_selling_plan":false,"selling_plan_allocations":[]}]

[{"id":40877078446237,"title":"15 Series Square set of 2 \/ Silver","option1":"15 Series Square set of 2","option2":"Silver","option3":null,"sku":"9021990","requires_shipping":true,"taxable":true,"featured_image":{"id":30371372925085,"product_id":6969493061789,"position":2,"created_at":"2021-09-02T15:54:26-07:00","updated_at":"2021-12-09T15:43:02-08:00","alt":null,"width":546,"height":580,"src":"\/\/diyvan.com\/cdn\/shop\/products\/57_67f54f9b-147a-4bcc-8cae-91530432b680.png?v=1639093382","variant_ids":[40877078446237,40877078479005]},"available":true,"name":"Pair of Sprinter Tower Brackets for use with 8020(TM) 15 series crossbars - 15 Series Square set of 2 \/ Silver","public_title":"15 Series Square set of 2 \/ Silver","options":["15 Series Square set of 2","Silver"],"price":7500,"weight":709,"compare_at_price":null,"inventory_management":"shopify","barcode":"Does not apply","featured_media":{"alt":null,"id":22655577194653,"position":2,"preview_image":{"aspect_ratio":0.941,"height":580,"width":546,"src":"\/\/diyvan.com\/cdn\/shop\/products\/57_67f54f9b-147a-4bcc-8cae-91530432b680.png?v=1639093382"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":40877078479005,"title":"15 Series Square set of 2 \/ Black","option1":"15 Series Square set of 2","option2":"Black","option3":null,"sku":"9021989","requires_shipping":true,"taxable":true,"featured_image":{"id":30371372925085,"product_id":6969493061789,"position":2,"created_at":"2021-09-02T15:54:26-07:00","updated_at":"2021-12-09T15:43:02-08:00","alt":null,"width":546,"height":580,"src":"\/\/diyvan.com\/cdn\/shop\/products\/57_67f54f9b-147a-4bcc-8cae-91530432b680.png?v=1639093382","variant_ids":[40877078446237,40877078479005]},"available":true,"name":"Pair of Sprinter Tower Brackets for use with 8020(TM) 15 series crossbars - 15 Series Square set of 2 \/ Black","public_title":"15 Series Square set of 2 \/ Black","options":["15 Series Square set of 2","Black"],"price":7500,"weight":709,"compare_at_price":null,"inventory_management":"shopify","barcode":"Does not apply","featured_media":{"alt":null,"id":22655577194653,"position":2,"preview_image":{"aspect_ratio":0.941,"height":580,"width":546,"src":"\/\/diyvan.com\/cdn\/shop\/products\/57_67f54f9b-147a-4bcc-8cae-91530432b680.png?v=1639093382"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":40877078511773,"title":"1517 Series Rounded set of 2 \/ Silver","option1":"1517 Series Rounded set of 2","option2":"Silver","option3":null,"sku":"9021992","requires_shipping":true,"taxable":true,"featured_image":{"id":30371372957853,"product_id":6969493061789,"position":1,"created_at":"2021-09-02T15:54:26-07:00","updated_at":"2021-12-09T15:43:02-08:00","alt":null,"width":846,"height":542,"src":"\/\/diyvan.com\/cdn\/shop\/products\/57_ed65da4e-4464-4e9c-9774-1c9ee539f02c.png?v=1639093382","variant_ids":[40877078511773,40877078544541]},"available":true,"name":"Pair of Sprinter Tower Brackets for use with 8020(TM) 15 series crossbars - 1517 Series Rounded set of 2 \/ Silver","public_title":"1517 Series Rounded set of 2 \/ Silver","options":["1517 Series Rounded set of 2","Silver"],"price":7500,"weight":709,"compare_at_price":null,"inventory_management":"shopify","barcode":"Does not apply","featured_media":{"alt":null,"id":22655577227421,"position":1,"preview_image":{"aspect_ratio":1.561,"height":542,"width":846,"src":"\/\/diyvan.com\/cdn\/shop\/products\/57_ed65da4e-4464-4e9c-9774-1c9ee539f02c.png?v=1639093382"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":40877078544541,"title":"1517 Series Rounded set of 2 \/ Black","option1":"1517 Series Rounded set of 2","option2":"Black","option3":null,"sku":"9021991","requires_shipping":true,"taxable":true,"featured_image":{"id":30371372957853,"product_id":6969493061789,"position":1,"created_at":"2021-09-02T15:54:26-07:00","updated_at":"2021-12-09T15:43:02-08:00","alt":null,"width":846,"height":542,"src":"\/\/diyvan.com\/cdn\/shop\/products\/57_ed65da4e-4464-4e9c-9774-1c9ee539f02c.png?v=1639093382","variant_ids":[40877078511773,40877078544541]},"available":true,"name":"Pair of Sprinter Tower Brackets for use with 8020(TM) 15 series crossbars - 1517 Series Rounded set of 2 \/ Black","public_title":"1517 Series Rounded set of 2 \/ Black","options":["1517 Series Rounded set of 2","Black"],"price":7500,"weight":709,"compare_at_price":null,"inventory_management":"shopify","barcode":"Does not apply","featured_media":{"alt":null,"id":22655577227421,"position":1,"preview_image":{"aspect_ratio":1.561,"height":542,"width":846,"src":"\/\/diyvan.com\/cdn\/shop\/products\/57_ed65da4e-4464-4e9c-9774-1c9ee539f02c.png?v=1639093382"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":40877078577309,"title":"15 Series Extended set of 2 \/ Silver","option1":"15 Series Extended set of 2","option2":"Silver","option3":null,"sku":"9021994","requires_shipping":true,"taxable":true,"featured_image":{"id":30371372990621,"product_id":6969493061789,"position":3,"created_at":"2021-09-02T15:54:26-07:00","updated_at":"2021-09-02T15:54:26-07:00","alt":null,"width":607,"height":449,"src":"\/\/diyvan.com\/cdn\/shop\/products\/57_dcc7bd02-4a2f-4326-a17a-c3d3e0019cf3.png?v=1630623266","variant_ids":[40877078577309,40877078610077]},"available":true,"name":"Pair of Sprinter Tower Brackets for use with 8020(TM) 15 series crossbars - 15 Series Extended set of 2 \/ Silver","public_title":"15 Series Extended set of 2 \/ Silver","options":["15 Series Extended set of 2","Silver"],"price":7500,"weight":709,"compare_at_price":null,"inventory_management":"shopify","barcode":"Does not apply","featured_media":{"alt":null,"id":22655577260189,"position":3,"preview_image":{"aspect_ratio":1.352,"height":449,"width":607,"src":"\/\/diyvan.com\/cdn\/shop\/products\/57_dcc7bd02-4a2f-4326-a17a-c3d3e0019cf3.png?v=1630623266"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":40877078610077,"title":"15 Series Extended set of 2 \/ Black","option1":"15 Series Extended set of 2","option2":"Black","option3":null,"sku":"9021993","requires_shipping":true,"taxable":true,"featured_image":{"id":30371372990621,"product_id":6969493061789,"position":3,"created_at":"2021-09-02T15:54:26-07:00","updated_at":"2021-09-02T15:54:26-07:00","alt":null,"width":607,"height":449,"src":"\/\/diyvan.com\/cdn\/shop\/products\/57_dcc7bd02-4a2f-4326-a17a-c3d3e0019cf3.png?v=1630623266","variant_ids":[40877078577309,40877078610077]},"available":true,"name":"Pair of Sprinter Tower Brackets for use with 8020(TM) 15 series crossbars - 15 Series Extended set of 2 \/ Black","public_title":"15 Series Extended set of 2 \/ Black","options":["15 Series Extended set of 2","Black"],"price":7500,"weight":709,"compare_at_price":null,"inventory_management":"shopify","barcode":"Does not apply","featured_media":{"alt":null,"id":22655577260189,"position":3,"preview_image":{"aspect_ratio":1.352,"height":449,"width":607,"src":"\/\/diyvan.com\/cdn\/shop\/products\/57_dcc7bd02-4a2f-4326-a17a-c3d3e0019cf3.png?v=1630623266"}},"requires_selling_plan":false,"selling_plan_allocations":[]}]

{"id":40877078446237,"title":"15 Series Square set of 2 \/ Silver","option1":"15 Series Square set of 2","option2":"Silver","option3":null,"sku":"9021990","requires_shipping":true,"taxable":true,"featured_image":{"id":30371372925085,"product_id":6969493061789,"position":2,"created_at":"2021-09-02T15:54:26-07:00","updated_at":"2021-12-09T15:43:02-08:00","alt":null,"width":546,"height":580,"src":"\/\/diyvan.com\/cdn\/shop\/products\/57_67f54f9b-147a-4bcc-8cae-91530432b680.png?v=1639093382","variant_ids":[40877078446237,40877078479005]},"available":true,"name":"Pair of Sprinter Tower Brackets for use with 8020(TM) 15 series crossbars - 15 Series Square set of 2 \/ Silver","public_title":"15 Series Square set of 2 \/ Silver","options":["15 Series Square set of 2","Silver"],"price":7500,"weight":709,"compare_at_price":null,"inventory_management":"shopify","barcode":"Does not apply","featured_media":{"alt":null,"id":22655577194653,"position":2,"preview_image":{"aspect_ratio":0.941,"height":580,"width":546,"src":"\/\/diyvan.com\/cdn\/shop\/products\/57_67f54f9b-147a-4bcc-8cae-91530432b680.png?v=1639093382"}},"requires_selling_plan":false,"selling_plan_allocations":[]}

Description

Patent Pending. Made in the USA! Quantity of 1 will include 2 Tower Brackets and hardware. Cross bars sold separately.

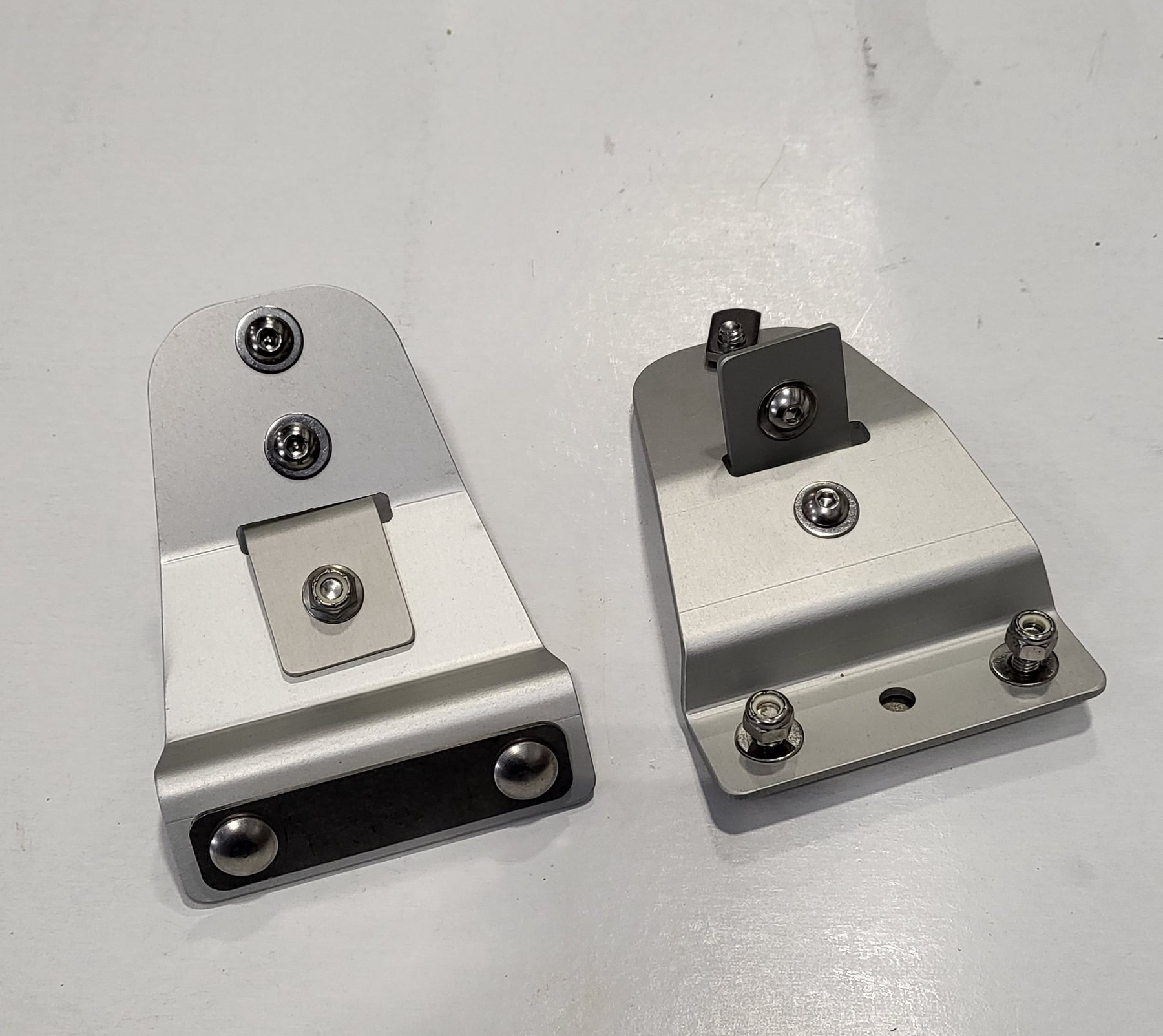

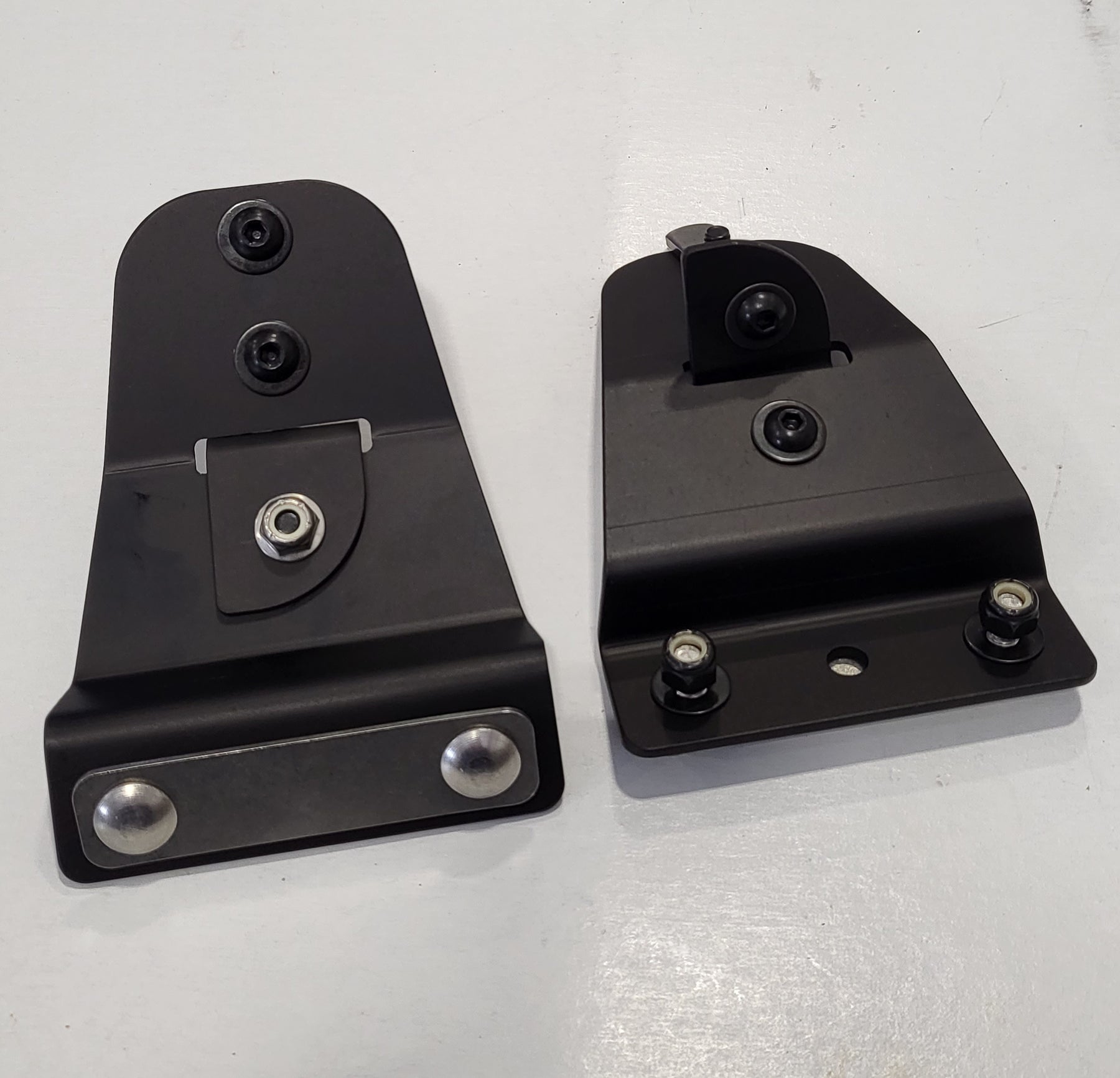

Tower brackets for Sprinters, laser cut, CNC formed, clear anodized or black anodized tower bracket kits for using with 8020 15 series crossbars to mount solar panels to OEM roof rails found on Sprinter and other vans.

If you do not have the OEM roof rails we have Spacer Pads that accept our tower brackets.

These brackets are compatible with the Fiamma Awning. The distance between our Towers is 46" for a High Roof Sprinter.

Crossbars for High Roof Sprinter can be found here: 46" cross bars

Tabs for connecting solar panel to crossbars can be found here: 2 and 3 hole tabs

Do not exceed 20 lbs load per tower. Not intended as a rack for hauling large or heavy items. Do not exceed total roof top weight allowed by vehicle manufacturer. Please contact us with any questions about how to use this product.

The distance between our Tower Brackets for a LOW ROOF Sprinter is 53.125".

select 'square' for use with 15 series square profiles

select 'rounded' for use with 1517 rounded profile

select 'extended' if the crossbar needs to extend beyond the tower. Compatible with both rounded and square profiles. This version does not cap the end of the crossbar so separate caps can be purchased with the 80/20. Maximum extension beyond tower not to exceed 6". Not suitable for mounting heavy awnings not otherwise supported.

If you have questions about this product you can call Hein at 541-49O-5O98

DISCLAIMER
Failure to follow warnings below may allow rack to
come loose from vehicle and cause injury or death.
If in doubt, please submit rack plans or photos for
evaluation prior to final installation or use.

Owner and/or installer assumes all risks associated with products and/or components purchased from DIYvan. Owner and/or installer recognizes and agrees that this product, and any of its component parts, is sold “as is” and that DIYvan makes no representation or warranty of merchantability that the product is fit for any particular purpose.

IMPORTANT SAFETY WARNINGS:
* Do not exceed 20 lbs load on each tower.
* Tower spacing down length of roof not to exceed 30"
* Do not allow solar panels to overhang side of roof.
* Do not extend any component more than 4" beyond forward
or rearward most towers.
* Do not extend crossbar more than 4" beyond slot in tower
* Do not exceed total allowable load by vehicle manufacturer.
* Use all available attachment points on van roof.
* Do not install roof top deck or climb on rack.
* Check and tighten all hardware after 100 miles
and every 500 miles there-after.
* Check overall integrity of rack every 500 miles
or monthly whichever is more frequent.

Assembly:
* Refer to diagram.
* Use all parts and hardware.
* Tab that bridges or passes through slot in tower
must be used. DO NOT OMIT TAB
* Torque 5/16-18 hardware to 8 ft-lbs
* Use Loctite blue on any connection without toplock nut.
