WARNING!! Please verify the opening requirement on your Maxxair Fan. If it is 400mm x 400mm you need to purchase an adapter from our Ford Transit Euro Adapter listing.
Patent Pending adapter matches the contour of the OEM roof so a standard RV style vent mounts to a flat surface. Prevents distorting the roof sheet metal or vent flange and can be used as an aid for locating the fan. They are CNC machined out of UV and fire resistant expanded PVC. The fan mounts to the outside adapter.
Check out the NEW Airplus vent fan we offer. It has more features than the Maxxair, a brushless motor and it does not rattle! By far the best!! The fan adapters also work with the Maxxair Deluxe series and the Fan-tastic Vent fans.
IMPORTANT
The outside adapter will fit anywhere along the cargo part of the roof. Longer screws than came with the vent fan may be needed.
The vent adapter outside dimension is 16 3/4 X 16 3/4. If you are using a Maxxfan vent our adapter fits the deluxe series, other Maxxfan vents have a wider flange. You will need a wider adapter. Please text Hein at 541-490-5098 for help.
If you order the framing strips they will come in a separate box.
The option with butyl tape includes 64" of tape.
We make adapters to fit air conditioners and adapters for offset locations. Please contact us so we can verify size and location.

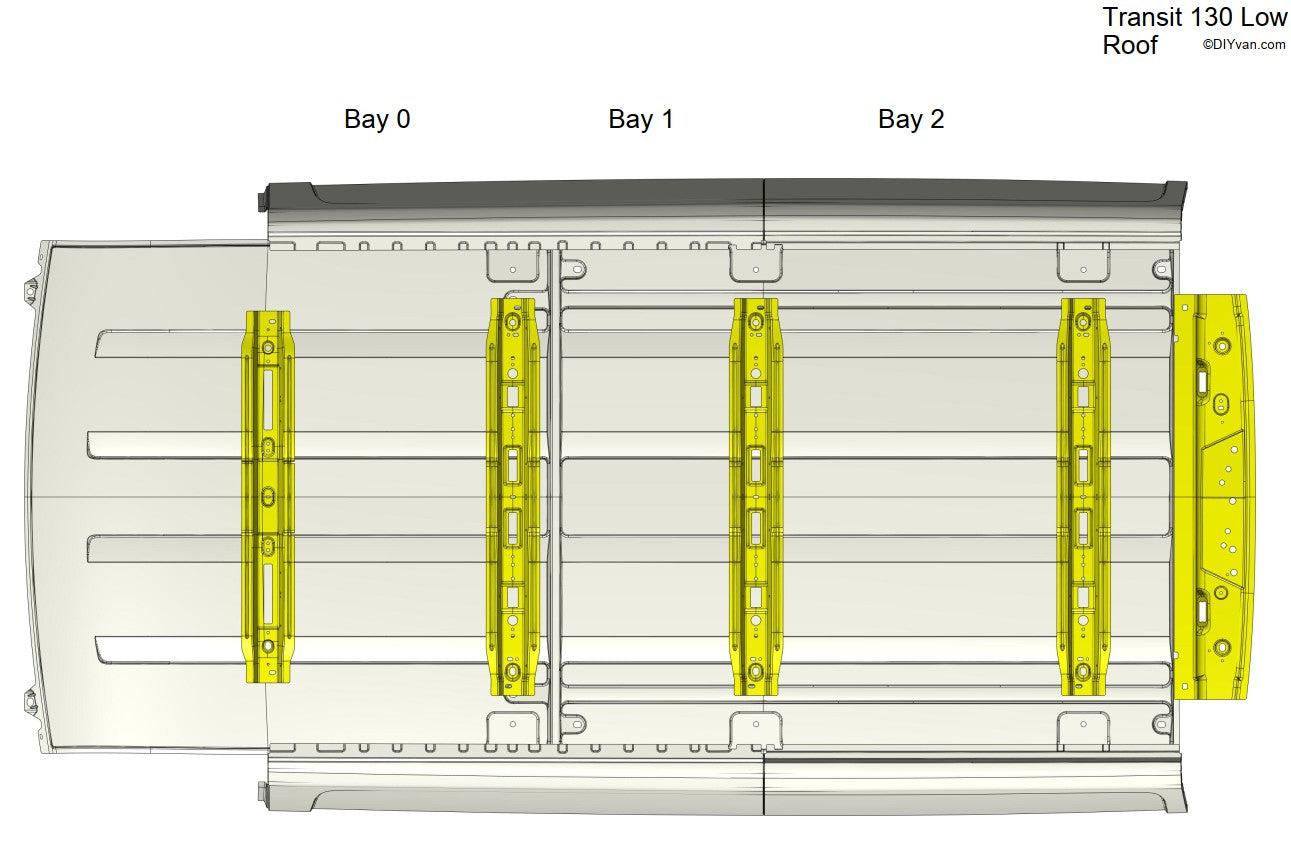

The Low Roof Vent Adapter will also fit just ahead of the cargo area on the Mid Roof Transit. The interior framing strips will not work but you could order our 1/2" backing frame.
Roof Vent Adapter Install Tips
We recommend Sikaflex 221. Locate and cut the 14 x 14 hole. You can use the adapter as a guide to mark the hole. Stay clear of roof support beams.
Make a tape line 1/4" beyond the adapter perimeter.
De-gloss the area with a Scotch-brite pad. No need to scuff, just dull the paint. Clean with isopropyl alcohol and let dry thoroughly. Blow dryer if it's wet and/or cold out.
Apply three 1/8" beads of the Sikaflex on the face of the adapter. Then, press the adapter down onto the roof until the adhesive oozes out the sides. It's not necessary to clamp. If you do, use several lightly set clamps and spread out the clamp force over the whole surface area.
Using the adhesive that oozes out, make a fillet around the adapter with a double gloved finger. Pull the tape within 15 minutes. Cure is fast on outside. Let cure overnight and then proceed with the fan install.
If you purchased our Interior Framing Strips, using the hole that you cut locate where the transverse strips need to be placed on the longitudinal strips. Assemble the interior frame with the 2" screws provided. Once the frame is assembled it will be glued to the interior side of the roof using Sikaflex 221. If the strips ordered are not bay specific, then you may need to cut them to the length of the panel you are installing it in.
We recommend using butyl tape for the fan install. Cover the fan flange with 1" wide tape. Place the flange onto the adapter and press down. Then drill pilot holes through the adapter and into the van roof. You may need the 4 longer screws provided for the corners. Tighten all screws very lightly against the fan flange. Some butyl will ooze out which you can trim off.
Coat the fan flange, adapter and onto the roof about 1/2" with self-leveling Dicor or brush-on Flexseal. Some sealants will melt the fan plastic so you might try it on a portion of the interior bezel first. You will cut a lot of that piece off.
Good idea to check the integrity and reapply the sealant every so often.
**Please note, if you purchased butyl tape with this order and the butyl tape is stuck to the plastic, place it in the freezer for 15 or 20 min. It will release, then let it return to room temperature.
If you have questions about this product you can call Hein at 541-49O-5O98
Van owner and/or installer assumes all risk associated with roof top mounted items and/or components. Van owner and/or installer recognizes and agrees that this product, and each of its component parts, is sold “as is” and that seller makes no representation or warranty of merchantability that the product is fit for any particular purpose.
