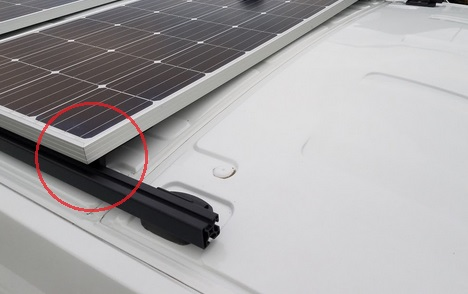

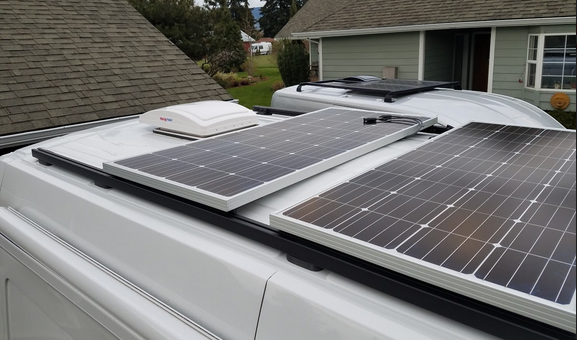

Ford Transit 8020 rail mounting kit for solar panels. This kit is for solar panels that will span across our roof rails that are 57 5/8 center to center. Any panel that is roughly 57" long will work. The popular Grape Solar 180 watt panels will work for this application. The mounts attach to the bottom of the panels (holes must be drilled in panels) and to the top of the rails using hardware include. There will be 3/8" clearance between the panel and the top of the van.

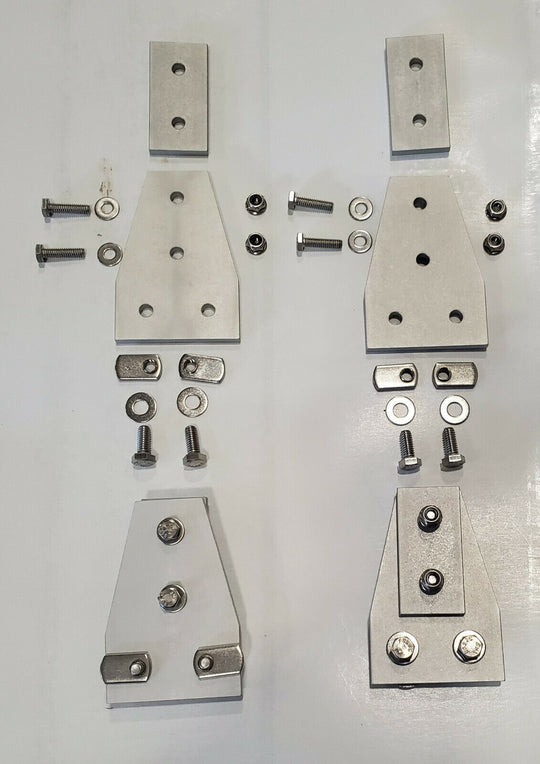

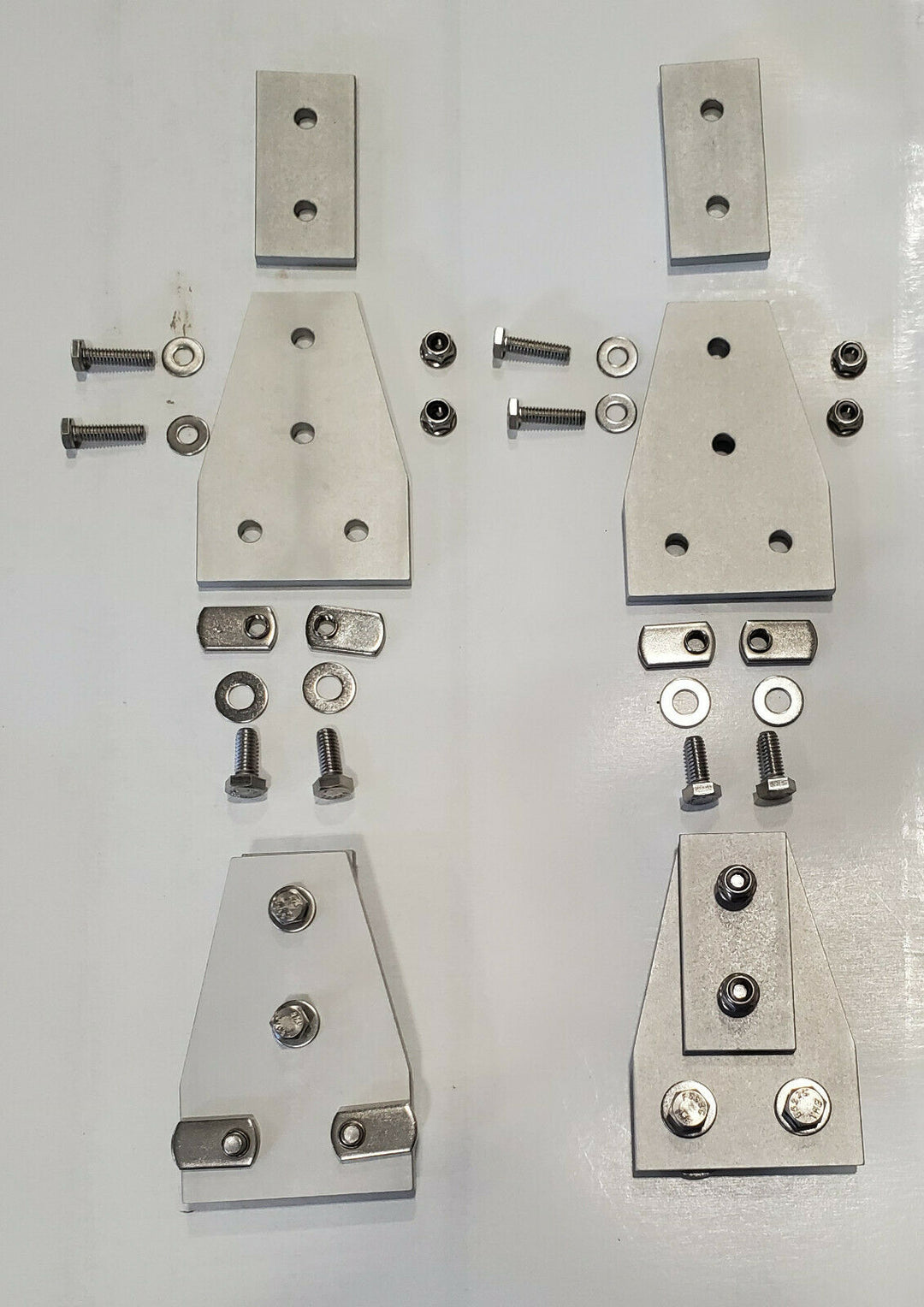

Kit includes 4 plates and hardware

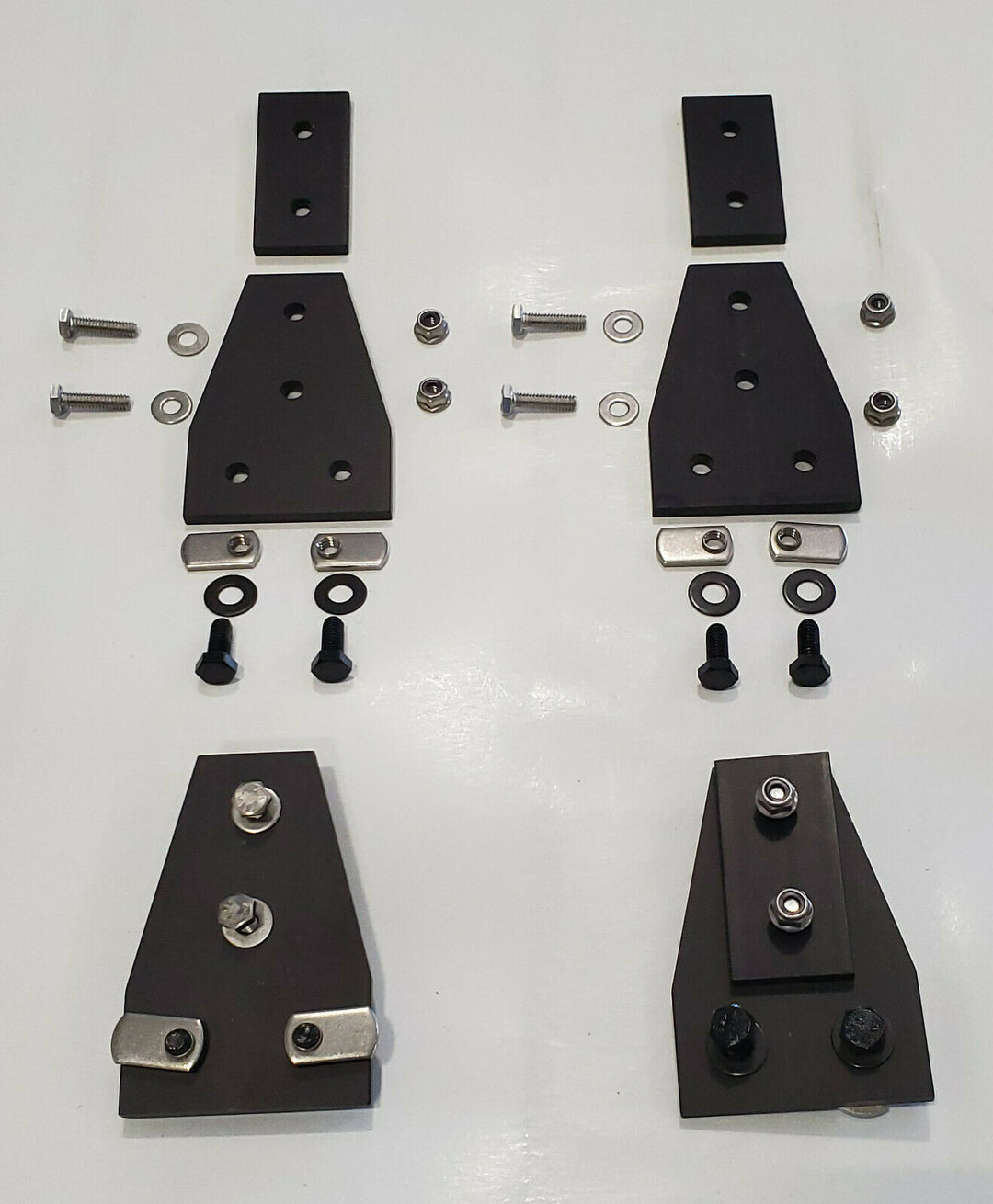

available in Black anodized or Clear anodized
If you have questions about this product you can call Hein at 541-49O-5O98
