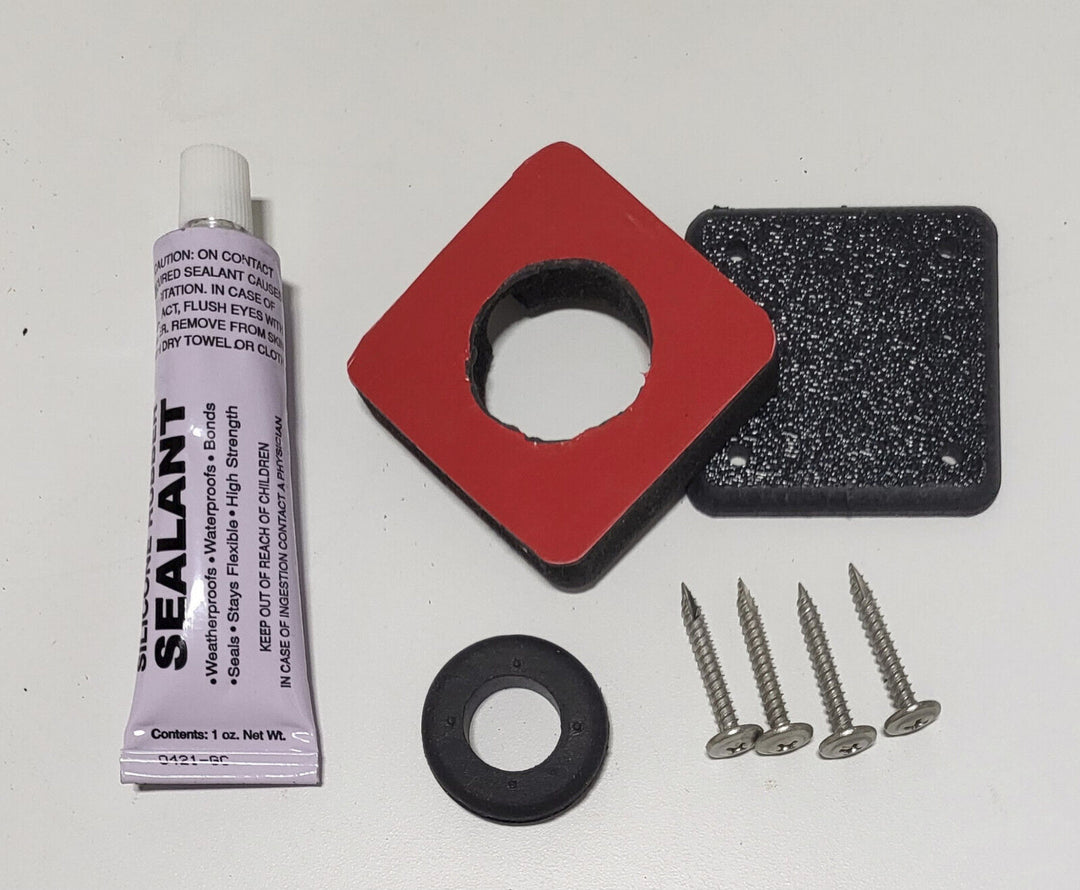

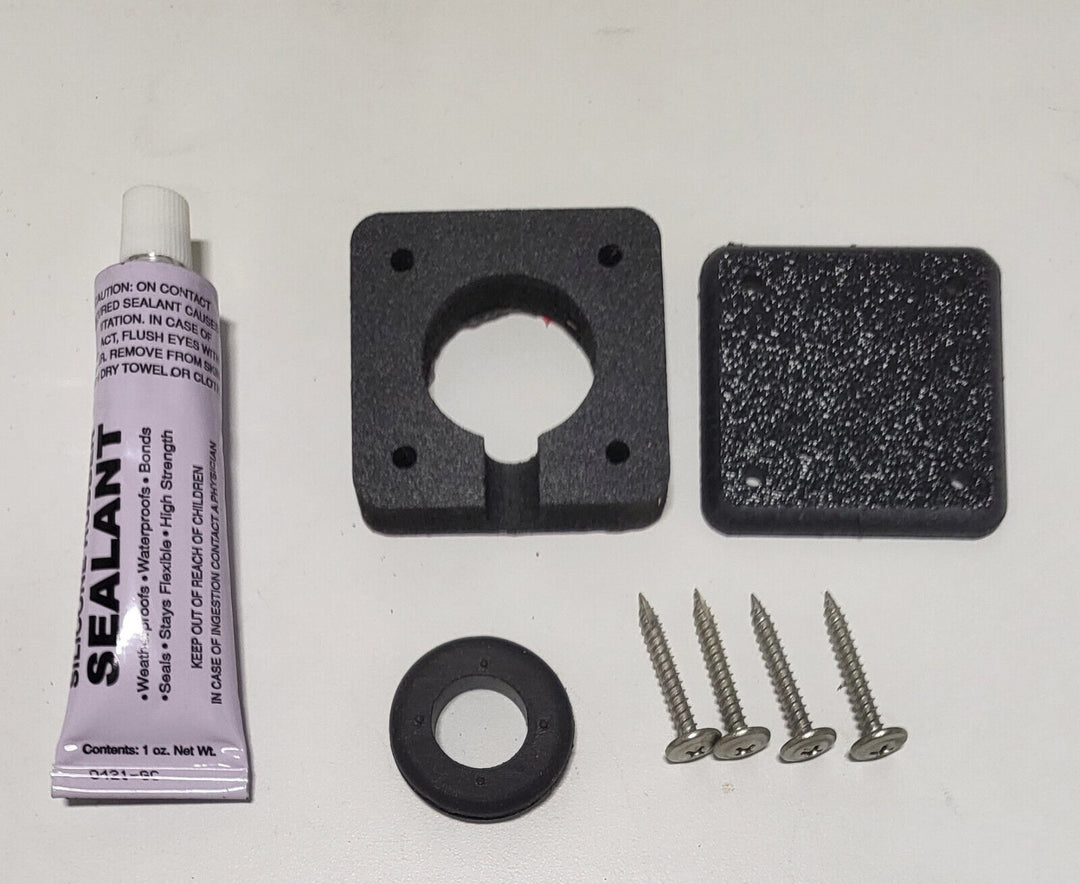

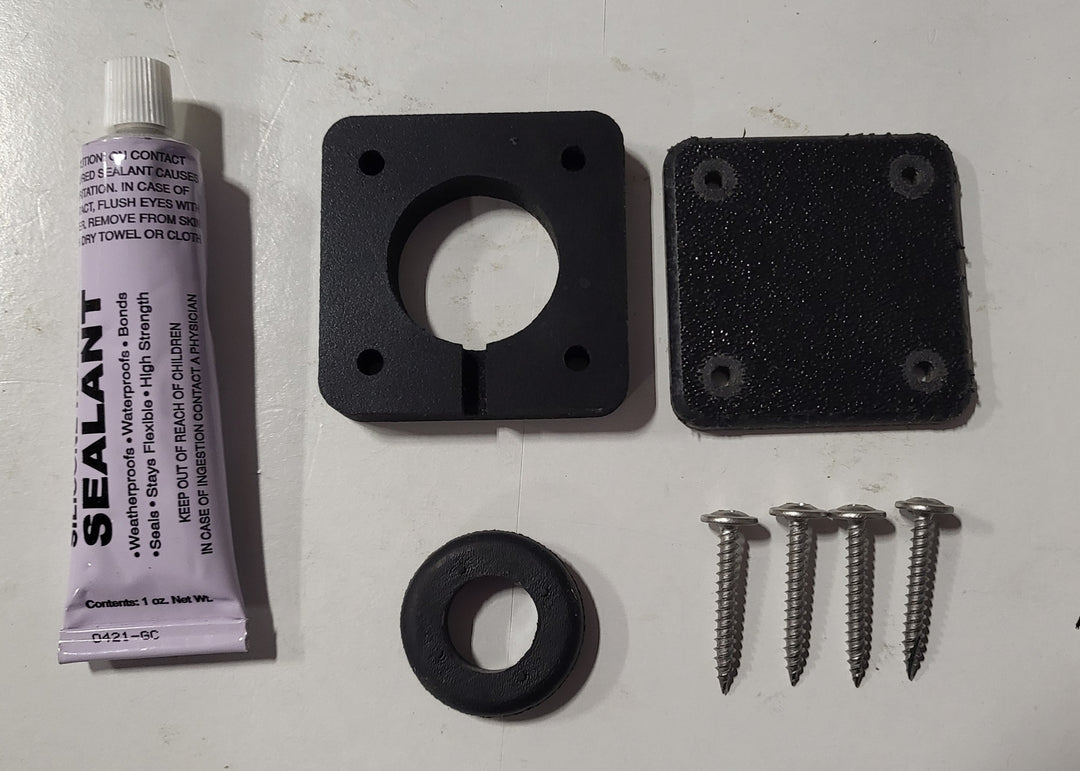

Low profile Starlink entry puck. VHB mounted base and matching cap plate. Comes with rubber grommet to protect wires from edge of hole cut into roof, 4 self drilling screws and sealant for around wires and between base and cap.
Locate and drill hole in van roof. Prime edge of hole and install grommet. Peel backing off VHB and center base over hole. Apply sealant in wire troughs and on top of wires and on face of base. Place cap on top of base and secure with screws. Drilling 1/16 diameter pilot holes in roof for screws is recommended. Wipe off excess sealant. Cover with Dicor or equivalent if desired. Not required.
Puck is 2 1/4 inch x 2 1/4 inch. Drill hole is 1", wire hole is .375 OD or .1875 OD.
