Ford Transit Rail Mounting Brackets V2 for use with 8020– Built for Strength & Easy Installation of Solar Panels & More!
Take your Ford Transit van build to the next level with our V2 Rail Mounting Brackets for use with 8020. Engineered for seamless compatibility with 8020 aluminum extrusion, these brackets provide a strong and secure mounting solution for your DIY van conversion.
✅ Perfect Fit for Ford Transit – Designed specifically for Transit models, ensuring a precise fit. Compatible with all roof heights and van lengths.
✅ 8020 Compatible – Ideal for creating sturdy, custom-built structures inside your van.
✅ Durable & High-Quality – Made from premium materials for long-lasting strength.
✅ Easy Installation – Mounts quickly with minimal tools, saving you time and effort.
Specifications:
- Sold as a pair.
- Allow for use of 1 1/2 square aluminum structural extrusions (8020 1503-LS recommended) as roof rails on full sized Transit vans
- Center to center distance between the rails is 58.5"
- Cross bars between 8020 rails are 57"
- The rails are positioned high enough for a crossbar attached to the inside (not on top) of the rail and will clear the center of the roof by 3/8". This provides a much cleaner look from the side.
- Panels can be mounted at the same elevation as the crossbars and rails with our 2-hole and 3-hole tabs.
- Finish is black or clear hard anodizing.
All hardware for attaching the 8020 rails to the bracket and bracket to the Ford Transit van are included. The 80/20 rails are NOT included nor any other mounting accessories for the rails. Please see separate listing for 80/20 bars or rail kit including brackets, towers and rails.
There are many other options and possibilities for custom rack designs. Please contact Hein at 541-490-5098 for help designing a solar layout to fit your needs. Then we can supply a complete kit (less panels) for your system.
There is a drawing in the images above that will allow you to determine how long the rails need to be for your van.
CAUTION: Do not exceed maximum roof loading as recommended by vehicle manufacturer.
Whether you're building a campervan, adventure rig, or work van, these brackets give you the flexibility and reliability you need. Order yours today and start your van upgrade!
Shop our Ford Transit Rail Mounting Brackets V2 for us with angle rails at https://diyvan.com/products/transit-rail-mounting-brackets-v2-angle.
If you have questions about this product you can call Hein at 541-490-5098.

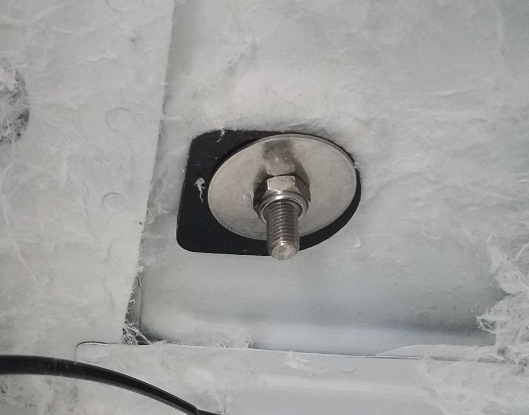

Notes for special 6th Tower for Extended van: The OEM tower location on an extended van is quite far forward from the back of the van. This causes a long cantilever if the roof rails are extended towards the rear. This special kit includes a CNC'd pad that is bonded to the roof using 3M Windoweld, 5200 (or equivalent) in the area with two diagonal holes in the roof. A special tower is then placed on top of the pad and through bolted using one of the holes with larger washer and nut on inside.
WARNING!
Failure to follow warnings below may allow rack to come loose from vehicle and cause injury or death.
- Do not exceed 40 lbs load on each tower.
- Do not extend any component more than 4" beyond forward or rearward most towers.
- Do not exceed total allowable load by vehicle manufacturer.
- Use all available attachment points on van roof.
- Do not install roof top deck or climb on rack.
- Check and tighten all hardware after 100 miles and every 500 miles there-after.
- Check overall integrity of rack every 500 miles or monthly whichever is more frequent.
If in doubt, please submit rack plans or photos for evaluation prior to final installation or use.
DISCLAIMER: Owner and/or installer assumes all risks associated with products and/or components purchased from DIYvan. Owner and/or installer recognizes and agrees that this product, and any of its component parts, is sold “as is” and that DIYvan makes no representation or warranty of merchantability that the product is fit for any particular purpose.
