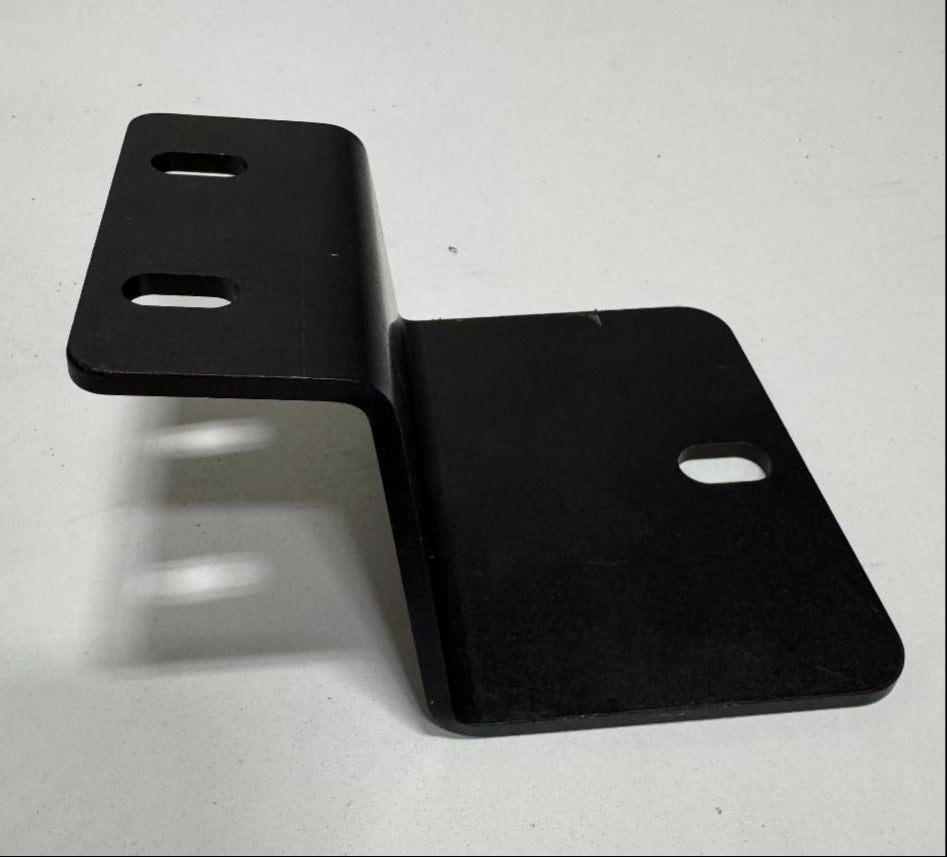

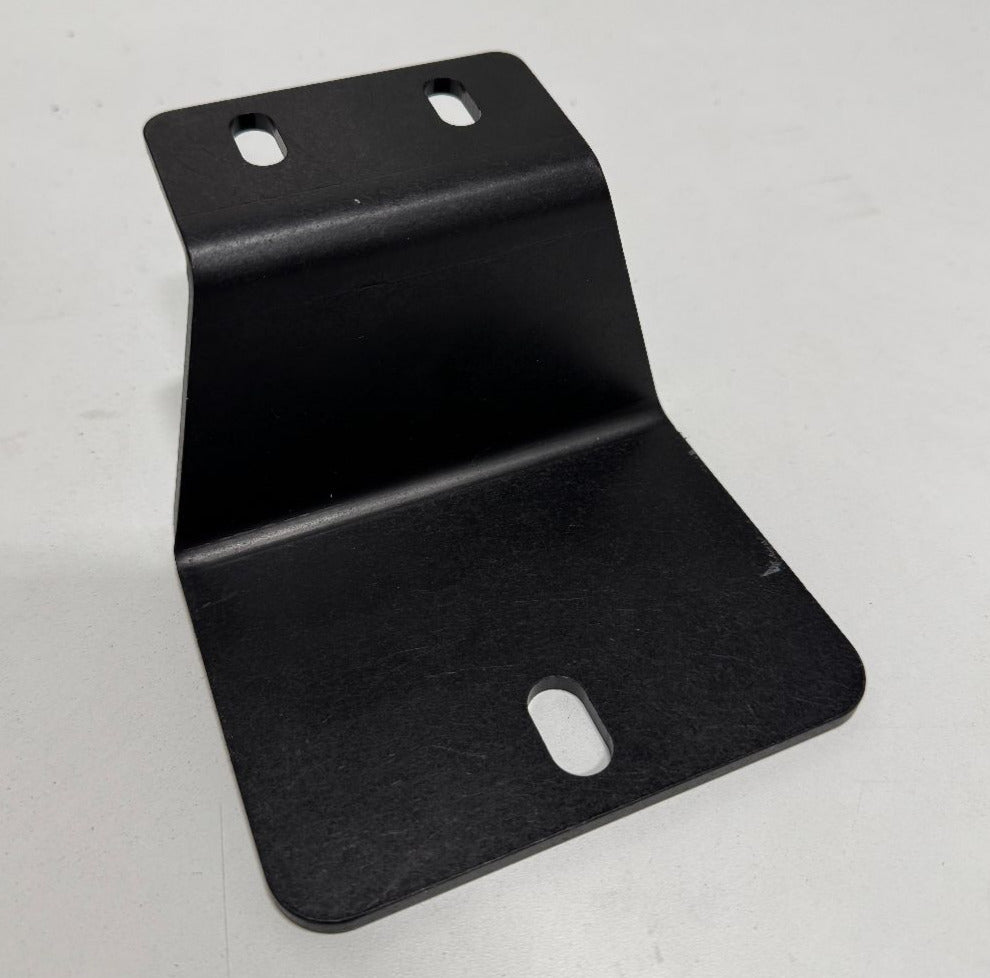

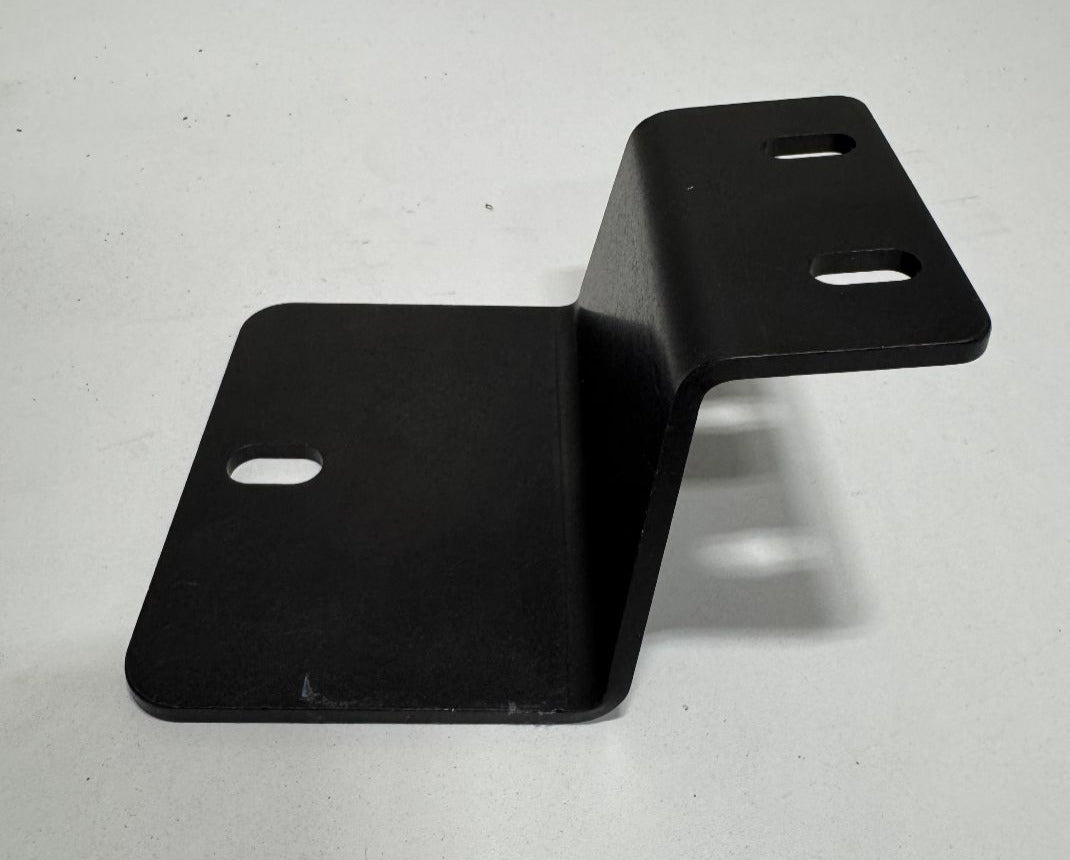

Sold as a pair. These brackets allow for use of 2" x 2" x 3/16" angle to be used as roof rails on full sized Transit vans. Compatible with all roof heights and van lengths. This provides a much cleaner look from the side. This variation functions the same as our standard Transit tower brackets while adding additional width for larger solar panels or adding some extra width for longer crossbars.
Angled rail kit distance between the rails
Maximum distance for crossbars or panels 63 1/16
Minimum distance for crossbars or panels 59 3/8
80/20 Crossbars distance between the rails
Min/Max 62 1/16
There are many other options and possibilities for custom rack designs. Please contact us for help designing a solar layout to fit your needs. Then we can supply a complete kit (less panels) for your system.
Finish is black or clear hard anodizing.
An order quantity of 1 will equal 2 tower brackets.
All hardware for attaching the rails to the bracket and bracket to van are included. The rails are not Included nor any other mounting accessories for the rails. Please call or write for assistance.
Do no exceed maximum roof loading as recommended by vehicle manufacturer.
Angle rails are NOT included. Please see separate listing for 80/20 bars or rail kit including brackets, towers and rails.
If you have questions about this product you can call Hein at 541-49O-5O98
Please consider our other items
DISCLAIMER
Failure to follow warnings below may allow rack to come loose from vehicle and cause injury or death.
Do not exceed 40 lbs load on each tower.
- Do not extend any component more than 4" beyond forward or rearward most towers.
- Do not exceed total allowable load by vehicle manufacturer.
- Use all available attachment points on van roof.
- Do not install roof top deck or climb on rack.
- Check and tighten all hardware after 100 miles and every 500 miles there-after.
- Check overall integrity of rack every 500 miles or monthly whichever is more frequent.
If in doubt, please submit rack plans or photos for evaluation prior to final installation or use.
Owner and/or installer assumes all risks associated with products and/or components purchased from DIYvan. Owner and/or installer recognizes and agrees that this product, and any of its component parts, is sold “as is” and that DIYvan makes no representation or warranty of merchantability that the product is fit for any particular purpose.
