These fit the inner straight positions. They will not work in the outer rounded positions, see other listing.
Dash Switch adapters for installing rocker switches in VS30 Sprinter dash. (These are not compatible with the NCV3 Sprinter) 3D printed in tough nylon plastic. Use of a relay to carry larger loads is recommended. Not all switches have the same load (Amp) capacity. Refer to drop down list for current ratings.
SPST (single pole single throw) is simple on/off switch (most common)
SPDT (single pole double throw) is on/on switch which can also be used as on/off. These can also be used for 2-way control with another SPDT.
DPDT and DPST (double pole) are essentially two switches tied together and actuated simultaneously. One side can be used as simple on/off switches (same as SPDT or SPST) or to switch both negative and positive at the same time. Also wired as reversing (polarity reversing) switches.
SPDT with center off means the there is a middle position that is not connected to either output

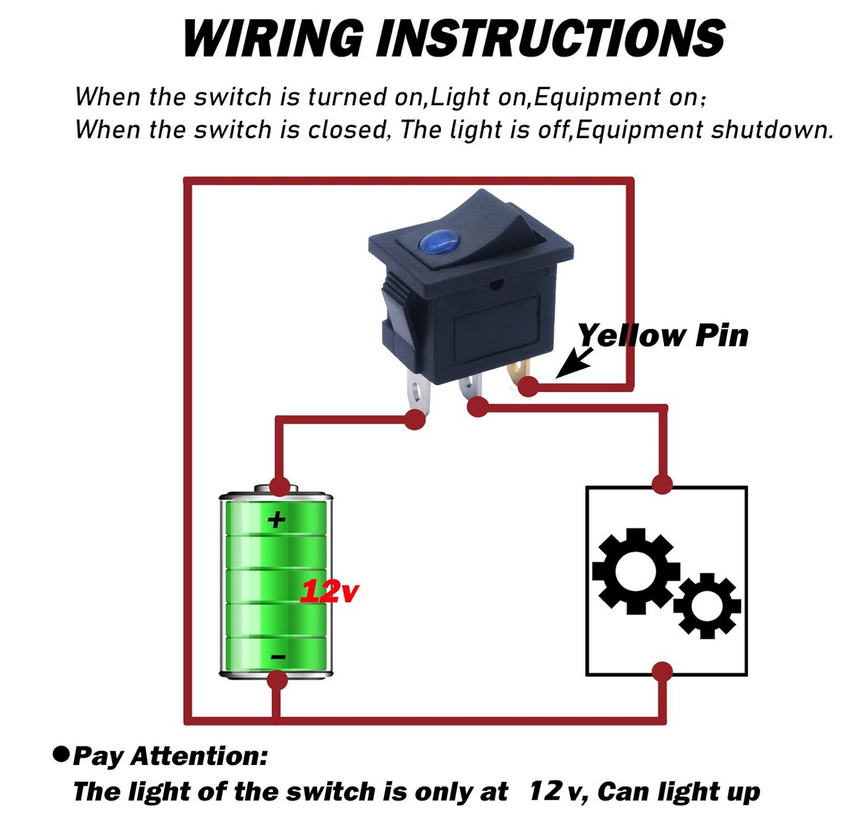

Lighted switches means the light comes on when the load is energized. Refer to photos for proper connections. These will need a ground connection for the light to work.
A quantity of one equals one adapter and one switch.
If you have questions about this product you can call Hein at 541-49O-5O98
