Sprinter Products
Free shipping on most products in the US. DIYvan is there for every step of our Do It Yourself Sprinter Van Conversion with experienced advice and our full Impact Products line including 3M Thinsulate, 80/20 cross bars, solar mounting brackets, storage solutions and roof vent adapters. We are dedicated to helping DIY and professional up-fitters with their van projects. It is our pleasure to share our engineering and fabrication knowledge and experience to help you complete your build and enjoy your van in comfort, safety and efficient style.
Please let us know which battery you are using by leaving a message on your order.
Van owner and/or installer recognizes and agrees that this product, and each of its component parts, is sold "as is" and that seller makes no representation or warranty of merchantability that the product is fit for any particular purpose.
Pair with our Insulated Vent Fan Cover and Maxxair Mini Vent Non Powered
This fits a 14" x 14" opening. The adapters in the listing are centered on the roof line. If you need an offset adapter please fill out our form.
Click here for our custom adapter inquiry form.

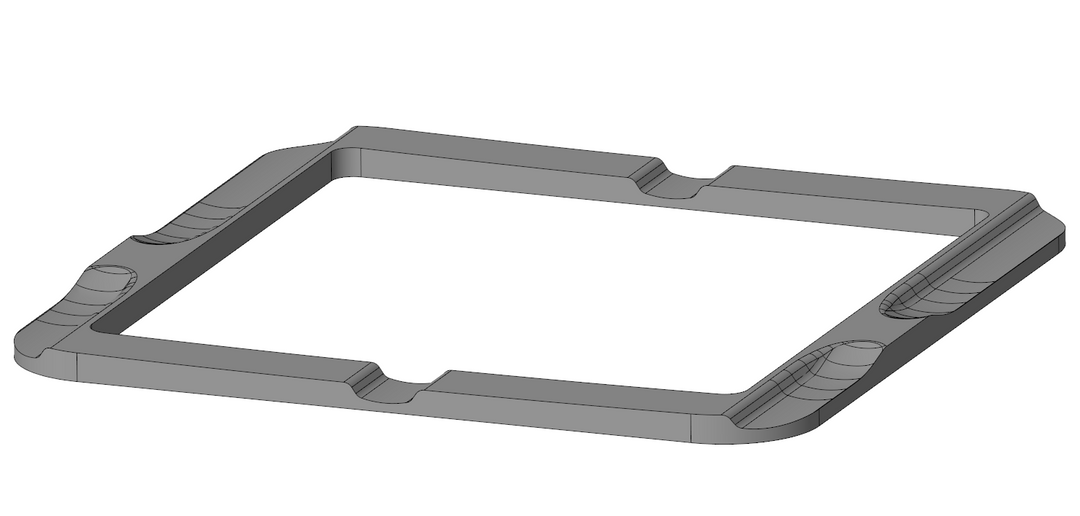

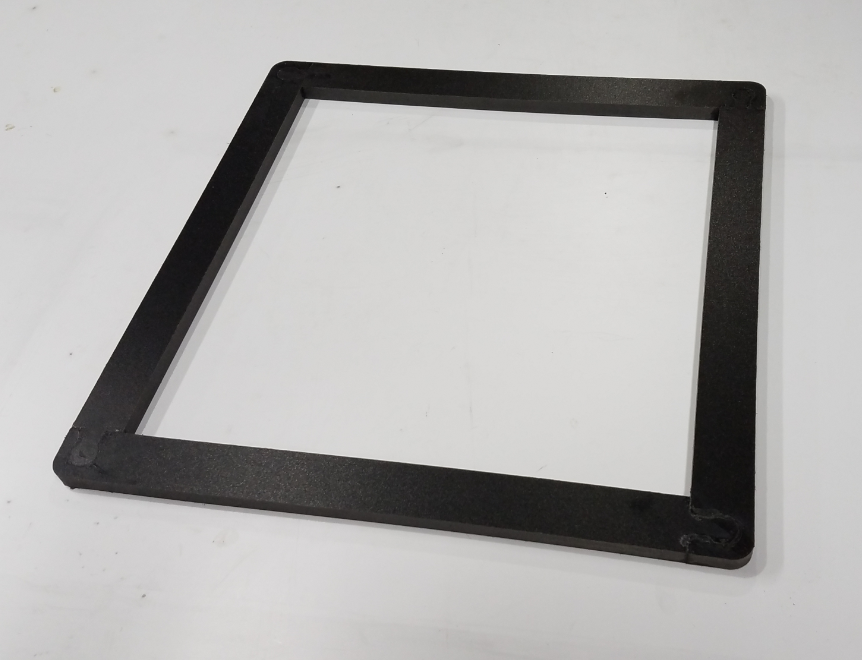

Patent Pending adapter matches the contour of the OEM roof so a standard RV style vent mounts to a flat surface. Prevents distorting the roof sheet metal or vent flange and can be used as an aid for locating the fan. They are CNC machined out of UV and fire resistant expanded PVC. The fan mounts to the outside adapter. Fan adapters works with the Maxxair Mini Vent Non Powered Fan.
We make adapters to fit air conditioners and adapters for offset locations. Please contact us so we can verify size and location.

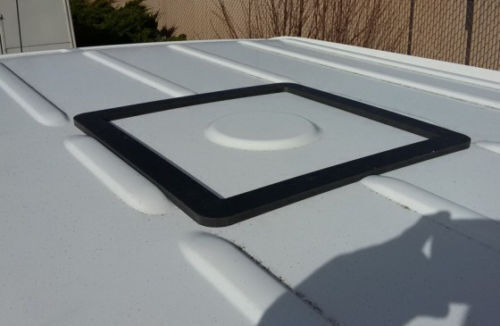

Roof Vent Adapter Install TipsWe recommend Sikaflex 221. Locate and cut the 14 x 14 hole. You can use the adapter as a guide to mark the hole. Stay clear of roof support beams.
Make a tape line 1/4" beyond the adapter perimeter.
De-gloss the area with a Scotch-brite pad. No need to scuff, just dull the paint. Clean with isopropyl alcohol and let dry thoroughly. Blow dryer if it's wet and/or cold out.
Apply three 1/8" beads of the Sikaflex on the face of the adapter. Then, press the adapter down onto the roof until the adhesive oozes out the sides. It's not necessary to clamp. If you do, use several lightly set clamps and spread out the clamp force over the whole surface area.
Using the adhesive that oozes out, make a fillet around the adapter with a double gloved finger. Pull the tape within 15 minutes. Cure is fast on outside. Let cure overnight and then proceed with the fan install.
If you purchased our Interior Framing Strips, using the hole that you cut locate where the transverse strips need to be placed on the longitudinal strips. Assemble the interior frame with the 2" screws provided. Once the frame is assembled it will be glued to the interior side of the roof using Sikaflex 221. If the strips ordered are not bay specific, then you may need to cut them to the length of the panel you are installing it in.
We recommend using butyl tape for the fan install. Cover the fan flange with 1" wide tape. Place the flange onto the adapter and press down. Then drill pilot holes through the adapter and into the van roof. You may need the 4 longer screws provided for the corners. Tighten all screws very lightly against the fan flange. Some butyl will ooze out which you can trim off.
Coat the fan flange, adapter and onto the roof about 1/2" with self-leveling Dicor or brush-on Flexseal. Some sealants will melt the fan plastic so you might try it on a portion of the interior bezel first. You will cut a lot of that piece off.
Good idea to check the integrity and reapply the sealant every so often.
**Please note, if you purchased butyl tape with this order and the butyl tape is stuck to the plastic, place it in the freezer for 15 or 20 min. It will release, then let it return to room temperature.
If you have questions about this product you can call Hein at 541-49O-5O98
Disclaimer
Van owner and/or installer assumes all risk associated with roof top mounted items and/or components. Van owner and/or installer recognizes and agrees that this product, and each of its component parts, is sold “as is” and that seller makes no representation or warranty of merchantability that the product is fit for any particular purpose.
If you have questions about this product you can call Hein at 541-49O-5O98
DISCLAIMER:
Van owner and/or installer assumes all risk associated with roof top mounted items and/or components. Van owner and/or installer recognizes and agrees that this product, and each of its component parts, is sold "as is" and that seller makes no representation or warranty of merchantability that the product is fit for any particular purpose.
DISCLAIMER: Van owner and/or installer assumes all risk associated with roof top mounted items and/or components. Van owner and/or installer recognizes and agrees that this product, and each of its component parts, is sold “as is” and that seller makes no representation or warranty of merchantability that the product is fit for any particular purpose.

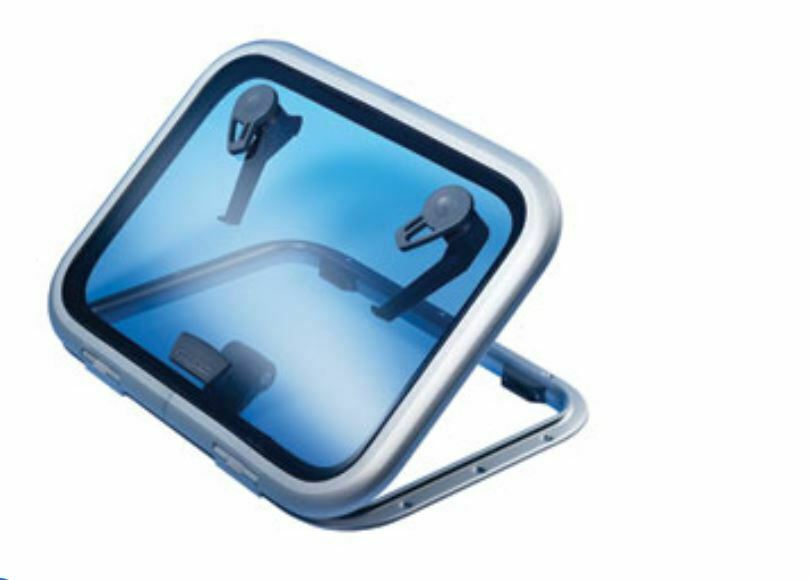

Adapter Install procedure: We recommend Sikaflex 221 or 3m Window-weld adhesive. Locate and cut the hole. You can use the adapter as a guide to mark the hole. Stay clear of roof supports, obviously. Make a tape line 1/4" beyond the adapter perimeter. De-gloss the area with a Scotch- brite pad. No need to scuff. Just dull the paint. Clean with isopropyl alcohol and let dry thoroughly. Blow dryer if it's wet and/or cold out. Apply a good amount of the Window-weld on the face of the adapter. Then press the adapter down onto the roof until the adhesive oozes out the sides. It's not necessary to clamp. If you do, use a lot of lightly set clamps and spread out the clamp force over the whole surface area. Using the adhesive that oozes out, make a fillet around the adapter with a double gloved finger. Pull the tape within 15 minutes. Cure is fast on outside. Let cure overnight and then proceed with the hatch install per the hatch instruction. Seal the adapter and onto the roof about 1/2" with brush on bed-liner or Flexseal from the TV guy works well. Good idea to check the integrity and reapply the sealant every so often. Dicor self leveling sealant also works but looks a little messy.
DISCLAIMER

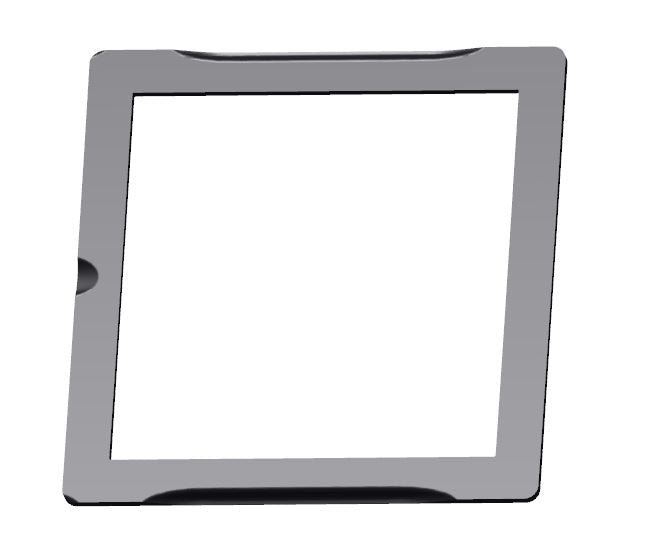

"Rear Adapter" is for a 144 WB
"170 most rear" is for the rear of a 170 WB
"170 ext most rear" is for the rear of a 170 extended WB
The option with butyl tape includes 64" of butyl tape. If the butyl tape is stuck to the plastic, put it in the freezer for 30 minutes. It will release, then let the butyl tape return to room temperature.
Install procedure:
We recommend 3m Window-weld or Sikaflex 221 adhesive. Locate and cut the 14 x 14 hole. You can use the adapter as a guide to mark the hole. Stay clear of roof supports, obviously. Make a tape line 1/4" beyond the adapter perimeter. De-gloss the area with a Scotch- brite pad. No need to scuff. Just dull the paint. Clean with isopropyl alcohol and let dry thoroughly. Blow dryer if it's wet and/or cold out. Apply three 1/8" beads of the Window-weld on the face of the adapter. Then press the adapter down onto the roof until the adhesive oozes out the sides. It's not necessary to clamp. If you do, use a lot of lightly set clamps and spread out the clamp force over the whole surface area. Using the adhesive that oozes out, make a fillet around the adapter with a double gloved finger. Pull the tape within 15 minutes. Cure is fast on outside. Let cure overnight and then proceed with the fan install. We recommend using butyl tape for the fan install. Cover the fan flange with 1 1/8" wide tape. Place onto of adapter and press down. Use the screws that came with the fan, you may need the longer screws that we provide for the 4 corners. Tighten them very lightly against the fan flange. Some butyl will ooze out which you can trim off. Seal the adapter and onto the roof about 1/2" with Dicor self leveling sealant or Flexseal from the TV guy works well. Good idea to check the integrity and reapply the sealant every so often.
Thank you.
Van owner and/or installer assumes all risk associated with roof top mounted items and/or components. Van owner and/or installer recognizes and agrees that this product, and each of its component parts, is sold ?as is? and that seller makes no representation or warranty of merchantability that the product is fit for any particular purpose.
BATTERY BOXES are Powder Coated!
If you have questions about this product you can call Hein at 541-490-5098 or text him.
Van owner and/or installer assumes all risk associated with roof top mounted items and/or components. Van owner and/or installer recognizes and agrees that this product, and each of its component parts, is sold ?as is? and that seller makes no representation or warranty of merchantability that the product is fit for any particular purpose.
Roof fan 12 Volt Winglet
This electric fan from G&C ensures a healthy discharge of air in your automobile.
This roof fan only extracts!
The roof fan is made of ABS. The voltage is 12 Volts and the consumption is 3 Watts.
The noise level is 32 DB. The airflow is 65 M³/H. The fan comes standard with an interior grill, shutter and saw template.
By using the 2-way switch you can turn this fan on and off, not included.
The opening in the roof is 80 mm. Construction height is 64 mm.
The fan is available in black.
* material: high quality ABS
* Function: extract air
* Opening in roof: 80 mm
* Construction height: 64 mm
* air displacement: 65 M³ per hour
Van owner and/or installer assumes all risk associated with roof top mounted items and/or components. Van owner and/or installer recognizes and agrees that this product, and each of its component parts, is sold ?as is? and that seller makes no representation or warranty of merchantability that the product is fit for any particular purpose.
Sold as a pair.

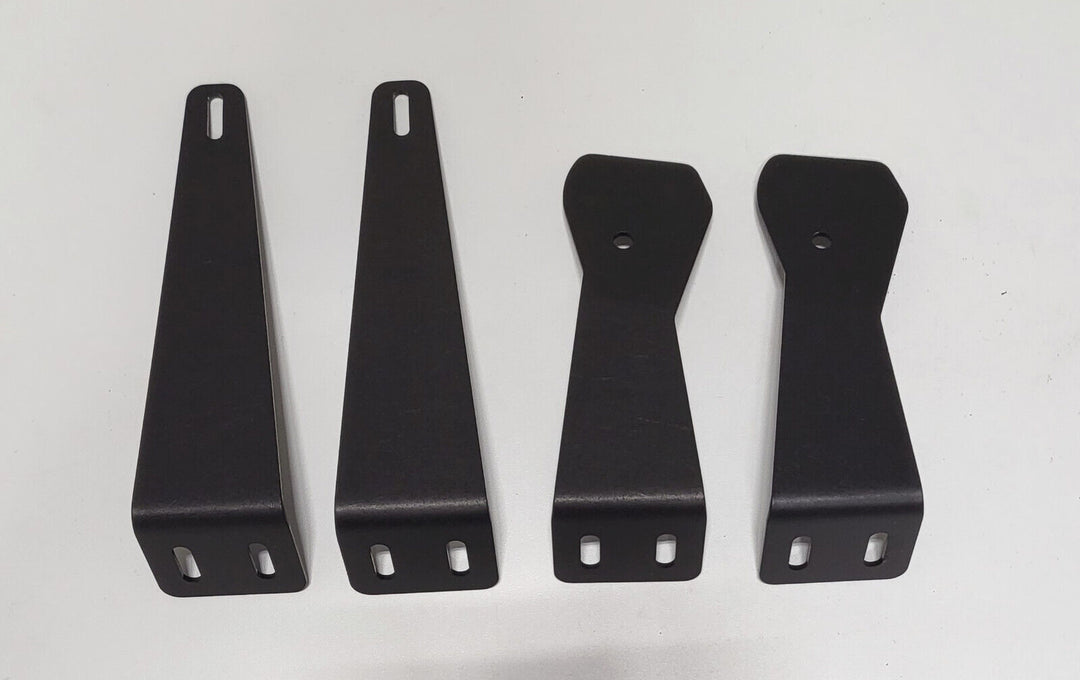

Tower Brackets are NOT included.
Please call Hein for technical support. 54I 49O 5O98
Disclaimer
Van owner and/or installer assumes all risk associated with roof top mounted items and/or components. Van owner and/or installer recognizes and agrees that this product, and each of its component parts, is sold “as is” and that seller makes no representation or warranty of merchantability that the product is fit for any particular purpose.
DISCLAIMER
Failure to follow warnings below may allow rack to come loose from vehicle and cause injury
or death.
1. Do not exceed total allowable load by vehicle manufacturer.
2. Use all available attachment points on van roof.
3. Do not install roof top deck or climb on rack.
4. Check and tighten all hardware after 100 miles and every 500 miles there-after.
5. Check overall integrity of rack every 500 miles or monthly whichever is more frequent.
If in doubt, please submit rack plans or photos for evaluation prior to final installation or use.
Van owner and/or installer assumes all risk associated with roof top mounted items and/or components. Van owner and/or installer recognizes and agrees that this product, and each of its component parts, is sold as is and that seller makes no representation or warranty of merchantability that the product is fit for any particular purpose.

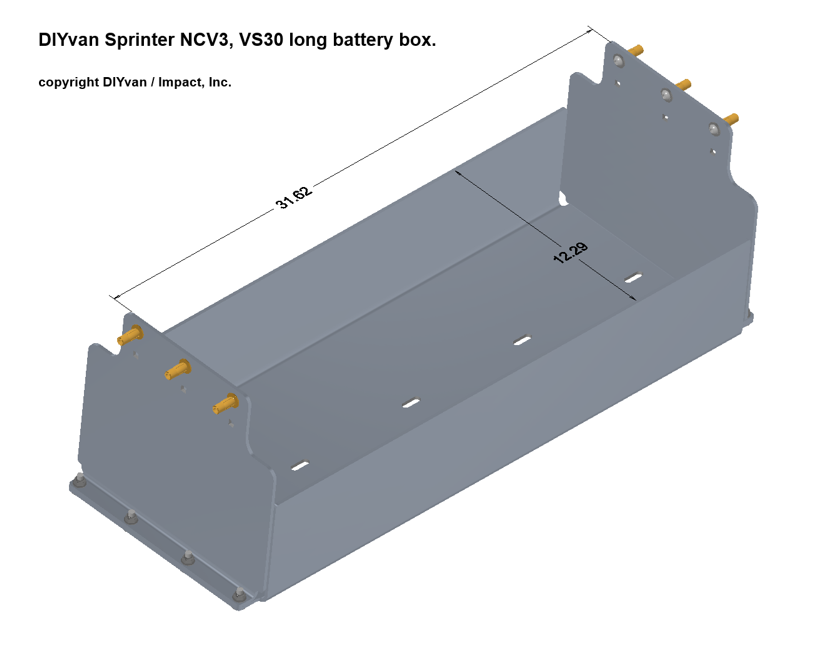

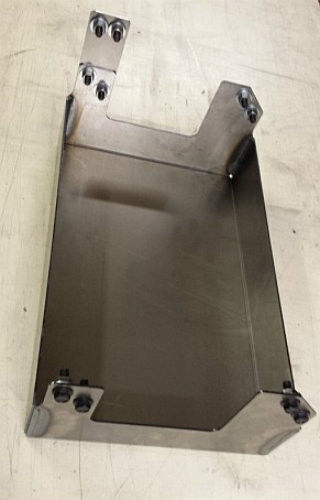

The battery box fits under the chassis on the drivers side next to the fuel tank.
