Maxxair Dome Adapter for Sprinter High Roof

Maxxair Dome Adapter for Sprinter High Roof

$44.65

Description

Center and Off Center is in reference to the center line of the roof.

The off center measurement is from the center line of the van to the center of the hole. In some cases we talk about it being center on rib 1 or rib 2. For this please treat the center rib on the center line of the roof as "0", next rib over is "1" and the next is "2".

Patent Pending adapter matches the contour of the OEM roof so the Maxxair Dome mounts to a flat surface. Prevents distorting the roof sheet metal or vent flange and can be used as an aid for locating the fan. They are CNC machined out of UV and fire resistant expanded PVC. The fan mounts to the outside adapter. The adapter ID is 7" and the OD is 10.5"

Inside Backing frames are flat with not ribs.

If you have questions about this product you can call Hein at 541-49O-5O98

Van owner and/or installer assumes all risk associated with roof top mounted items and/or components. Van owner and/or installer recognizes and agrees that this product, and each of its component parts, is sold ?as is? and that seller makes no representation or warranty of merchantability that the product is fit for any particular purpose.

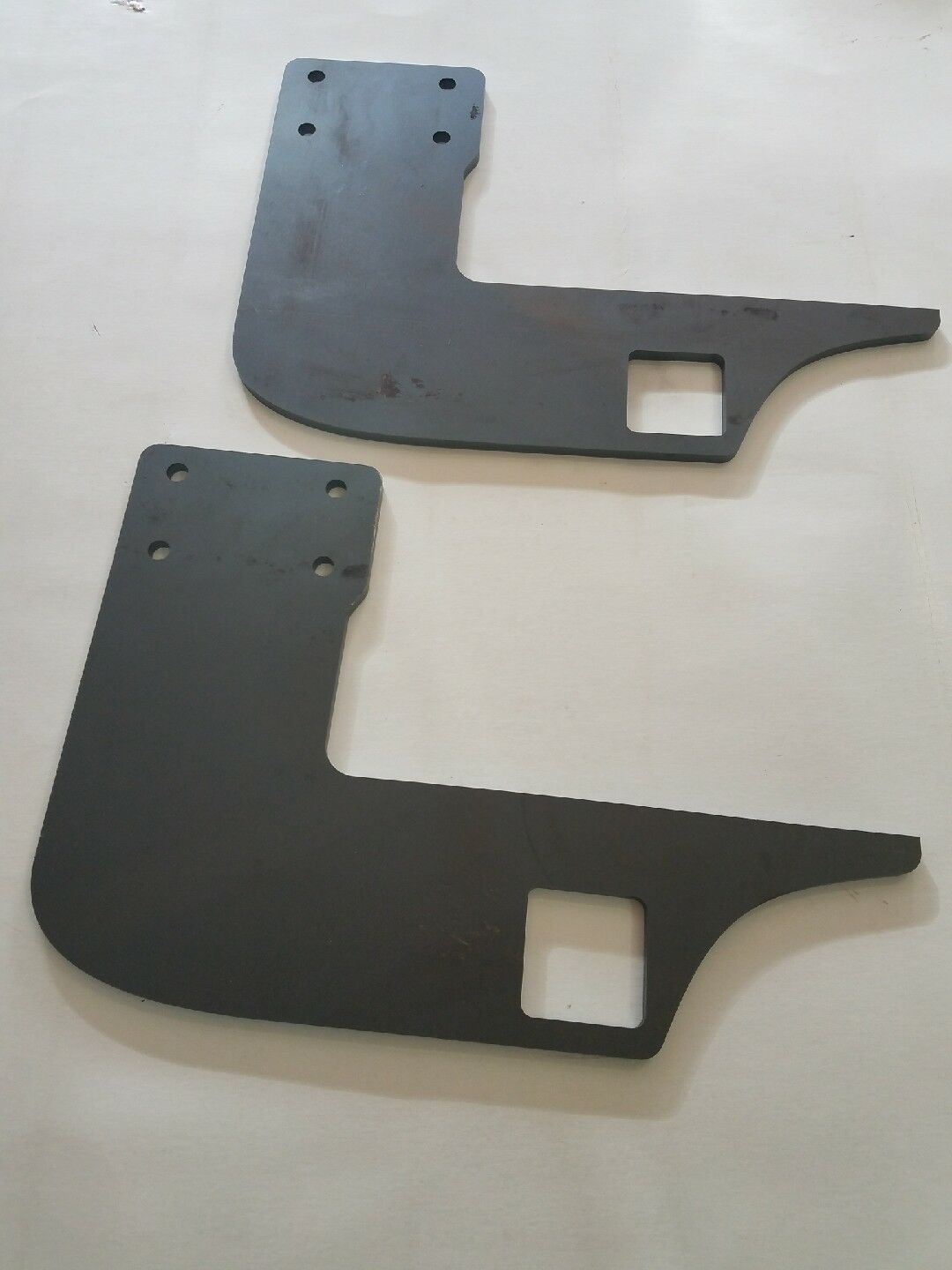

Set of Sprinter Hitch Arms

$205.52

Description

For NCV3 and VS30 model Sprinter vans with OEM step AND an aftermarket 2" receiver hitch. These custom designed arms allow for consolidation of OEM step bumper with aftermarket receiver into one compact weldment. Tucks receiver tube up closer (higher) and more under the OEM step than most aftermarket hitches. Increases approach angle and reduces hitch drag. Arms are 3/8" thick mild steel plate. Set of two unpainted arms included. Installation requires cutting and welding heavy steel parts.

We suggest using a Draw-Tite 75601 receiver.

How to steps:

1. Remove plastic rivets attaching step cover to step support frame underneath. Then remove (unbolt) OEM step support frame and after-market receiver from vehicle.

2. Remove arms from formed metal step support piece by grinding the welds underneath. See photo.

3. Attach (bolt) new arms (this item) to INSIDE of frame rails on vehicle with existing OEM or aftermarket hitch bolts.

3. Cut arms off of receiver hitch by cutting cross tube just inside of existing arms making sure length of cross tube is at least 1" longer than distance between new arms (this item) bolted to vehicle. Cross tube must pass through square openings by at least 1/2" on both sides.

4. Slip OEM step support piece onto top of new arms (this item) and install plastic push pins into step cover to locate.

5. Slide aftermarket hitch tube into square openings in both hitch arms. Center receiver tube relative to vehicle.

6. Tack weld step support and receiver cross tube in place while on vehicle.

7. Remove assembly and do full 1/4" fillet welds between arms and receiver tube. Complete welding on step support plate with 1" long staggered fillet welds. Seek out an experienced or certified welder if not confident of DIY welding ability.

7. Clean, blast and paint as desired.

7. Bolt entire assembly onto vehicle. Watch for cracked welds or loose bolts after towing.

Towing capacity is not rated. Do not exceed towing limit of vehicle.

If you have questions about this product you can call Hein at 541-49O-5O98

Van owner and/or installer assumes all risk associated with roof top mounted items and/or components. Van owner and/or installer recognizes and agrees that this product, and each of its component parts, is sold “as is” and that seller makes no representation or warranty of merchantability that the product is fit for any particular purpose.

2 hole support tab for longitudinal bar to crossbar connection

2 hole support tab for longitudinal bar to crossbar connection

$18.90

Description

Laser cut, black and clear anodized support tab for longitudinal bar to crossbar connection.

Sold by the each.

If you have questions about this product you can call Hein at 541-49O-5O98

NCV3 Sprinter (2007 - 2018) USB Port and Dash Adapter

NCV3 Sprinter (2007 - 2018) USB Port and Dash Adapter

$48.51

Description

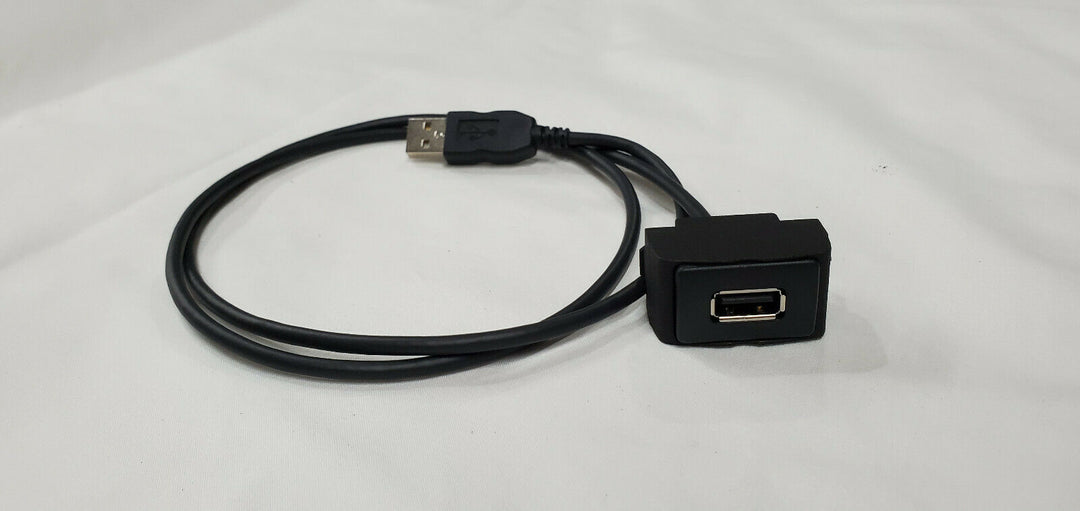

USB Port with adapter for the for NCV3 2007-2018 for installing in the Sprinter dash locations. Adapter is 3D printed in tough nylon plastic.

If you have questions about this product you can call Hein at 541-49O-5O98

Check out our other items!

Rail Clips for solar panel or 8020 crossbar attachment to formed rails

Rail Clips for solar panel or 8020 crossbar attachment to formed rails

$18.00

Description

Patent pending. Laser cut, black anodized rail clip for attaching a solar panel or 8020 to formed rails on Promaster Vans.

Not compatible with the Transit Rack with formed rails. If you have a Transit please order our rail clips with spacers.

If you have questions about this product you can call Hein at 541-49O-5O98

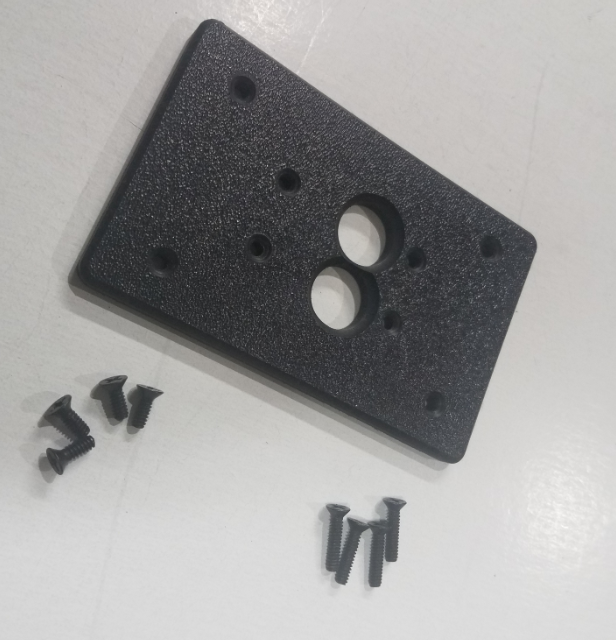

NCV3 Sprinter Dash switch adapter with K1 Otto Switch

NCV3 Sprinter Dash switch adapter with K1 Otto Switch

$34.65

Description

Dash Switch adapters for installing K1 Otto switches in 2007 - 2018 NCV3 Sprinter dash locations. 3D printed in tough nylon plastic. The switches are SPST (on/off).

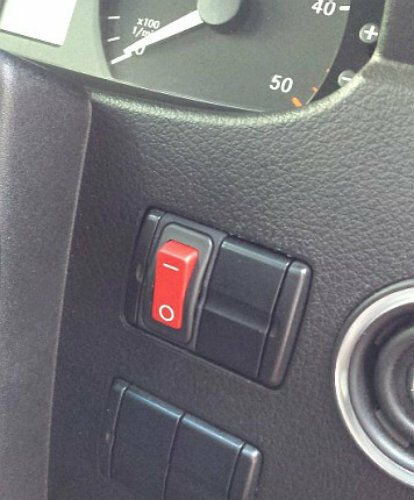

The red switch shown in the dash picture is not available.

If you have questions about this product you can call Hein at 541-49O-5O98

Breaker and Outlet plates

$27.30

Description

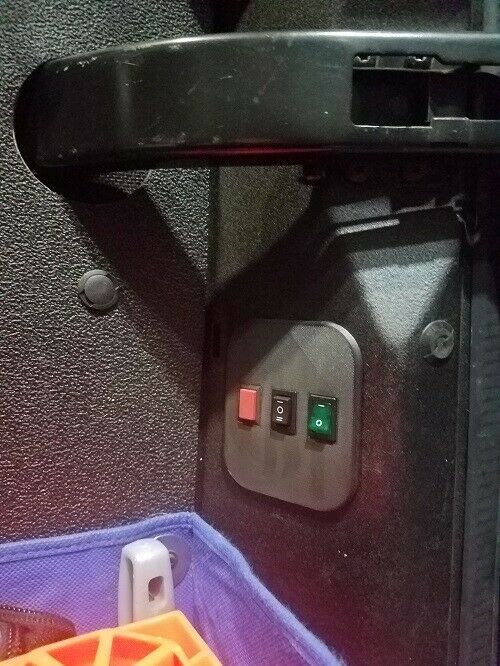

ABS plastic panels for mounting Bluesea A-series toggle breakers in standard 2.38" deep PVC outlet boxes. Mounting screws included.

PLEASE NOTE: Some boxes may not be deep enough to fit the breakers. Search for these items to purchase boxes

single gang: Cantex 5133463

double gang: Cantex 5133371

Double pole version is typically used directly after shore power connection. Panel has two small holes for Bluesea green and red LEDs that indicate power on and reverse polarity. Refer to wiring diagram on how to connect LEDs, load, neutral and ground.

Bluesea red LED 8066

Bluesea green LED 8034

Single pole with outlet version can be used downstream of inverter. Load goes through breaker, with neutral and ground connected to outlet.

Refer to Bluesea wiring diagrams and ABYC electrical standards to insure proper wiring and connections. Consult qualified electrician if unsure how to wire properly. Incorrect wiring can result in electrocution hazard leading to serious injury or death.

This listing is for the panels only. PVC box, breaker, LEDs and outlets are not included.

If you have questions about this product you can call Hein at 541-49O-5O98

Order our prewired shore power breaker box online at https://diyvan.com/products/prewired-shore-power-breaker-box

Subwoofer mounting panels for NCV3 and VS30 Sprinter Van

Subwoofer mounting panels for NCV3 and VS30 Sprinter Van

$98.18

Description

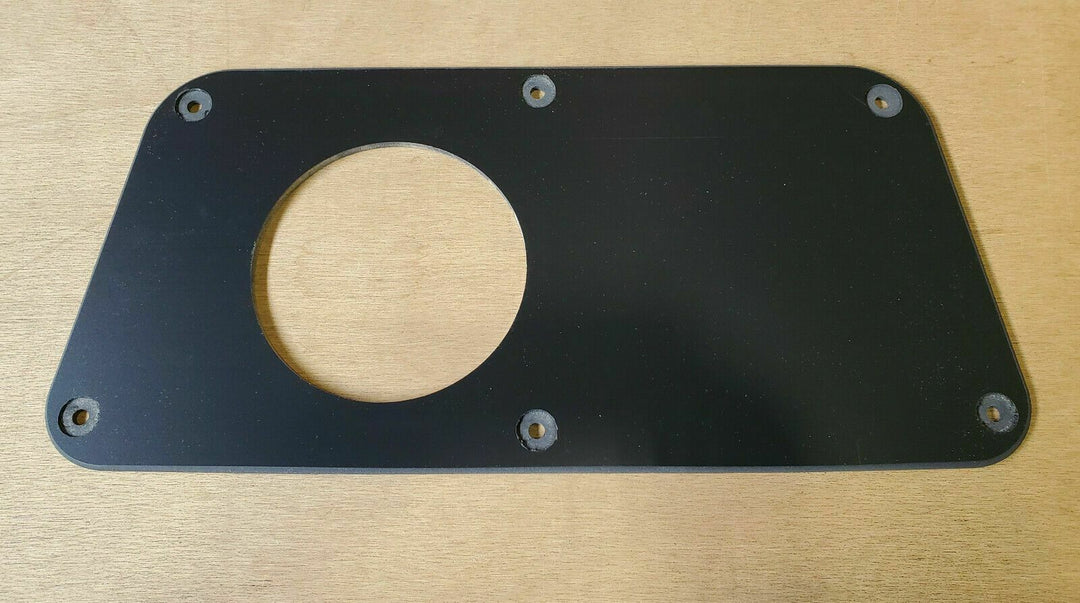

Subwoofer mounting plate for 10" shallow depth speaker. For mounting subwoofer in the 1st or 2nd opening behind driver. Material is expanded PVC that does not absorb water and has low resonance to dampen surrounding sheet metal and improve efficiency.

Please use the cut out diameter of your speaker to choose the size. If you don't see the size you need, please contact us.

Speaker not included.

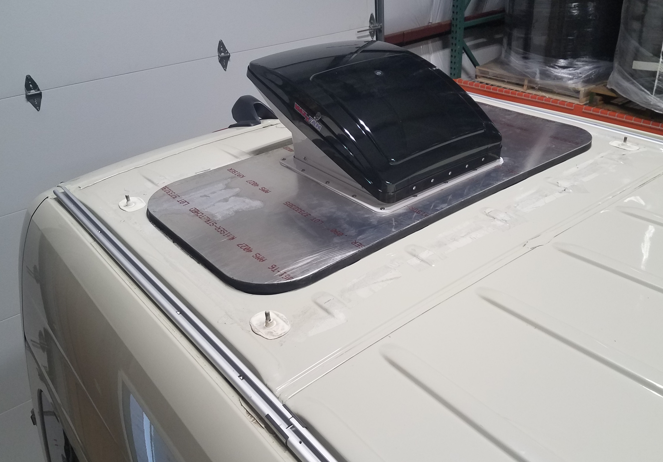

VS30 (2019 +) Sprinter Roof A/C Delete Plate w/RV Vent Fan Hole or Without Hole

$378.00

Description

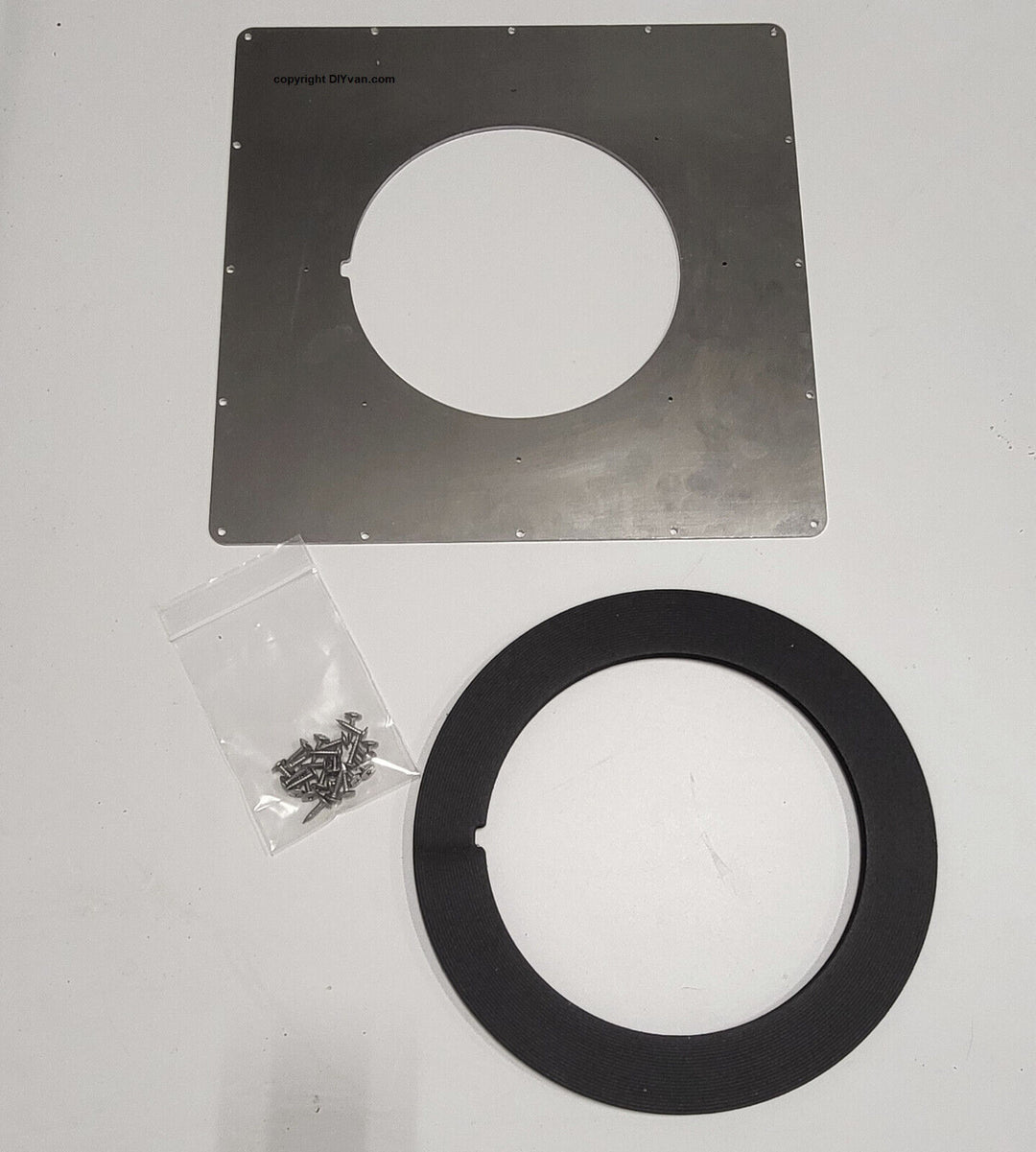

Aluminum plate and spacer strips for covering OEM AC hole on Sprinter VS30 (2019 to present) with factory installed roof AC. Plates are .090 thick unfinished aluminum. Strips are PVC based plastic. Vent hole is 14x14.

This Plate will NOT work on the NCV3 (2007-2018) Sprinter.

Notes:

Assembled (recommended) version comes with all strips bonded to plate. Ready to install on vehicle.
Un-assembled version requires strips to be bonded to plate. See instructional videos below.
A urethane structural adhesive is required to make all bonds between strips plate and vehicle.
recommended products: 3M Windoweld, Dupont Betaseal U-458plus, Sikaflex 221
Plate is unpainted but can be painted to match vehicle.
5. RV vent flange is mounted with butyl tape provided.
Membrane sealant or tape recommended over the top of all seams recommended products: Dicor self leveling sealant or 3M 4412-N extreme sealing tape.

Best way to understand this product and installation is to watch these three videos.

Please text Hein for technical support. 541 49O 5O98

Van owner and/or installer assumes all risk associated with roof top mounted items and/or components. Van owner and/or installer recognizes and agrees that this product, and each of its component parts, is sold “as is” and that seller makes no representation or warranty of merchantability that the product is fit for any particular purpose.

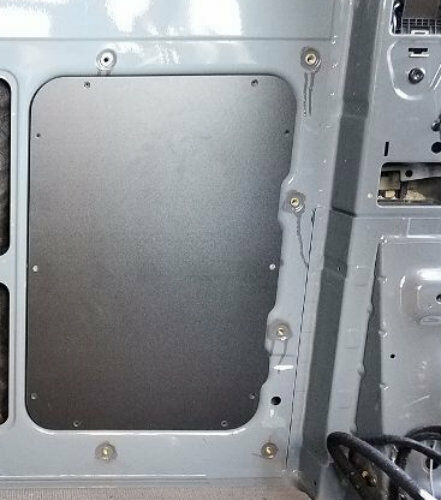

Lower Wall Panels for VS30 Sprinter Van 2019 to present

Lower Wall Panels for VS30 Sprinter Van 2019 to present

$550.00

Description

Lower Wall Panels for VS30 Sprinter Van 2019 to present

All are precision CNC machined from OEM CAD data. Automotive grade standard removable push pins are included to attach the panels to OEM holes. No drilling or screws or new holes required. Panels can be removed for service. Surface of panel is counter-bored for head of push pin which greatly improves appearance. Very much an OEM look. The push pins are black but could be DIY painted to match panel colors.

Plastic lower wall panels are a great easy install option for your build. Then finish out with your preferred look on the upper panels and headliner. Longer push pins or alternate attachment method would be needed if upholstery is applied.

The selection of All Lower will include the lower wall panels, slider door panel and the rear door lower panels.

Some minor scratching could occur in shipping. Also available to pick up, please call Kim to arrange prior to ordering. 541-49O-4292

If you have questions about this product you can call Hein at 541-490-5098

Lower Wall Panels for NCV3 Sprinter Van 2007 to 2018

Lower Wall Panels for NCV3 Sprinter Van 2007 to 2018

$550.00

Description

Lower Wall Panels for NCV3 Sprinter Van 2007 to 2018

All are precision CNC machined from OEM CAD data. Automotive grade standard removable push pins are included to attach the panels to OEM holes. No drilling or screws or new holes required. Panels can be removed for service. Surface of panel is counter-bored for head of push pin which greatly improves appearance. Very much an OEM look. The push pins are black but could be DIY painted to match panel colors.

Plastic lower wall panels are a great easy install option for your build. Then finish out with your preferred look on the upper panels and headliner. Longer push pins or alternate attachment method would be needed if upholstery is applied.

The selection of All Lower will include the lower wall panels, slider door panel and the rear door lower panels.

Some minor scratching could occur in shipping. Also available to pick up, please call Kim to arrange prior to ordering. 541-49O-4292

Interior Backing Frame for vent installation, Euro size 400mm x 400mm opening

Interior Backing Frame for vent installation, Euro size 400mm x 400mm opening

$55.00

Description

Frame that is used on inside of roof with our patent pending outside vent adapters for a 400mm x 400mm opening. This frame will not work in the rear-most roof panel in the Ford Transit 148WB regular length. We have shorter strips for that application, https://diyvan.com/collections/roof-vent-adapters/products/ford-transit-inside-rear-support-strips-for-148wb-and-130wb

Provides material for screws to engage as they penetrate the roof metal. Made from expanded PVC so will not rot, mold or absorb moisture which is typically found around the vent. 14" x 14" inside opening and 16.75" x 16.75" outside dimensions. Available in two thicknesses. 1/2" and 3/4". 1/2" thickness is more flexible and will bend to fit curvature of roof if needed. 3/4" thickness is more rigid so will need a thicker bead of adhesive to make full contact with interior roof surface. Multiple frames can be stacked to make up difference between skin and head liner. Also see our framing strips if more space between inside of roof and headliner needs to be filled.

These frames are not contoured to the ribs, they are flat. Actual thickness may vary by - 1/8" due to variations in the material.

Instructions for use: bond this frame to the inside of the roof skin with 3M Windoweld(TM), Sikaflex 221, or another equivalent adhesive. Use thick (1/2 - 3/4 inch) bead of adhesive to make up space between inside of roof and frame so it is level on the bottom Let cure and then install vent. Can be used to help clamp our vent adapters to outside and then later installed on inside as backing frame.

Interior Backing frame is not to be used together with the framing strips that we offer on other listings.

Construction and method of assembly is patent pending.

If you have questions about this product you can call Hein at 541-49O-5O98

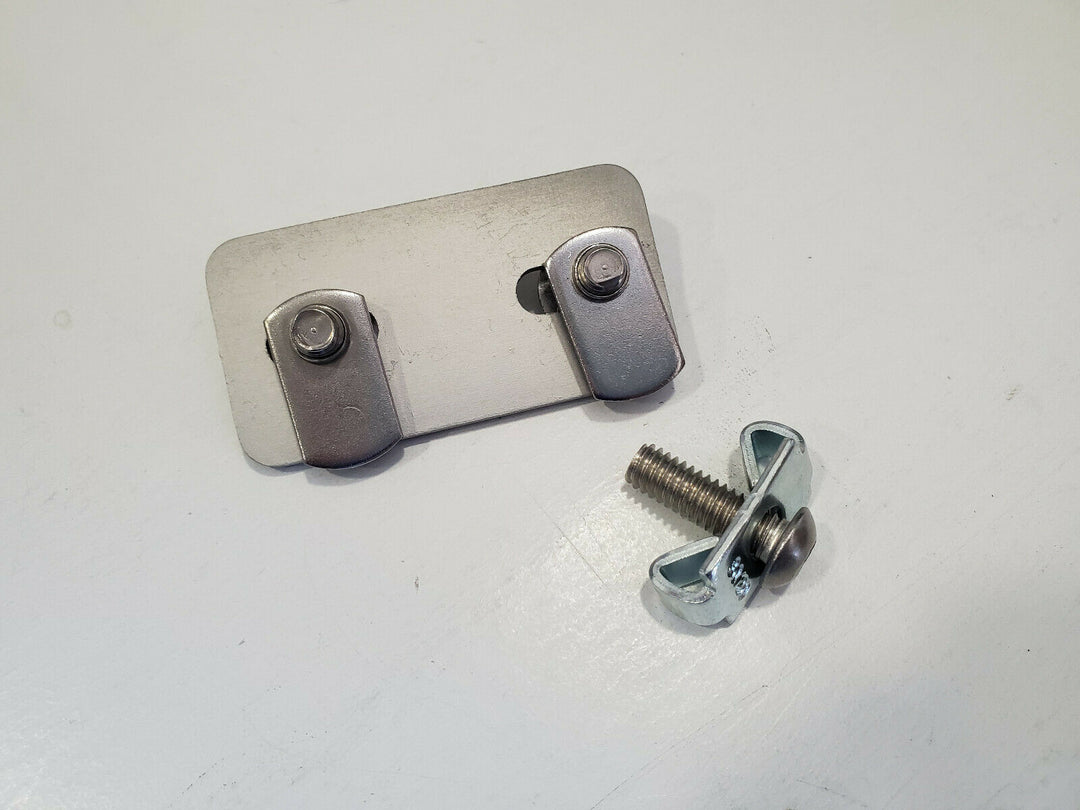

Spacers For Mounting Solar Panels to Angle Rails

Spacers For Mounting Solar Panels to Angle Rails

$14.88

Description

Sold as a pair. Spacer and hardware to raise the solar panel over the bolt head if using Angle for the rail. Works on any van using the angle. See our Ford Transit rail brackets for use with Angle in our store. https://www.ebay.com/itm/133772398061

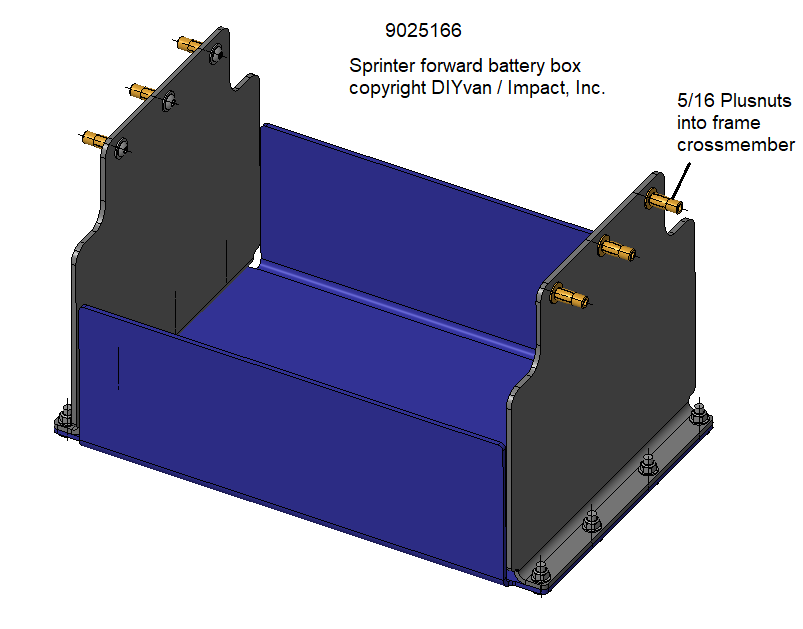

Under vehicle battery box for Sprinter NCV3 and VS30 2500 & 3500 170WB

Under vehicle battery box for Sprinter NCV3 and VS30 2500 & 3500 170WB

$230.00

Description

Under vehicle battery box for Sprinter NCV3 and VS30 2500 170WB and 3500 170WB. Spacious heavy duty formed steel box for single or multiple batteries. Battery tray includes 2 battery hold downs and hardware as shown in pictures. This box holds two GC2 Batteries.

Inside dimension of 2500 battery box is 20" x 13"

Inside dimension of 3500 battery box is 20" x 10.625"

Height is 13" on both.

These are located ahead of the rear tire on either side. These do not fit the 144WB.

Recommended Battery: Battle Born, 100Ah 12V GC2 LifePO4 Deep Cycle Battery.

BATTERY BOX MUST BE PAINTED IF NOT POWDER COATED. Wash the tray with soapy water, dry, then paint the tray before installing. Rustoleum truck bed coating spray or equivalent.

Batteries not included.

Copy and paste for installation help with the 2500 http://www.impact3d.com/170_2500_midship_tray.htm

Van owner and/or installer assumes all risk associated with roof top mounted items and/or components. Van owner and/or installer recognizes and agrees that this product, and each of its component parts, is sold "as is" and that seller makes no representation or warranty of merchantability that the product is fit for any particular purpose.

Under Vehicle Battery Box, Long Version, for All NCV3 and VS30 Sprinters

Under Vehicle Battery Box, Long Version, for All NCV3 and VS30 Sprinters

$366.00

Description

Under vehicle battery box for Sprinter NCV3 2500 and 3500, 144WB and 170WB. Spacious heavy duty formed steel box for 4 batteries. Battery box includes 1 long battery hold down and hardware as shown in pictures.

These fit under the chassis on the drivers side next to the fuel tank.

If you have a stock rear heater on the passenger van this box will not fit.

BATTERY BOXES are Powder Coated!

This box holds four Group 27 Batteries. Inside box dimension is 31 5/8" x 12 1/4" with 12" head room. Please check the battery dimension to verify fit.

Batteries not included.

If you have questions about this product you can call Hein at 541-490-5098 or text him.

Van owner and/or installer assumes all risk associated with roof top mounted items and/or components. Van owner and/or installer recognizes and agrees that this product, and each of its component parts, is sold ?as is? and that seller makes no representation or warranty of merchantability that the product is fit for any particular purpose.

Arctic Tern Spoiler Adapter

$135.30

Description

Patent pending adapter matches the contour of the OEM roof so an Artic Tern Spoiler mounts to a flat surface. The adapter is 37" long x 4" wide. Prevents distorting the roof sheet metal or spoiler. The Adapters are CNC machined out of UV and fire resistant expanded PVC. Use Sikaflex 221 or 3m window weld to adhere it to the roof. We recommend that you seal the adapter after it is installed with a membrane sealant such as Dicor.

Artic Tern Spoiler is not included. We may reach out for additional information about the positioning of the adapter.

DISCLAIMER: Van owner and/or installer assumes all risk associated with roof top mounted items and/or components. Van owner and/or installer recognizes and agrees that this product, and each of its component parts, is sold “as is” and that seller makes no representation or warranty of merchantability that the product is fit for any particular purpose.

Roof Adapter for Maxxair Mini Vent Non Powered 00-03750 or 00-03700

Roof Adapter for Maxxair Mini Vent Non Powered 00-03750 or 00-03700

$84.55

Description

Pair with our Insulated Vent Fan Cover and Maxxair Mini Vent Non Powered

This fits a 14" x 14" opening. The adapters in the listing are centered on the roof line. If you need an offset adapter please fill out our form.

Click here for our custom adapter inquiry form.

Patent Pending adapter matches the contour of the OEM roof so a standard RV style vent mounts to a flat surface. Prevents distorting the roof sheet metal or vent flange and can be used as an aid for locating the fan. They are CNC machined out of UV and fire resistant expanded PVC. The fan mounts to the outside adapter. Fan adapters works with the Maxxair Mini Vent Non Powered Fan.

We make adapters to fit air conditioners and adapters for offset locations. Please contact us so we can verify size and location.

Roof Vent Adapter Install Tips

We recommend Sikaflex 221. Locate and cut the 14 x 14 hole. You can use the adapter as a guide to mark the hole. Stay clear of roof support beams.

Make a tape line 1/4" beyond the adapter perimeter.
De-gloss the area with a Scotch-brite pad. No need to scuff, just dull the paint. Clean with isopropyl alcohol and let dry thoroughly. Blow dryer if it's wet and/or cold out.

Apply three 1/8" beads of the Sikaflex on the face of the adapter. Then, press the adapter down onto the roof until the adhesive oozes out the sides. It's not necessary to clamp. If you do, use several lightly set clamps and spread out the clamp force over the whole surface area.

Using the adhesive that oozes out, make a fillet around the adapter with a double gloved finger. Pull the tape within 15 minutes. Cure is fast on outside. Let cure overnight and then proceed with the fan install.

If you purchased our Interior Framing Strips, using the hole that you cut locate where the transverse strips need to be placed on the longitudinal strips. Assemble the interior frame with the 2" screws provided. Once the frame is assembled it will be glued to the interior side of the roof using Sikaflex 221. If the strips ordered are not bay specific, then you may need to cut them to the length of the panel you are installing it in.

We recommend using butyl tape for the fan install. Cover the fan flange with 1" wide tape. Place the flange onto the adapter and press down. Then drill pilot holes through the adapter and into the van roof. You may need the 4 longer screws provided for the corners. Tighten all screws very lightly against the fan flange. Some butyl will ooze out which you can trim off.

Coat the fan flange, adapter and onto the roof about 1/2" with self-leveling Dicor or brush-on Flexseal. Some sealants will melt the fan plastic so you might try it on a portion of the interior bezel first. You will cut a lot of that piece off.

Good idea to check the integrity and reapply the sealant every so often.

**Please note, if you purchased butyl tape with this order and the butyl tape is stuck to the plastic, place it in the freezer for 15 or 20 min. It will release, then let it return to room temperature.

If you have questions about this product you can call Hein at 541-49O-5O98

Disclaimer

Van owner and/or installer assumes all risk associated with roof top mounted items and/or components. Van owner and/or installer recognizes and agrees that this product, and each of its component parts, is sold “as is” and that seller makes no representation or warranty of merchantability that the product is fit for any particular purpose.

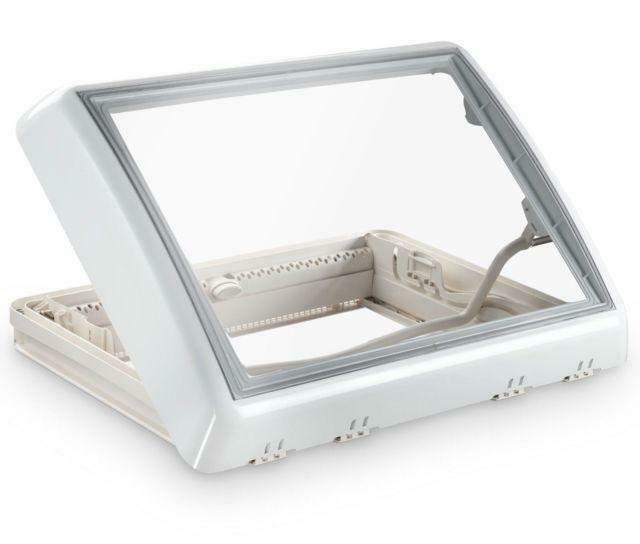

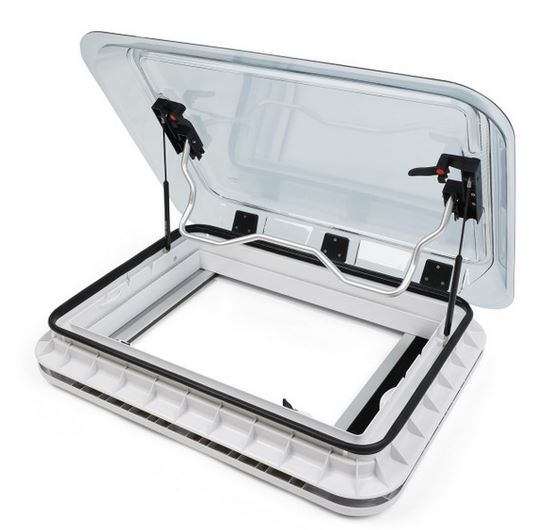

Marine Hatch Adapter for NCV3 or VS30 Sprinter

Marine Hatch Adapter for NCV3 or VS30 Sprinter

$180.00

Description

Patent Pending adapter matches the contour of the OEM roof so a hatch mounts to a flat surface. Prevents distorting the roof sheet metal and can be used as an aid for locating the hatch. They are CNC machined out of UV and fire resistant expanded PVC.

The positions we have listed are determined by measuring from the center of the plug to the back edge of the hole you will cut (find the photo in the main photos). Please do not cut the hole before you have the adapter.

If you see that the one you would like to order is unavailable it is because we have not made it for that particular position. Please email Kim to order it. kim@diyvan.com.

We can also make other adapters for other hatches and positions. If you do not see one listed please contact Kim or message us. 541-49O-4292

Adapter Install procedure: We recommend Sikaflex 221 or 3m Window-weld adhesive. Locate and cut the hole. You can use the adapter as a guide to mark the hole. Stay clear of roof supports, obviously. Make a tape line 1/4" beyond the adapter perimeter. De-gloss the area with a Scotch- brite pad. No need to scuff. Just dull the paint. Clean with isopropyl alcohol and let dry thoroughly. Blow dryer if it's wet and/or cold out. Apply a good amount of the Window-weld on the face of the adapter. Then press the adapter down onto the roof until the adhesive oozes out the sides. It's not necessary to clamp. If you do, use a lot of lightly set clamps and spread out the clamp force over the whole surface area. Using the adhesive that oozes out, make a fillet around the adapter with a double gloved finger. Pull the tape within 15 minutes. Cure is fast on outside. Let cure overnight and then proceed with the hatch install per the hatch instruction. Seal the adapter and onto the roof about 1/2" with brush on bed-liner or Flexseal from the TV guy works well. Good idea to check the integrity and reapply the sealant every so often. Dicor self leveling sealant also works but looks a little messy.

Hatch is not included.

DISCLAIMER

Van owner and/or installer assumes all risk associated with roof top mounted items and/or components. Van owner and/or installer recognizes and agrees that this product, and each of its component parts, is sold “as is” and that seller makes no representation or warranty of merchantability that the product is fit for any particular purpose.
