T1N Sprinter Products
Insulate RV vent cover attached with magnets. Ripstop nylon facing with insulated core. Sewn in magnets keep cover firmly attached to interior bezel of the vent. Magnets and superglue included.
This fits the 14 x 14" Maxxair Fans.
MAGNET WARNING
Neodymium magnets are strong and can pinch skin. They may interfere with medical devices.
DO NOT LET CHILDREN PLAY WITH MAGNETS.
The magnets are brittle and can break or chip easily. Sliding magnets off the stack works best.
Broken magnets can still be used but we also include 2 extra magnets.
Keep magnets away from ferrous metals or they will jump to it.
Installation instructions:
1. Remove vent bezel by removing 4 screws holding it to ceiling.
2. Place vent cover on flat work surface making sure side labeled UP is visible and sewn on tab will be facing forward when back in vehicle.
This is very Important due to magnet polarity.
3. Place and align vent bezel on top of cover.
4. Distribute 12 magnets on back of bezel flange. The 4 round magnets are placed in the middle 2 spots on each side. They will snap to the locations of the magnets in the cover. See listing photo for location of magnets.
5. Make sure the cover stays aligned with the bezel.
6. Pick up each magnet and place a drop of glue on the bezel.
Then let magnet find it's place again. Do this for each of the 12 magnets.
7. Let glue set completely. Takes a few minutes.
8. Re-attach bezel to ceiling with screws removed in step 1.
9. Cover will now snap onto it and be held by magnets.
10. Front panel with tab can be folded over to allow partial 1/3 opening.
Please call Hein for assistance. 541-49O-5O98
Pair with our Insulated Vent Fan Cover and Maxxfan Deluxe 7500K or 7000K Electric Lid Opening
Click here for our custom adapter inquiry form.
Fits 14" x 14" opening. If you are ordering an Air Conditioner adapter you must call to verify position and model of AC.

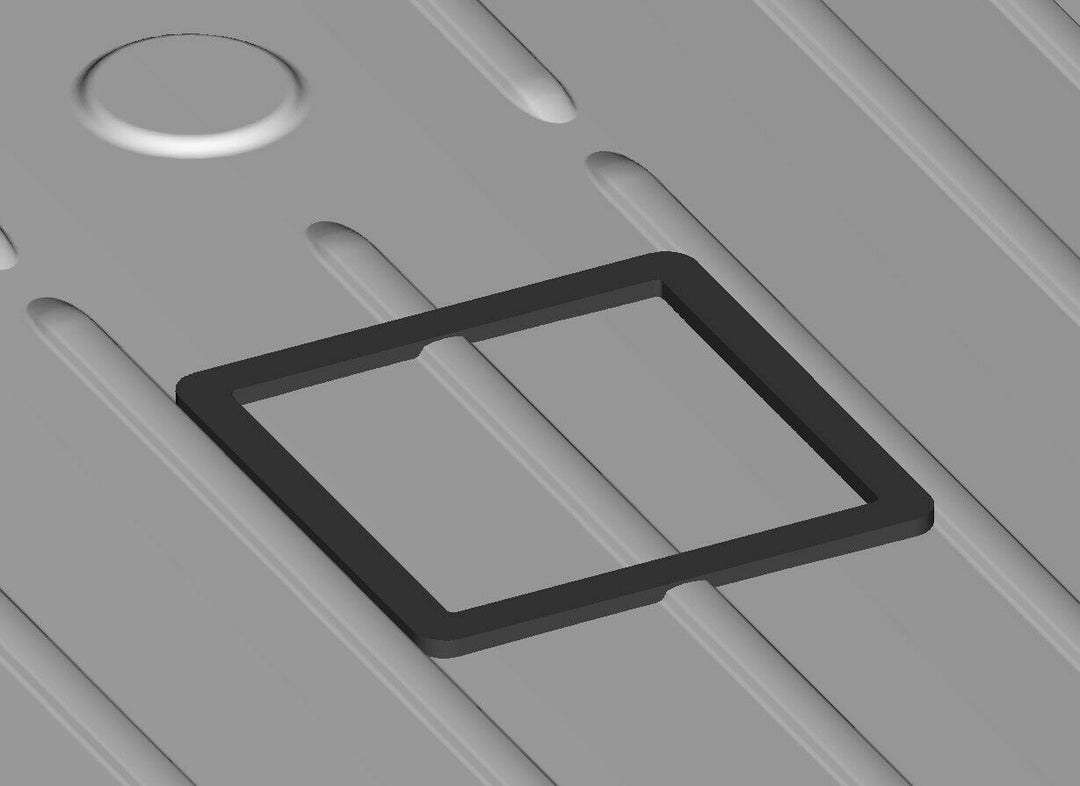

T1N All Rib fits where the Rib runs through the center. The One Rib would land on a flat area on one end and a center rib on other end. Sprinter Model from 1994 to 2006
Patent Pending adapter matches the contour of the OEM roof so a standard RV style vent mounts to a flat surface. Prevents distorting the roof sheet metal or vent flange and can be used as an aid for locating the fan. They are CNC machined out of UV and fire resistant expanded PVC. The fan mounts to the outside adapter. Fan adapters work with the Maxxfan Deluxe series and the Fan-tastic Vent fans. The adapter fits both high and low roofs.
Longer screws than came with the vent fan may be needed.
The framing strips are expanded PVC and bonded to the roof with a thick bead of Windoweld. They are more flexible than wood and plenty strong to support the vent and keep it from jiggling. We double them up when installing roof top air conditioners. They are essential if the span between the OEM roof beams is more than 18". They also provide a backing for the screws that hold up the vent interior bezel. They should be placed 1/4" away from the edge of the hole so the screws for the vent go into the strips. They are a generic size and will need to be cut to length. These strips are not contoured to the van corrugations.
The vent adapter outside dimension is 16 3/4 X 16 3/4. If you are using a Maxxair vent our adapter fits the Maxxfan Deluxe series, other Maxxair vents have a wider flange and or opening. You will need a wider adapter. Please call.
*****If you order the framing strips they will come in a separate box.
*****The option with butyl tape includes 64" of butyl tape. If the butyl tape is stuck to the plastic, put it in the freezer for 30 minutes. It will release, then let the butyl tape return to room temperature.
Install procedure:
We recommend 3m Window-weld or Sikaflex 221 adhesive. Locate and cut the 14 x 14 hole. You can use the adapter as a guide to mark the hole. Stay clear of roof supports, obviously. Make a tape line 1/4" beyond the adapter perimeter. De-gloss the area with a Scotch- brite pad. No need to scuff. Just dull the paint. Clean with isopropyl alcohol and let dry thoroughly. Blow dryer if it's wet and/or cold out. Apply three 1/8" beads of the Window-weld on the face of the adapter. Then press the adapter down onto the roof until the adhesive oozes out the sides. It's not necessary to clamp. If you do, use a lot of lightly set clamps and spread out the clamp force over the whole surface area. Using the adhesive that oozes out, make a fillet around the adapter with a double gloved finger. Pull the tape within 15 minutes. Cure is fast on outside. Let cure overnight and then proceed with the fan install. We recommend using butyl tape for the fan install. Cover the fan flange with 1 1/8" wide tape. Place onto of adapter and press down. Then drill pilot holes through the adapter and into the van roof. If the screws are going to go into a roof support beam then drill a clearance hole in the beam. You only want the screw to engage the adapter and outer skin. Use a step drill to keep from plunging through the skin. You may need longer screws. Tighten them very lightly against the fan flange. Some butyl will ooze out which you can trim off. Coat the fan flange adapter and onto the roof about 1/2" with brush on bed-liner or Flexseal from the TV guy works well. Some sealants will melt the fan plastic so you might try it on a portion of the interior bezel first. You'll cut a lot of that piece off. Good idea to check the integrity and reapply the sealant every so often. Dicor self leveling sealant also works but looks a little messy.
If you have questions about this product you can call Hein at 541-49O-5O98
Van owner and/or installer assumes all risk associated with roof top mounted items and/or components. Van owner and/or installer recognizes and agrees that this product, and each of its component parts, is sold “as is” and that seller makes no representation or warranty of merchantability that the product is fit for any particular purpose.
Popular, 12 volt rooftop air conditioner from Dometic. Includes Dometic's wiring and hardware kit.
Shop our Patent Pending AC roof adapters to make the install easier.
Typically ships within 5 business days directly from our supplier and can take another 5-7 days to arrive via truck freight.
6,824 BTU.
Compact size leaves more space for solar panels and other things on your van’s roof.
Only uses 19 amps of energy in eco mode – power consumption ranges between 10 amps to 58 amps.
Recommended to be used with a battery bank of 180 amp hours or larger.
Suitable for ambient temperatures between 41 and 126 degrees Fahrenheit.
Includes remote control.
This unit is AC only, there is no “fan only” mode for recirculating air.
One year manufacturer warranty.
The opening size is 15 1/2 by 14 1/8.
Van owner and/or installer assumes all risk associated with roof top mounted items and/or components. Van owner and/or installer recognizes and agrees that this product, and each of its component parts, is sold “as is” and that seller makes no representation or warranty of merchantability that the product is fit for any particular purpose.
INSTALLATION VIDEO:
These are strips that help hold down the vent flange and more equally distribute the clamping force of the screws. Made from .090 thick aluminum and unpainted. Recommend covering screws and plates with self leveling sealant.
Strips fit the Maxxair Deluxe Fan 7500K, 7000K, 6200K and 5100K.
If you have questions about this product you can call Hein at 541-49O-5O98
Van owner and/or installer assumes all risk associated with roof top mounted items and/or components. Van owner and/or installer recognizes and agrees that this product, and each of its component parts, is sold “as is” and that seller makes no representation or warranty of merchantability that the product is fit for any particular purpose.
DISCLAIMER: Owner and/or installer assumes all risk associated with roof top mounted items and/or components. Owner and/or installer recognizes and agrees that this product, and each of its component parts, is sold as is and that seller makes no representation or warranty of merchantability that the product is fit for any particular purpose.
Van owner and/or installer assumes all risk associated with roof top mounted items and/or components. Van owner and/or installer recognizes and agrees that this product, and each of its component parts, is sold “as is” and that seller makes no representation or warranty of merchantability that the product is fit for any particular purpose.
Lemans model 02-220 motorized vent with V12 louvered interior closure 35-2540 from G & C systems in the Netherlands. Low noise 52DB(A) fan is great for vans. 12VDC 7A (80w) at highest speed of 2600rpm creates air flow of 500 ft3/min. Mounting flange is ABS and cowl is PA6 nylon. 9.125" ID hole required in roof. Flange is 12.28" OD. Mounting screws are not included. They are supplied with our adapter sold separately.
Interior closure can be either manually or electrically closed. These vents are different from typical RV vents in that the air closure is on inside. Unique design of fan surround and cowl keeps moisture out. Interior closure is 11.41" diameter and 3/4" thick.
You will need to purchase an on/off reversing switch that will be mounted separately, it also has a speed control. This is also listed separately in the drop down menu.
These vents do not include a plenum to bridge the gap (space) between inside of roof and top of ceiling panel. AC foam seal can be used to do this.
Foam seal: https://amzn.to/3DKwPJb
Weight is 4lbs 7oz.
We produce patent pending mounting adapters to fit contour of van roof. They are not included unless you select it with adapter. Please make note of van make, year and model in notes at purchase. We will contact you to verify position. Highly recommended to use our adapter to mount this vent.
Please call Hein 541 49O 5O98 if you have any questions about this product.
Van owner and/or installer assumes all risk associated with roof top mounted items and/or components. Van owner and/or installer recognizes and agrees that this product, and each of its component parts, is sold ?as is? and that seller makes no representation or warranty of merchantability that the product is fit for any particular purpose.
The RTX 2000 head unit only. Please select one of the installation kits to use with the unit.
Shop our Patent Pending AC roof adapters, seal and interior bezel to make the install easier.
The AC unit will not come with internal framing support. We highly recommend getting our framing.
Promaster rtx internal framing
IMPORTANT!! If you are ordering the DIYvan install kit please watch Hein's Video on how to install the inserts.
Compact size leaves more space for solar panels and other things on your van’s roof.
Only uses 19 amps of energy in eco mode – power consumption ranges between 10 amps to 58 amps.
Recommended to be used with a battery bank of 180 amp hours or larger.
Suitable for ambient temperatures between 41 and 126 degrees Fahrenheit.
Includes remote control.
This unit is AC only, there is no “fan only” mode for recirculating air.
One year manufacturer warranty.
The opening size is 15 1/2 by 14 1/8.
DISCLAIMER:
Van owner and/or installer assumes all risk associated with roof top mounted items and/or components. Van owner and/or installer recognizes and agrees that this product, and each of its component parts, is sold “as is” and that seller makes no representation or warranty of merchantability that the product is fit for any particular purpose.
Shop our Patent Pending AC roof adapters to make the install easier. Sprinter, Transit, Promaster.
Typically ships within 3-4 business days and can take another 5-7 days to arrive via truck freight.
The Plein-Aircon is an innovative rooftop mounted air conditioning system for RVs and vans. This Indel B rooftop-mounted AC features ground-breaking technology, that makes the air conditioning unit convenient, efficient, powerful, and reliable. The Indel B Plein provides 4100 BTU (1200W) of cooling.
With a built-in power supply, you can use the Plein-Aircon even while stopped, without having to idle the engine. Thanks to the Smart Switch built into the power supply, the Plein can be powered by both 12V DC and 115V AC power.
The cutting-edge 12V Samsung compressor works nearly silently, while using as low as 16 Amps per hour. It reliably cools and dehumidifies the air.
This air conditioning unit comes with multiple comfort features, as well. If you want to schedule the AC to turn on in the morning, or before you go to sleep, you can take advantage of the timer, which lets you schedule ON and OFF times down to the minute. Controlling the Plein-Aircon is made easy and intuitive with the included remote control. Set the temperature, blower speed, and fan mode from anywhere in your cabin.
Technical Specifications of the Indel B Plein-Aircon:
|
Input Voltage |
12V DC (115-230V AC) |
|
Maximum Power |
4100 BTU (1.2 KW) |
|
Power Consumption |
16-42 A/h |
|
Coolant Type |
R134a |
|
Fan Operating Modes |
3 speeds + auto mode |
|
Weight |
55.8 lbs (25.3 kg) |
|
External Dimensions |
9.7 x 26.4 x 31.5 in (246.4 x 670.5 x 800 mm) |
|
Internal Dimensions |
2 x 21 x 23.6 in (50.8 x 533.4 x 600 mm) |
|
Roof cut-out Dimensions |
15.8 x 15.8 in (401 x 401 mm) |
|
Suitable Roof Thickness |
from 1.2 to 2.75 in (30.5-70 mm) |
Disclaimer: Van owner and/or installer assumes all risk associated with roof top mounted items and/or components. Van owner and/or installer recognizes and agrees that this product, and each of its component parts, is sold “as is” and that seller makes no representation or warranty of merchantability that the product is fit for any particular purpose.
Roof fan 12 Volt Winglet - This item is coming in soon.
This electric fan from G&C ensures a healthy discharge of air in your automobile.
This roof fan only extracts!
The roof fan is made of ABS. The voltage is 12 Volts and the consumption is 3 Watts.
The noise level is 32 DB. The airflow is 65 M³/H. The fan comes standard with an interior grill, shutter and saw template.
By using the 2-way switch you can turn this fan on and off, not included.
The opening in the roof is 80 mm. Construction height is 64 mm.
The fan is available in black.
* material: high quality ABS
* Function: extract air
* Opening in roof: 80 mm
* Construction height: 64 mm
* air displacement: 65 M³ per hour
Van owner and/or installer assumes all risk associated with roof top mounted items and/or components. Van owner and/or installer recognizes and agrees that this product, and each of its component parts, is sold ?as is? and that seller makes no representation or warranty of merchantability that the product is fit for any particular purpose.
