Ford Transit Products
- Delivers more acoustic absorption per unit weight vs. competitive products
- Helps customers meet mass reduction goals
- Non-woven sound absorbing fibers create a quieter vehicle environment
- Hydrophobic fibers resist moisture, mold and mildew
Add our Thinsulate Installation kit: scissors, 4ft flexible rod and high strength string. We will ship it inside your roll of Thinsulate.
Recommend using 3M 90 Adhesive Spray to apply the white fiber side to the Van skin.
Approximate amounts needed to insulate the walls, ceiling, doors and cab area:
144 WB Sprinter,148 WB Ford Transit with slider window & window in back doors = 50 linear feet
Promaster 159 WB = 60 linear feet
170 WB Sprinter = 60 linear feet
170 WB Extended Sprinter or Transit 148 Extended = 70 linear feet
Any order over 45 linear feet will ship in two rolls.
Please call if you are in Alaska or Hawaii for shipping 541-49O-4292
This adapter fits a 14" x 14" opening. Please check your fan requirements. If it is 400mm x 400mm you need to purchase an adapter from our Euro Adapter listing.
Patent Pending adapter matches the contour of the OEM roof so a standard RV style vent mounts to a flat surface. Prevents distorting the roof sheet metal or vent flange and can be used as an aid for locating the fan. They are CNC machined out of UV and fire resistant expanded PVC. The fan mounts to the outside adapter. Fan adapters work with the Maxxfan Deluxe series and the Fan-tastic Vent fans.
It is important to use our Interior Support Framing system.
Please note that not all of the Transit vans are the same in the Most Forward area and may require more adhesive if there is a gap or some sanding on the adapter.
The outside adapter will fit anywhere along the cargo part of the roof. Longer screws than came with the vent fan may be needed.
The vent adapter outside dimension is 16 3/4 X 16 3/4. If you are using a Maxxair vent our adapter fits the Maxxfan Deluxe series, other Maxxair vents have a wider flange. You will need a wider adapter. Please text Kim at 541-490-4292 for help.
The option with butyl tape includes 64" of tape. If the butyl tape is stuck to the plastic, put it in the freezer for 30 minutes. It will release, then let the butyl tape return to room temperature.

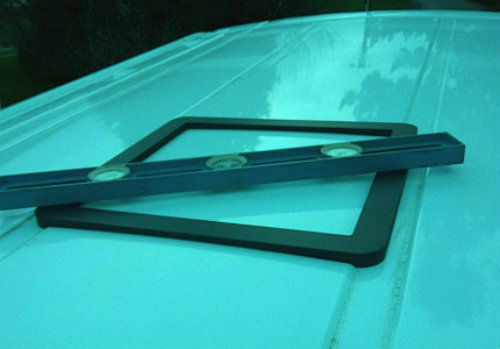

The level shown in the photo is not included.

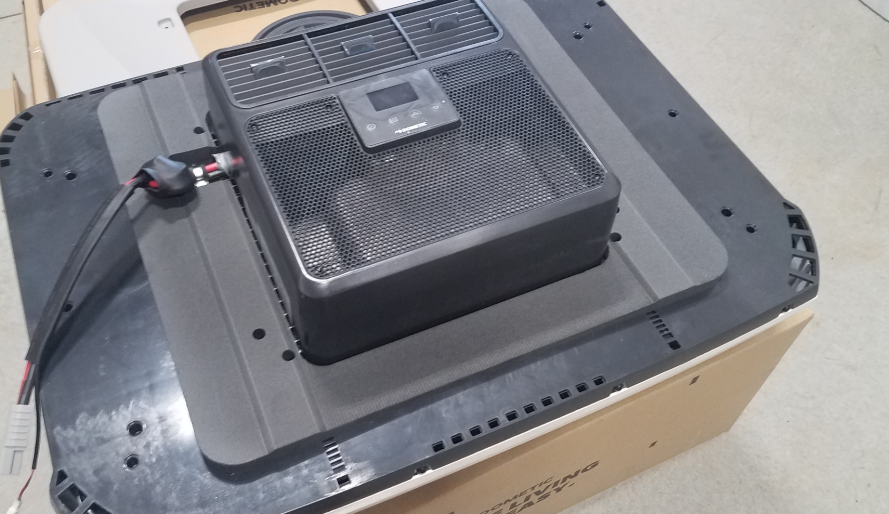

We make adapters to fit air conditioners and adapters for offset locations. Please contact us so we can verify size and location.
Roof Vent Adapter Install Tips
We recommend Sikaflex 221. Locate and cut the 14 x 14 hole. You can use the adapter as a guide to mark the hole. Stay clear of roof support beams.
Make a tape line 1/4" beyond the adapter perimeter.
De-gloss the area with a Scotch-brite pad. No need to scuff, just dull the paint. Clean with isopropyl alcohol and let dry thoroughly. Blow dryer if it's wet and/or cold out.
Apply three 1/8" beads of the Sikaflex on the face of the adapter. Then, press the adapter down onto the roof until the adhesive oozes out the sides. It's not necessary to clamp. If you do, use several lightly set clamps and spread out the clamp force over the whole surface area.
Using the adhesive that oozes out, make a fillet around the adapter with a double gloved finger. Pull the tape within 15 minutes. Cure is fast on outside. Let cure overnight and then proceed with the fan install.

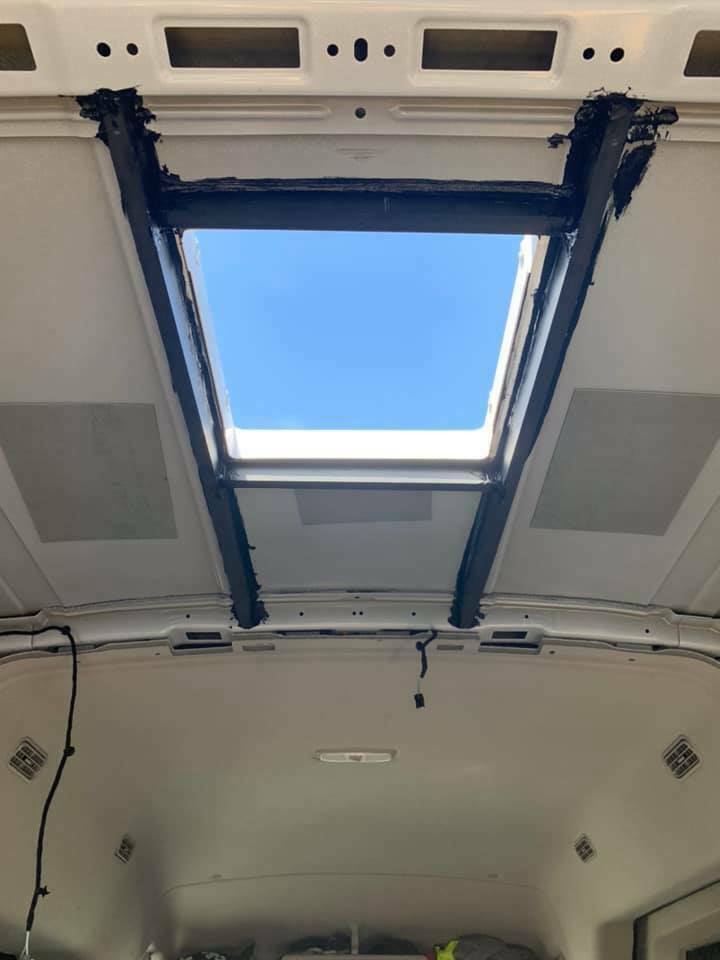

If you purchased our Interior Framing Strips, using the hole that you cut locate where the transverse strips need to be placed on the longitudinal strips. Assemble the interior frame with the 2" screws provided. Once the frame is assembled it will be glued to the interior side of the roof using Sikaflex 221. If the strips ordered are not bay specific, then you may need to cut them to the length of the panel you are installing it in.
We recommend using butyl tape for the fan install. Cover the fan flange with 1" wide tape. Place the flange onto the adapter and press down. Then drill pilot holes through the adapter and into the van roof. You may need the 4 longer screws provided for the corners. Tighten all screws very lightly against the fan flange. Some butyl will ooze out which you can trim off.
Coat the fan flange, adapter and onto the roof about 1/2" with self-leveling Dicor or brush-on Flexseal. Some sealants will melt the fan plastic so you might try it on a portion of the interior bezel first. You will cut a lot of that piece off.
Good idea to check the integrity and reapply the sealant every so often.
**Please note, if you purchased butyl tape with this order and the butyl tape is stuck to the plastic, place it in the freezer for 15 or 20 min. It will release, then let it return to room temperature.
Disclaimer: Van owner and/or installer assumes all risk associated with roof top mounted items and/or components. Van owner and/or installer recognizes and agrees that this product, and each of its component parts, is sold “as is” and that seller makes no representation or warranty of merchantability that the product is fit for any particular purpose.

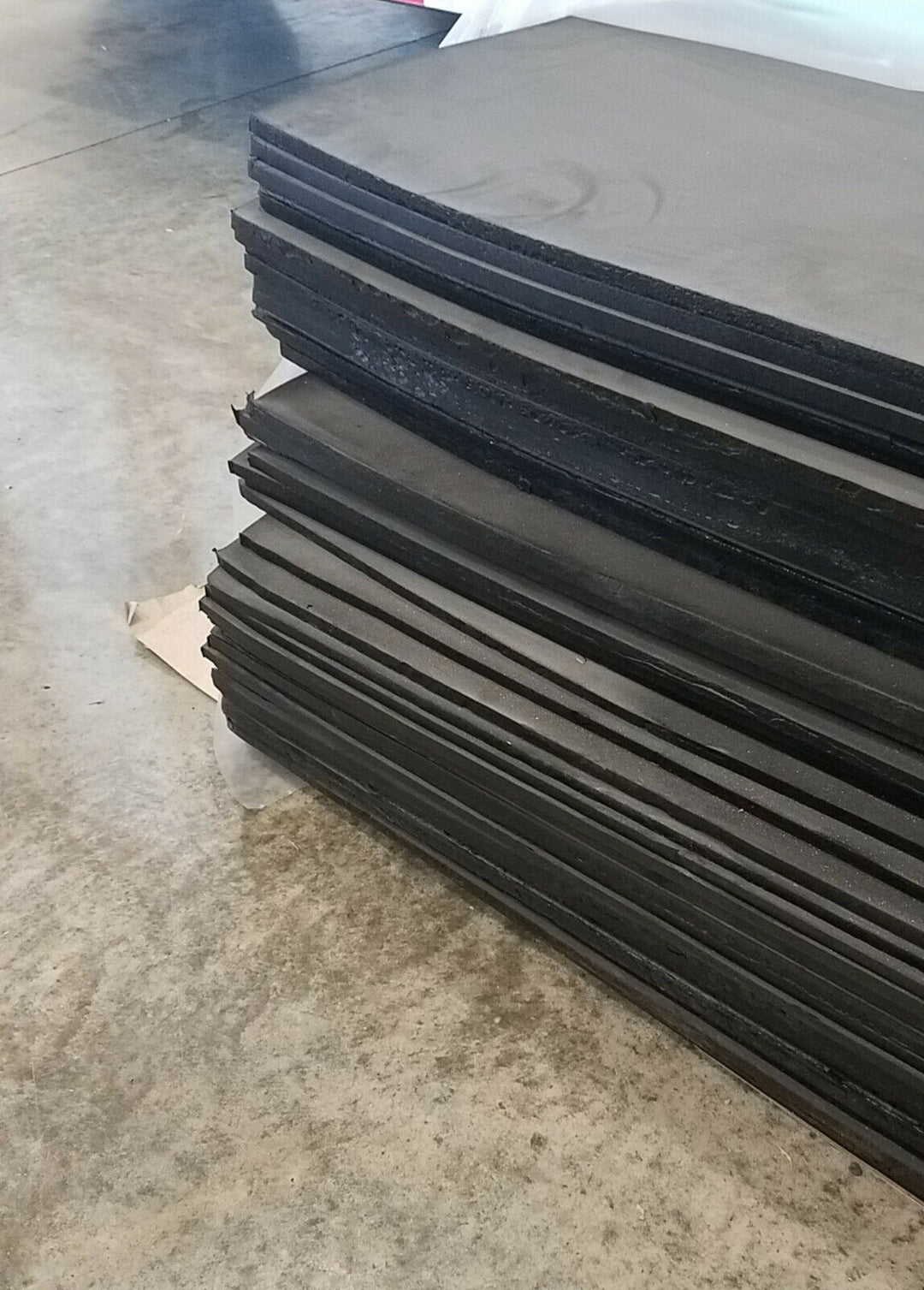

Minicell Foam Insulation for Van floors. 2 lb density. Minicell is fire retardant, UV stable, hydrophobic and offers sound deadening for your application.
The sheets for filling corrugations should be cut into strips and glued down with 3M 90 spray or contact glue.
If you have questions about this product you can call Hein at 541-49O-5O98
***Not Compatible with Power Seats***
Amazing Auto swivels attach to the Driver and Passenger seat base to allow the seats to spin and latch into different positions.
- 1-1/2 inch tall
- Heavy Duty design
- Offset design allows for seat to spin without opening door
- These are not the cheap AliExpress seat swivels
Installation Video: https://www.sprinterswivel.com/index.php?route=information/information&information_id=9
All Amazing Auto swivels come with the TRUE U.S. DOT FMVSS 207 test report.
U.S. Patent Pending: 297.37.385, 297.34.122
Past DOT FMVSS 207
Sprinter years 2007-2024 D 001 and P 002, these will also work on Electric Seats
Promaster years 2014-2024 D 005 and P006
Transit years 2014-2024 D 003 and P 004
These above are all: 18.3in (465mm) x 18.3in (465mm) x 1.5in (37mm)
Chevy Express / GMC Savana years 1997-2024 D 007 and P 008 is 14.25in. x 13.15in x 1.75in
28lbs
If you have questions about this product you can call Hein at 541-49O-5O98
WARNING!
Failure to follow warnings below may allow rack to come loose from vehicle and cause injury or death.
- Do not exceed 40 lbs load on each tower.
- Do not extend any component more than 4" beyond forward or rearward most towers.
- Do not exceed total allowable load by vehicle manufacturer.
- Use all available attachment points on van roof.
- Do not install roof top deck or climb on rack.
- Check and tighten all hardware after 100 miles and every 500 miles there-after.
- Check overall integrity of rack every 500 miles or monthly whichever is more frequent.
If in doubt, please submit rack plans or photos for evaluation prior to final installation or use.
Van owner and/or installer assumes all risk associated with roof top mounted items and/or components. Van owner and/or installer recognizes and agrees that this product, and each of its component parts, is sold “as is” and that seller makes no representation or warranty of merchantability that the product is fit for any particular purpose.
- Delivers more acoustic absorption per unit weight vs. competitive products
- Helps customers meet mass reduction goals
- Non-woven sound absorbing fibers create a quieter vehicle environment
- Hydrophobic fibers resist moisture, mold and mildew
Please call if you are in Alaska or Hawaii for shipping 541-49O-4292
The sheets for filling corrugations should be cut into strips and glued down with 3M 90 spray or contact glue.
Product is between 4 to 8mm thick, 60" wide.
This is a nice interlining for blankets or window shades. Adding a layer of Thinsulate between your other materials will add warmth.
Recommend using 3M 90 Adhesive Spray to apply to the Van skin.
Tips for insulating: http://impact3d.com/Thinsulate_installation.html
Please call if you are in Alaska or Hawaii for shipping 541-49O-4292
- Delivers comparable or better performance to conventional constrained layer damping (CLD) materials and is less than half the weight
- Stand-off layer features low-density engineered stem web that optimizes damping performance
- Damps structure-borne noise when lighter materials such as thin-gauge steel, aluminum and composites are used, without adding significant weight
- Flexible, conformable material applies uniformly to complex shapes
- Adhesive backing improves wet out and won't delaminate even at high temperatures
- Can be installed in vertical or inverted applications
- Meets requirements of many OEMs for low interior VOCs
- Thickness of 2.9 mm allows for a wide range of installations where space is limited
We recommend using 3M 90 Adhesive Spray to apply the white fiber side to the Van skin.
We also sell 3M SM600L which is the thickest grade engineered for vehicles
Wall insert mounting panel with built in box. Each item is designed for a precise fit in the lower wall openings behind driver. Attaches by clamping against back side of chassis structure. Does not require holes in sheet metal. The outside surface is flush with the surrounding sheet metal.Material is expanded PVC that does not absorb water. Great for mounting electrical components such as inverters, charge controllers and fuse panels. Cuts easily with traditional wood working tools. Use hole saw to make gauge mounts, holes for wire/cable routing, etc. Holds screws very well and will not conduct electricity.
On the newer van models you may need to move the sensor bracket in the 2nd position.
Forward box
opening size 6.875w x 13h corner radius 1"
box size 7.125w x 13.75h x 3.25 depth
depth is from face of panel. panel is .75 thick
Middle box
opening size 10w x 13h corner radius 1"
box size 10.25w x 13.75h x 3.25 depth
depth is from face of panel. panel is .75 thick
Rear box
opening size 7.5w x 13h corner radius 1"
box size 7.125w x 13.75h x 3.25 depth
depth is from face of panel. panel is .75 thick
Please contact Hein at 541 490 5098 if you have questions.
We are honored to help you with your van build.

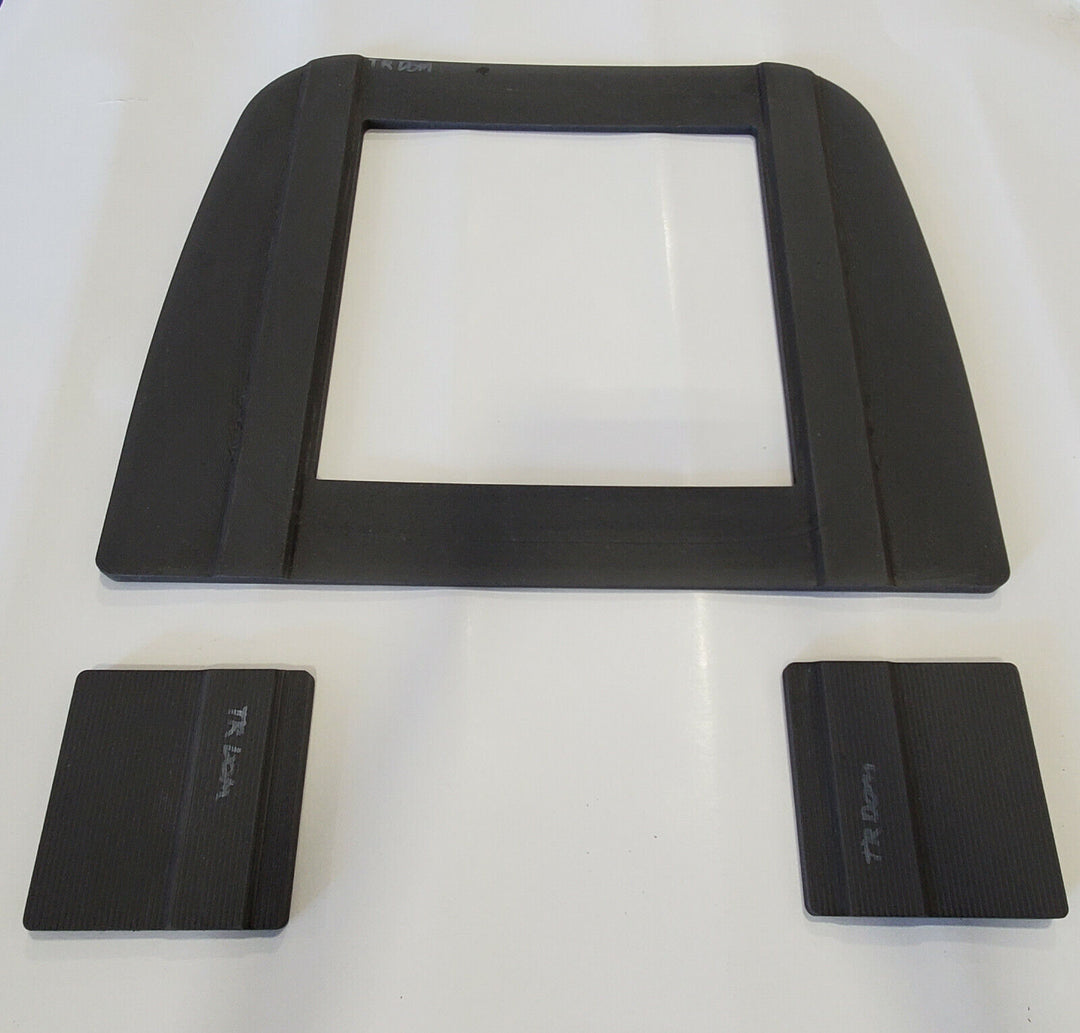

Patent pending adapter matches the contour of the OEM roof so an Artic Tern Skylight mounts to a flat surface. Perimeter of adapter matches vent cover for best performance and appearance. Prevents distorting the roof sheet metal or vent flange. Can be used as an aid for locating the skylight. Adapters are CNC machined out of UV and fire resistant expanded PVC. The vent mounts to the outside adapter. The outside adapter will fit anywhere along the center cargo area of the roof. We recommend 3M Window-weld or Sikaflex 221 adhesive for adhering the adapter to the roof. Additionally, we recommend that you seal the adapter and roof light after it is installed with a membrane sealant such as Dicor.
If you are ordering this for a Sprinter we can produce them for the NCV3 or VS30, 2007 to present.
The order will include an interior support frame.
Outside dimensions are 23 1/2" x 33"
Inside opening dimensions are 19.75" x 27.6"
Artic Tern Skylight is not included.
Photo shown is on a Promaster.
When purchasing an adapter for a van please include a note indicating where you want to place the vent so we can produce the appropriate geometry to match the roof in that location. You are also welcome to send a photo to 541 49O 5O98. Please include your name if sending photo.
If ordering for a Sprinter we commonly ask for this measurement and information about the van:
1) Please take a measurement from the center of the large plug on the rear of the van to the back edge of the hole you will cut. Photo of the plug is below.
2) Please let us know which Wheel Base you have, 144 WB, 170 Regular or 170 Extended. The RTX opening is 15 1/2" long x 14 1/8" wide.
DISCLAIMER: Van owner and/or installer assumes all risk associated with roof top mounted items and/or components. Van owner and/or installer recognizes and agrees that this product, and each of its component parts, is sold “as is” and that seller makes no representation or warranty of merchantability that the product is fit for any particular purpose.
Insulate RV vent cover attached with magnets. Ripstop nylon facing with insulated core. Sewn in magnets keep cover firmly attached to interior bezel of the vent. Magnets and superglue included.
This fits the 14 x 14" Maxxair Fans.
MAGNET WARNING
Neodymium magnets are strong and can pinch skin. They may interfere with medical devices.
DO NOT LET CHILDREN PLAY WITH MAGNETS.
The magnets are brittle and can break or chip easily. Sliding magnets off the stack works best.
Broken magnets can still be used but we also include 2 extra magnets.
Keep magnets away from ferrous metals or they will jump to it.
Installation instructions:
1. Remove vent bezel by removing 4 screws holding it to ceiling.
2. Place vent cover on flat work surface making sure side labeled UP is visible and sewn on tab will be facing forward when back in vehicle.
This is very Important due to magnet polarity.
3. Place and align vent bezel on top of cover.
4. Distribute 12 magnets on back of bezel flange. The 4 round magnets are placed in the middle 2 spots on each side. They will snap to the locations of the magnets in the cover. See listing photo for location of magnets.
5. Make sure the cover stays aligned with the bezel.
6. Pick up each magnet and place a drop of glue on the bezel.
Then let magnet find it's place again. Do this for each of the 12 magnets.
7. Let glue set completely. Takes a few minutes.
8. Re-attach bezel to ceiling with screws removed in step 1.
9. Cover will now snap onto it and be held by magnets.
10. Front panel with tab can be folded over to allow partial 1/3 opening.
Please call Hein for assistance. 541-49O-5O98
