Solar Mounting

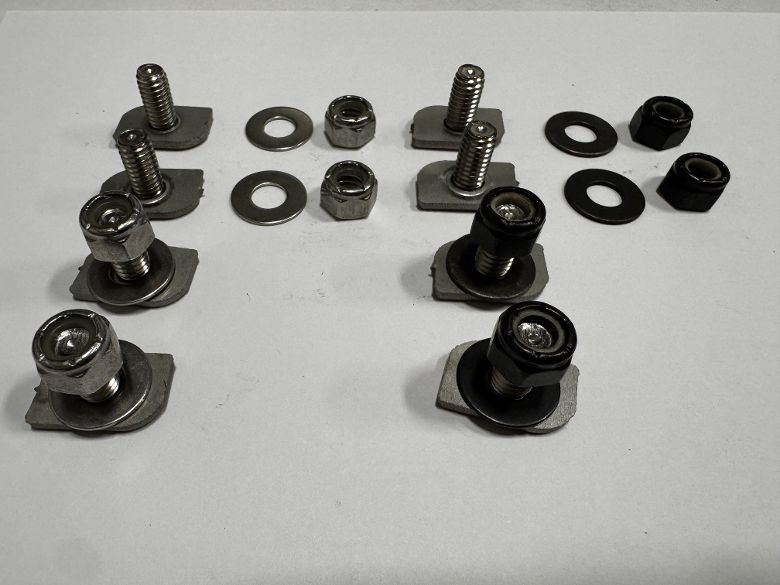

Towers come with hardware to attach to the van. Additional hardware to attach the platform may be required. The towers have rubber pads to seal the roof holes and protect the van finish. Easy to install with hand tools.

If you have questions about this product you can call Hein at 541-49O-5O98

Van owner and/or installer assumes all risk associated with roof top mounted items and/or components. Van owner and/or installer recognizes and agrees that this product, and each of its component parts, is sold ?as is? and that seller makes no representation or warranty of merchantability that the product is fit for any particular purpose.

DISCLAIMER

Failure to follow warnings below may allow rack to come loose from vehicle and cause injury

or death.

1. Do not exceed total allowable load by vehicle manufacturer.

2. Use all available attachment points on van roof.

3. Do not install roof top deck or climb on rack.

4. Check and tighten all hardware after 100 miles and every 500 miles there-after.

5. Check overall integrity of rack every 500 miles or monthly whichever is more frequent.

 If in doubt, please submit rack plans or photos for evaluation prior to final installation or use.

Van owner and/or installer assumes all risk associated with roof top mounted items and/or components. Van owner and/or installer recognizes and agrees that this product, and each of its component parts, is sold as is and that seller makes no representation or warranty of merchantability that the product is fit for any particular purpose.

Patent Pending. Made in the USA! Quantity of 1 will include 2 Tower Brackets and hardware. Cross bars sold separately.

Tower brackets for Promasters, laser cut, CNC formed, clear anodized or black anodized tower bracket kits for using with 8020 15 series crossbars to mount solar panels to OEM roof rails found on Sprinter and other vans. Included the attachments.

* Black Anodizing may fade over time due to sun exposure.

These brackets are compatible with the Fiamma Awning. The distance between our Towers is 52.5"

Crossbars can be found here:  https://www.ebay.com/itm/144323850607

Do not exceed 20 lbs load per tower. Not intended as a rack for hauling large or heavy items. Do not exceed total roof top weight allowed by vehicle manufacturer. Please contact us with any questions about how to use this product.

select 'square' for use with 15 series square profiles

select 'rounded' for use with 1517 rounded profile

select 'extended' if the crossbar needs to extend beyond the tower. Compatible with both rounded and square profiles. This version does not cap the end of the crossbar so separate caps can be purchased with the 80/20. Maximum extension beyond tower not to exceed 6". Not suitable for mounting heavy awnings not otherwise supported.

Please take a look at our support tabs for mounting solar panels to the cross bars, https://www.ebay.com/itm/141878685652

DISCLAIMER
Failure to follow warnings below may allow rack to
come loose from vehicle and cause injury or death.
If in doubt, please submit rack plans or photos for
evaluation prior to final installation or use.

Van owner and/or installer assumes all risk associated
with roof top mounted items and/or components.
Van owner and/or installer recognizes and agrees that
this product, and each of its component parts, is sold
“as is” and that seller makes no representation or
warranty of merchantability that the product is fit for
any particular purpose.

IMPORTANT SAFETY WARNINGS:
* Do not exceed 20 lbs load on each tower.
* Tower spacing down length of roof not to exceed 30"
* Do not allow solar panels to overhang side of roof.
* Do not extend any component more than 4" beyond forward
  or rearward most towers.
* Do not extend crossbar more than 4" beyond slot in tower
* Do not exceed total allowable load by vehicle manufacturer.
* Use all available attachment points on van roof.
* Do not install roof top deck or climb on rack.
* Check and tighten all hardware after 100 miles
  and every 500 miles there-after.
* Check overall integrity of rack every 500 miles
  or monthly whichever is more frequent.

Assembly:
* Refer to diagram.
* Use all parts and hardware.
* Tab that bridges or passes through slot in tower
  must be used. DO NOT OMIT TAB
* Torque 5/16-18 hardware to 8 ft-lbs
* Use Loctite blue on any connection without toplock nut.

Sold as a pair.

Tower Brackets are NOT included.

Please call Hein for technical support. 54I 49O 5O98

Disclaimer

Van owner and/or installer assumes all risk associated with roof top mounted items and/or components. Van owner and/or installer recognizes and agrees that this product, and each of its component parts, is sold “as is” and that seller makes no representation or warranty of merchantability that the product is fit for any particular purpose.
